E-Force® Brushless Micromotor Set with 40,000rpm Handpiece 3/32” collet
E-Force® Brushless Micromotor Set with 40,000rpm Handpiece 3/32” collet
In Stock, 2 left!
New
Product Specifications
Product Specifications
Product Description

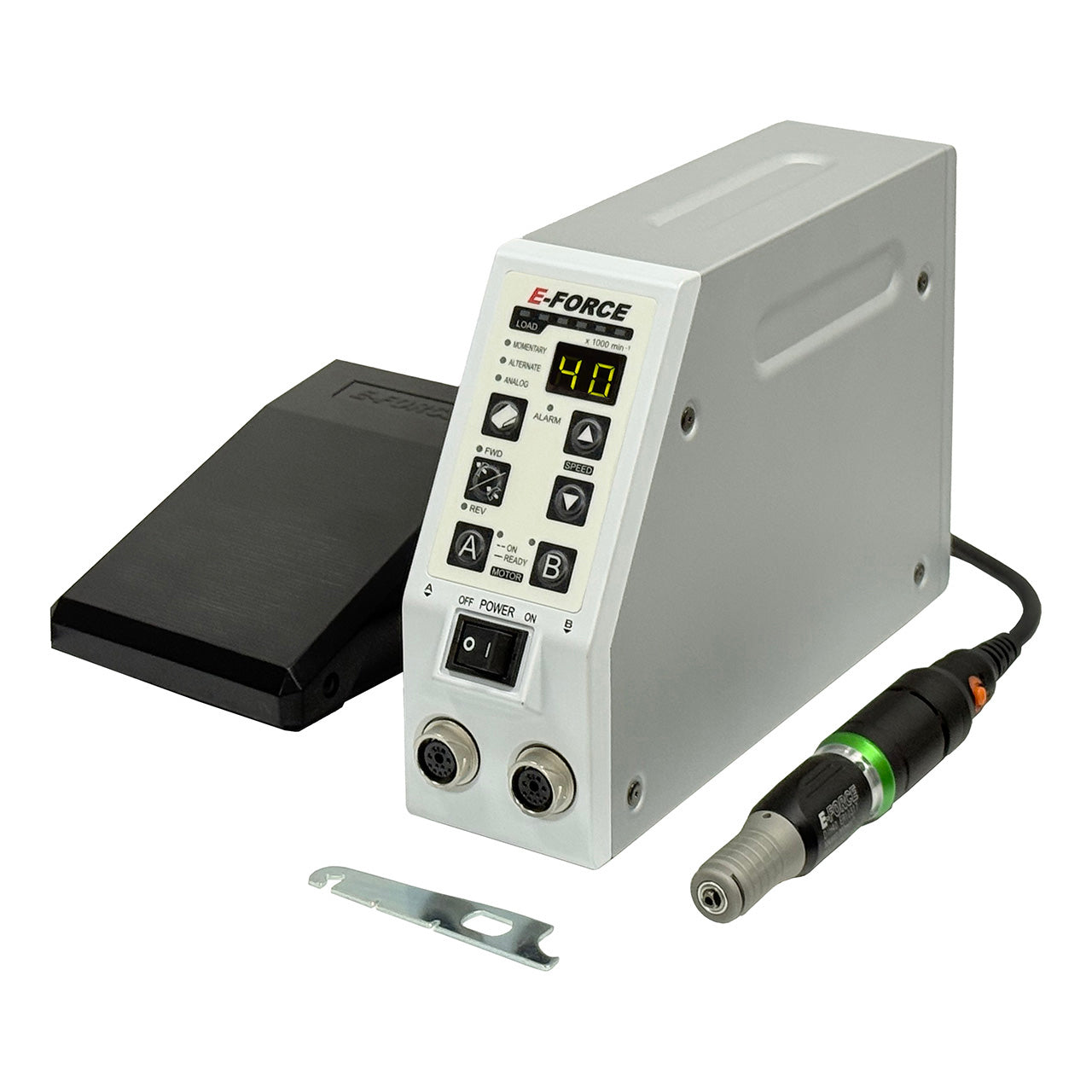

E-Force® is a terrific choice for engravers and jewelers as well as any artist who needs micro-grinding technology. This game-changing micromotor system includes the robust, yet space saving controller, a 40,000rpm brushless micromotor handpiece along with a useful variable speed foot pedal.
- Slim space saving controller
- Brushless motors no carbon brushes to be replaced
- Ceramic bearings provide longer life, less repair
The E-Force® controller is sleek and simplistic by design. The small footprint leaves more space at the workbench, and it is easy to carry and move around the shop. Dual input ports connect up to 2 handpieces (only one will operate at a time). The digital display shows the RPM speed in 1,000 RPM increments, and the load meter illuminates when the operator is using too much force.
The E-Force® solid 40,000rpm adjustable speed handpiece is one of the lightest and smallest handpieces in the E-Force® Line making it well suited for long duration. The motor casing has several air slots and a cooling fan that allows heat to escape, which helps prevent overheating. At the base of the brushless motor is a multi-function switch that will turn the motor on or off and adjust the variable speed of the brushless motor. Comes with a 3/32” collet installed. 1/8" and 3mm collets are available separately.
Handpiece Specifications
Max speed: 40,000 rpm
Max output: 84W
Max torque:40.cNm
Weight: 172g which is only 6 ounces (excluding motor cord)
Motor Cord Length:1.5m (approximately 5 feet)
The E-Force® foot pedal serves as a variable speed controller, limited only by the top RPM for the handpiece in use. If desired, can be modified into a simple ON/OFF version.
