Product Description

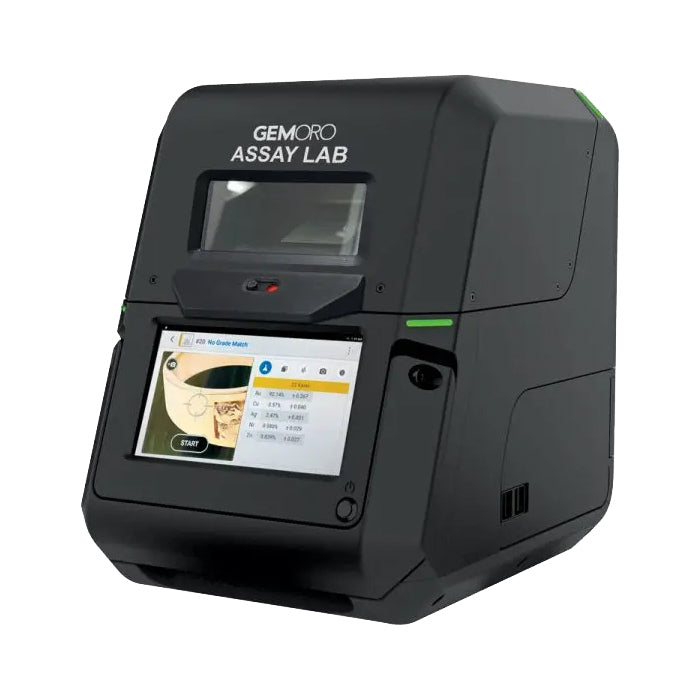

The GEMORO ASSAY LAB is the perfect solution for analyzing precious metals—ideal for jewelers, pawn shops, jewelry manufacturers, appraisers, and precious metal scrap buyers.
This portable desktop XRF Energy Dispersive Spectrometer features a premium SDD detector (the most advanced and accurate type available). Its compact, sleek, ergonomic design fits comfortably on a desk or counter, with a bright full-color touchscreen display.
Enjoy fast, efficient, safe, non-destructive testing with surface results comparable to fire assay—without damaging jewelry. Quickly identify and measure elements in jewelry, coins, watches, and more.
Benefits
- Super-fast, non-destructive, and precise
- Intuitive interface with autonomous or PC operation
- Measures 24 different elements with advanced plating detection
- Easily identifies unique stainless steel in Rolex watch cases and bands
- Compact, sleek, ergonomic design fits on desk, bench, or counter
- Full-view leaded glass window and large 7” touchscreen full-color display
- Powered by AC or fully portable battery (includes built-in handle)
Features
- Superior SDD detector
- Rechargeable twin Li-ion battery (6+ hours)
- Built-in Wi-Fi, Bluetooth, and GPS
- Fully shielded lid with safety interlock protection
- Collimators
- Fully cloud-enabled
- Two CCD cameras
- Embedded computer
| Specification | Details |
|---|---|
| Testing Area | 3mm Diameter |
| Measuring Depth | Up to 10-20 microns |
| Tube Life Expectancy | 8,000 Hours or 2.8M ~10 Second Tests |
| Tube Specification | 40kV, 200µA Rh Anode, 1 Beam |
| Detector | 7 mm² SDD, 170 eV resolution FWHM at 5.95 Mn K-alpha line |
| Camera | Built-in high-resolution camera for sample viewing + macro-camera for photo-documentation or barcode reading |
| Battery Life | 6 hours (includes AC adapter, charger, and 1 rechargeable battery) |
| Product Weight | 19 lbs. |
| Product Dimensions | 10.10 x 13.80 x 13.40 in |
| Data Transfer | Wi-Fi, Bluetooth, USB connectivity |
| Calibration Check | Manually applied 316 stainless steel shutter (included) for on-site calibration—no need to send to GEMORO |
| Environmental Temp. Range | 10°F to 130°F at 25% duty cycle |
| Security | Password-protected (user level and admin settings) |
| Warranty | 3-Year Warranty |
Please Note
X-ray Fluorescence (XRF) is a non-destructive method to determine elemental concentrations on the surface of materials. Not all XRF analyzers have the same capabilities.
Every state has specific requirements for owning an X-ray emitting machine. Register your XRF device via your state's Department of Health website.
Detectable Elements: Titanium (Ti), Vanadium (V), Chromium (Cr), Manganese (Mn), Iron (Fe), Cobalt (Co), Nickel (Ni), Copper (Cu), Zinc (Zn), Tungsten (W), Iridium (Ir), Platinum (Pt), Gold (Au), Lead (Pb), Bismuth (Bi), Zirconium (Zr), Molybdenum (Mo), Ruthenium (Ru), Rhodium (Rh), Palladium (Pd), Silver (Ag), Cadmium (Cd), Tin (Sn), Antimony (Sb).
Does not measure Aluminum (Al), Magnesium (Mg), or Silicon (Si).
XRF Spectrometry Data Method
GEMORO analyzers use superior Fundamental Parameters (FP) for quantitative analysis—no standards or calibration curves needed. This allows immediate use and identification of unknown materials via stored libraries.
How XRF Works
XRF strikes the sample with an X-ray beam, causing elements to fluoresce characteristic X-rays. The detector measures energy and intensity to determine elemental presence and quantity.
At the atomic level, primary X-rays eject inner orbital electrons, creating vacancies. Outer electrons fill these, releasing fluorescent X-rays unique to each element (K, L, M lines in EDXRF).
