Sisma LM-DT 260 Nanospot Laser Welder
Sisma LM-DT 260 Nanospot Laser Welder
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Brochure
Product Description

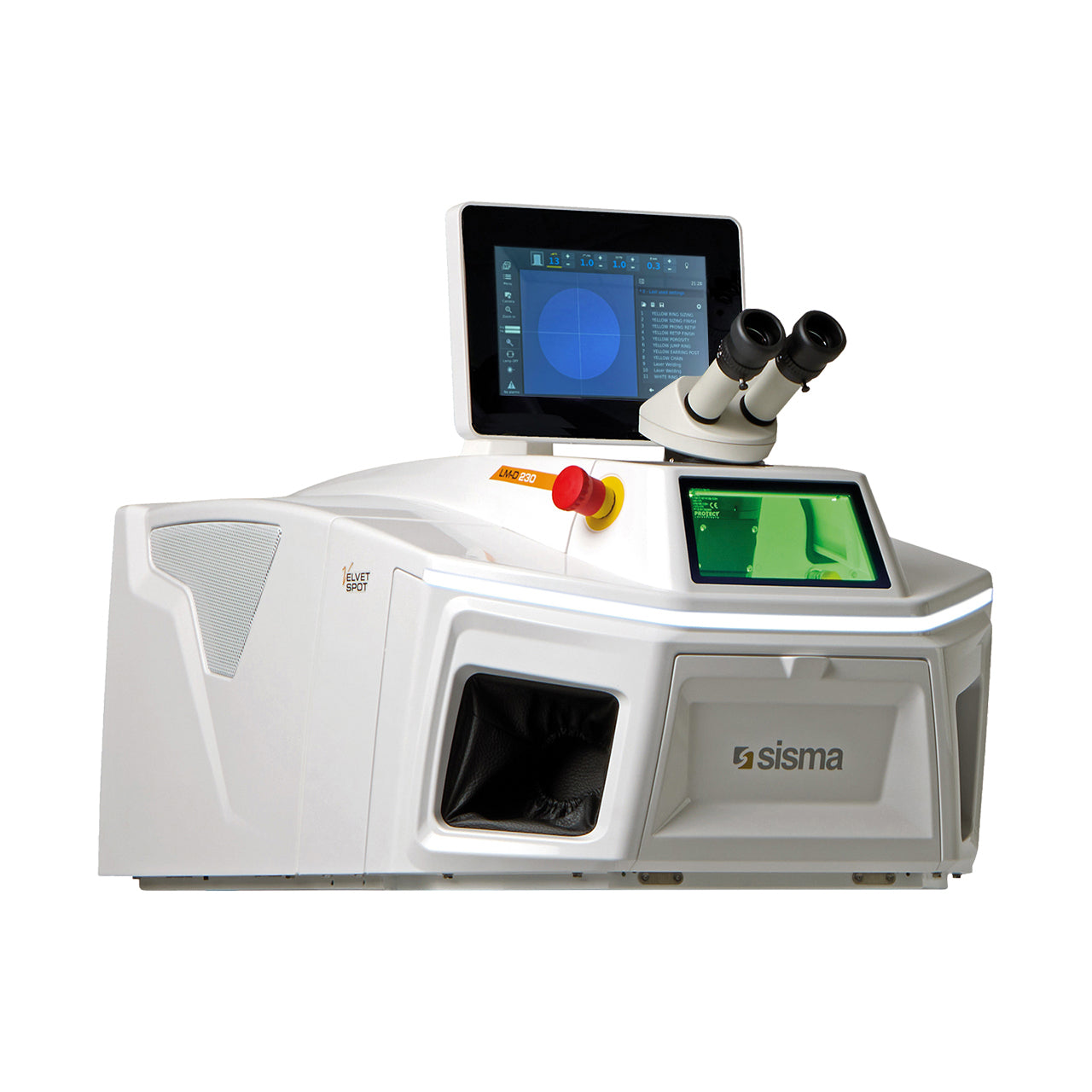

Desktop laser welding system equipped with a wide front door, arm port access, a Lecia stereo 10X microscope with optical protection, and a 10.1" HD touchscreen display. Laser welder comes with a water-air cooling system, both air and argon connections, a filter for processing vapor and reclaiming precious metals as well as a protective cloth. Average power 95 W, max pulse energy of 260 Joules, peak power 10.5 kW. Warranty 24 months or 20 million shots on the lamp, 36 months on the balance of the machine. All consumables are not included in the guarantee.
- Smart Spot
technology maintains stable energy output delivering identical welds from the
first pulse to the last
- Spot diameter with Nanospot 0.05-2 mm
- Pulse duration 0.5-25 ms
- Leica Stereo 10X microscope with optical protection (optional 16X and 25X
lenses are also available)
- Touchscreen 10.1” HD

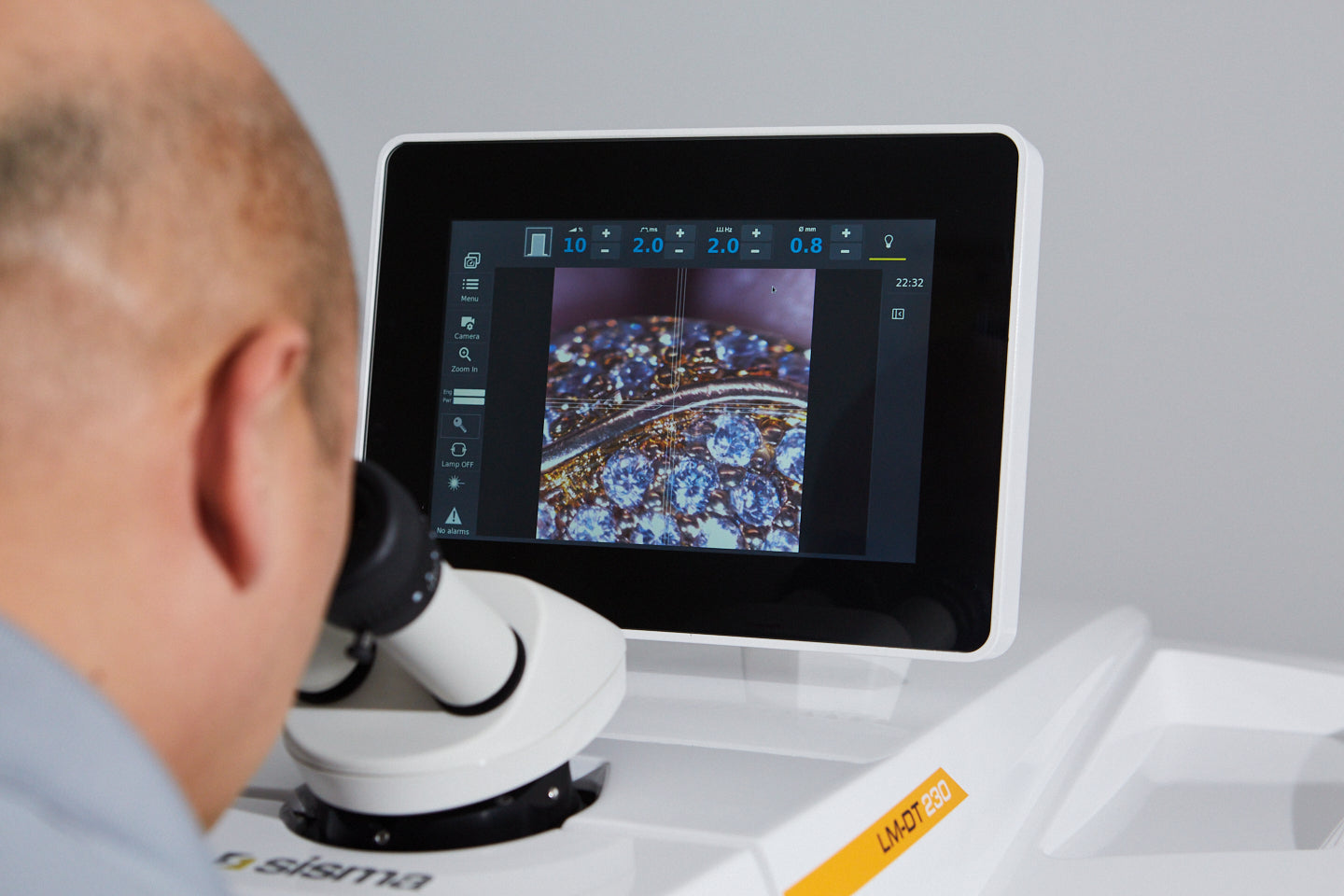

- Integrated high resolution coaxial camera with patented Syncro View system which displays on the screen exactly what you see through the scope
- LED bar for optical indication of the machine operating status
- Adjustable white LED light allows easy modifications to improve clarity or
reduce glare
- Quick setting of welding parameters by means of the multifunctional mouse - can
save up to 250 for future use
- USB
Connection / Ethernet / TeamViewer included to simplify and allow remote
diagnostic capability
The laser welder comes complete with:
- A water-air cooling system
- Both air and argon connections
- A filter for dust recovery
- A protective cloth
Why Jewelers Choose Sisma
Founded in Italy in 1961, Sisma is a global leader in high-precision laser machinery. Sisma Welders are trusted by jewelers and manufacturers worldwide thanks to their precision, reliability, and innovation. With decades of expertise and a focus on the jewelry sector, Sisma continues to pioneer laser technology with dozens of international patents. Today, Sisma machines are used around the world, setting the standard for precision laser welding.
