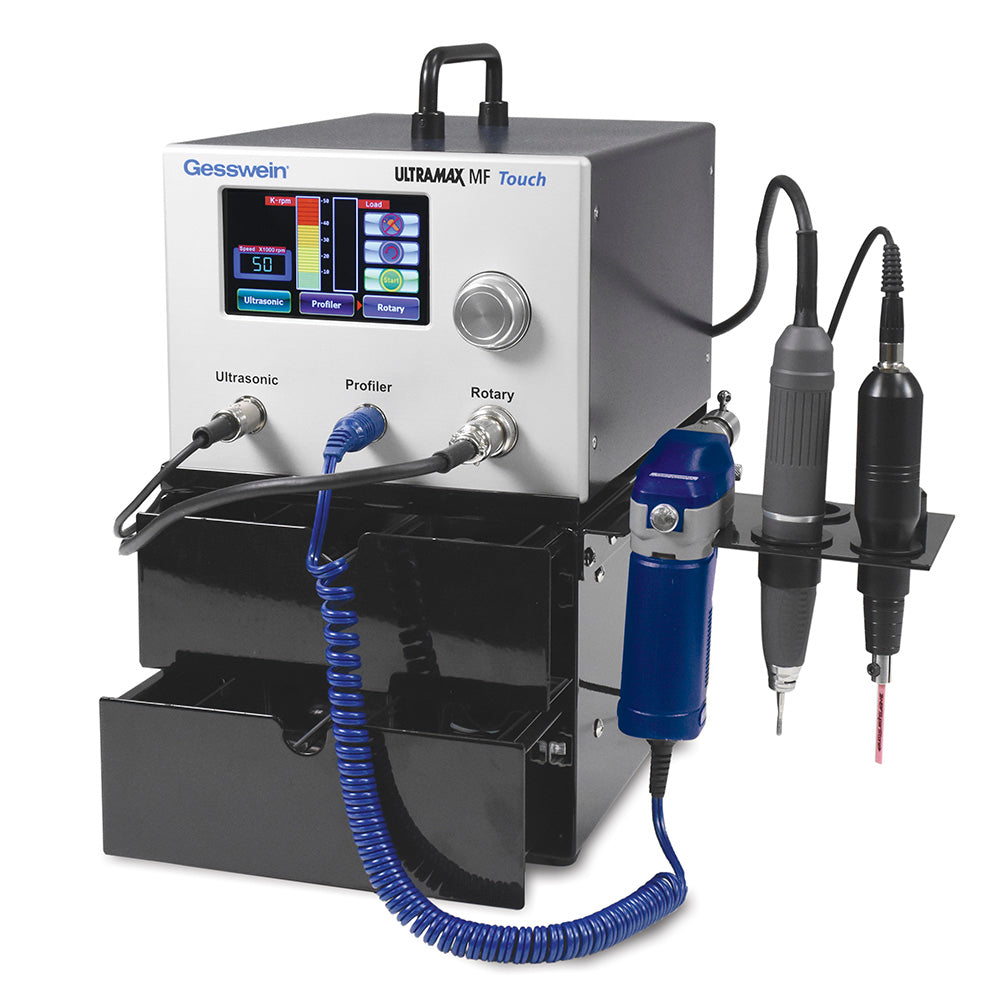

ULTRAMAX® MF Touch Complete 3-in-1 Package (Z-2X)
ULTRAMAX® MF Touch Complete 3-in-1 Package (Z-2X)
In Stock, 2 left!
Product Specifications
Product Specifications
Product Description
The Multi-Function Ultramax™ MF TOUCH gives you the versatility of ultrasonic and mechanical polishing in one!
Key Features:
- Touch screen interface - Features intuitive touch screen controls for operation management and real-time readouts
- Precision detailing - Effectively polishes slots, ribs, and other intricate surface details that are difficult to reach with conventional tools
- Superior control - Short stroke mechanism with fast reciprocation provides precise control over demanding polishing applications
- Edge-to-edge finishing - Special control functions allow polishing right up to walls and finishing to edges without compromise
- Heavy-duty material compatibility - Handles the toughest metals including tungsten carbide and titanium
- Surface versatility - Processes everything from milled surfaces to rough EDM surfaces, achieving desired finish
- Comprehensive tooling support - Compatible with all grades of finishing stones, sintered tools, resin tools, plated diamond tools, ceramic stones, and both metallic and nonmetallic lapping tools with diamond compounds
The MF TOUCH utilizes a high-efficiency microprocessor to deliver power to ultrasonic, brushless DC, and brush-type DC handpieces. Includes an ultrasonic handpiece with 36W of continuously variable power for precision reciprocating action. Also includes the Gesswein BH-60 a 230 watt, 50,000rpm brushless micromotor handpiece as well as the Z-2X reciprocating handpiece a 30V DC air-cooled motor with sealed bearings. The MF TOUCH can also operate any of the other Gesswein PowerHand rotary, side-to-side, or belt sander handpieces (all sold separately).
Our 3-1 package also includes a sturdy, powder-coated steel cabinet with 2 ample sized storage drawers and holders for all 3 included handpieces. Keeps you organized and your handpieces within easy reach.
Complete 3-in-1 Package Includes:
- MF TOUCH Controller
- MF Ultrasonic Handpiece
- BH-60 Rotary Handpiece
- Recipro Z-2X Profiler Handpiece
- 3-in-1 MF TOUCH Cabinet
- Variable speed foot rheostat
- Handpiece rest, 3mm round tool holder, 1mm & 3mm flat clamp tool holders and tool changing wrenches
Adjustable Operating Frequency: |
18-26kHz |
Stroke Amplitude: |
3-40 Microns |
Max. Power Consumption: |
300 watts |
Overload Indicator: |
Yes |
Max. Output Power: |
36W |
Output DC Rotary Tool: |
5-32V DC, Max. 180 W |
Output DC Brushless Tool: |
1,000-50,000 rpm, Max. 250 W |
|
|
Electrical: |
90-240VAC 50/60Hz |
Fuse: |
3A 20mm time-lag |
Controller Dimensions: |
6.75"W x 9.5"D x 5.5"H |
Controller Net Weight: |
5.5 lbs. |
