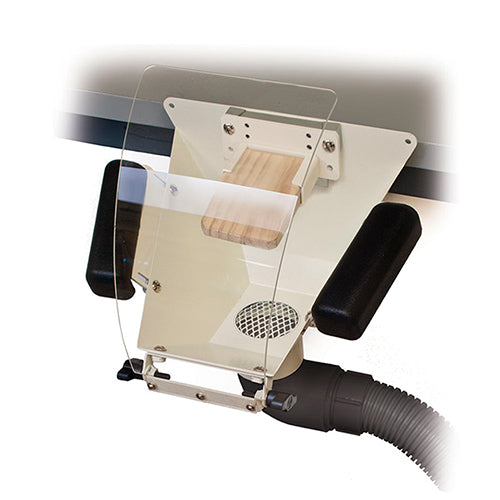

Foredom’s Fishmouth with bench pin, curved acrylic shield, and adjustable arm rests is the perfect addition to any bench for dust control and debris removal. It mounts to benches with a GRS style mounting bracket (GRS fixed mounting plate not included 856-0196, see related products below). The exhaust port accommodates a 2-1/4″ hose and comes with an elbow to position your dust collector hose in any direction.
The curved acrylic shield gives a clear view of your work and also helps to keep stray dust from flying at you. The inside of the Fishmouth has a GRS style hanging mounting bracket for the supplied Wooden Bench Pin Assembly.
| Fishmouth | |
| Width: | 9-1/2" at back, 6" at front |
| Depth: | 8-3/4" front to back |
| Height: | 9" from bottom of metal exhaust port to back |
| Curved Shield | |
| Width: | 8" at top, 5" at bottom |
| Height: | 10-1/2" |
| Fishmouth with Bench Pin Assembly | |
| Weight: | 6.4 lbs. |
| Ship Weight: | 8 lbs. |
|
Ship Dimensions: |
13.75" 13.25" 8.5" |
| Warranty | Two Year Limited Warranty (excluding shield). |
| Made In: | Taiwan |
