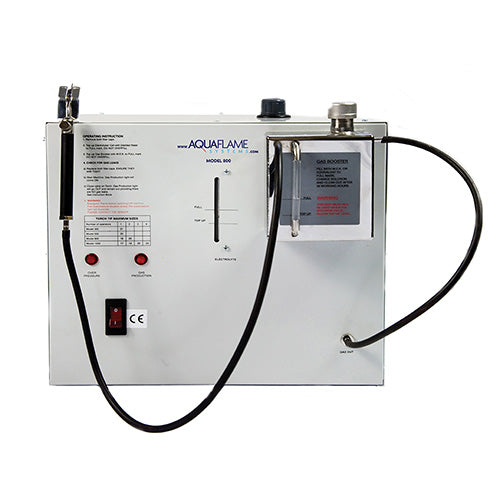

Aquaflame Soldering Torch Model 800
Aquaflame Soldering Torch Model 800
In Stock, 1 left!
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Instruction Manual
Product Description
The Aquaflame 800 is the mid-range model in the Aquaflame line. It puts out 120 L/hr of oxy-hydrogen gas and supports a second torch station — add the second operator kit (8301084, sold separately) when you need two people working at once. The broader tip range, down to #18, handles heavier soldering and brazing jobs that the 500 can't take on. Same water-based operation, no gas cylinders required.
Features
- Runs on distilled water and electrolyte solution. No gas cylinders or pressure tanks required!
- Reaches 3,300°C — handles platinum, gold, silver, and stainless steel
- Supports up to 2 simultaneous operators (second operator kit sold separately)
- 7 tip sizes (#18–#24, 0.90–0.31mm bore)
- Built-in flashback arrestor for continuous-use safety
- 2-year warranty
Required Chemicals
- Electrolyte: KOH dry crystals, Item 8300044 (600g). One bottle per fill.
- Booster fluid: MEK, Item 8300042 (1 qt).
- Aquaflame systems are approved for MEK booster and dry KOH electrolyte only. Do not use methanol-based flux (such as OKAI HF-9) or premixed liquid electrolytes (such as OKAI HF-8) — they are not compatible with Aquaflame hoses and seals and will cause damage.
Setup Kit
The Hydrogen Torch Setup Kit (Item 8301085) includes measuring beakers, a graduated cylinder, a stirring rod, safety goggles, and disposable gloves — everything needed for safe electrolyte preparation.
| Specification | Details |
|---|---|
| Gas Production | 120 L/hr |
| Max Temperature | 3,300°C (5,972°F) — suitable for platinum |
| Power | 800W |
| Torch Tip Range | #18–#24 (0.90–0.31mm bore) |
| Max Operators | 2 (second operator kit 8301084, sold separately) |
| Machine Dimensions (L × W × H) | 16" × 11" × 15" |
| Shipping Weight | ~66 lbs |
| Warranty | 2 years (as long as user performs annual maintenance) |
| Origin | United Kingdom, CE approved |
