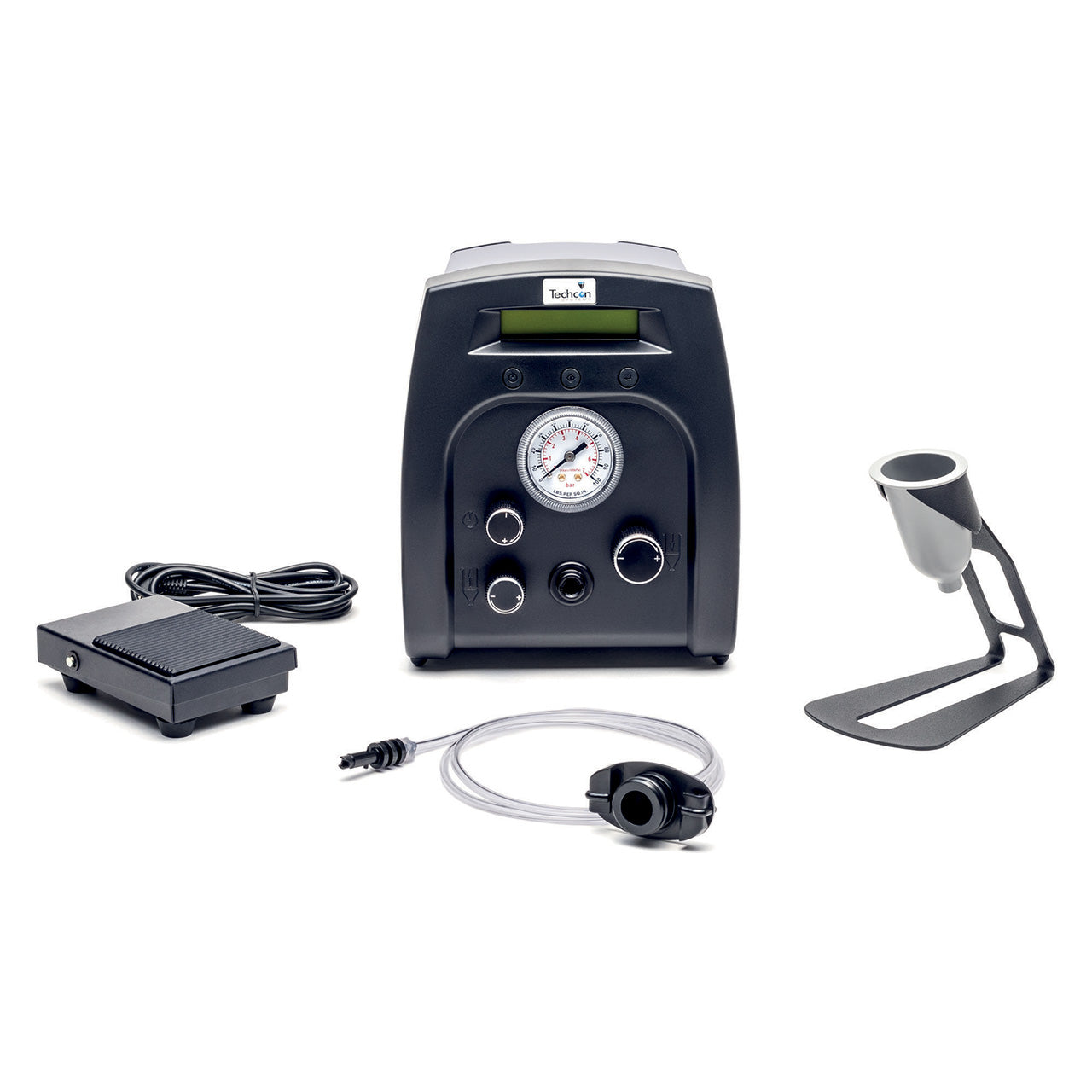

Digital Dispensing System 100 for use with Luxart® and HyCeram®
Digital Dispensing System 100 for use with Luxart® and HyCeram®
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Brochure
Instruction Manual
Product Description
Use the Digital Dispensing System 100 with either Luxart® or HyCeram® products. Using this pneumatic system allows both an easy and a precise application of the colors to your workpieces. Hook the color of your choice (no colors are included) to the 5ml cartridge adaptor. Consider purchasing additional cartridge adaptors (8213921) for 5ml syringes so you can have additional colors preloaded and ready to use. Requires an air compressor capable of producing 100psi (6.9 bar).
Specifications:
Size: 152x165x178mm (6” x 6.5” x 7.0”)
Weight: 100 = 1.2 kg (2.6lbs)
Input Voltage: 24VDC
Rated Power: 10W
Air Input: 100 psi (6.9 bars) max.
Indoor Use: Altitude up to 2,000m (6,562 feet)
Operating Temperature: 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature: -10˚C to 60˚C (14˚F to 140˚F)
Max. Relative Humidity: 80% for temperature up to 31˚C (87.8˚F),
Decreasing linearly to 50% relative humidity at 40˚C (104˚F)
Air Output: 0-100 psi (0-6.9 bars)
Vacuum: 406mm (16”) of Hg
Timer: 0.008 - 99.999 seconds
Cycle Mode: Continue, Interrupt, Purge
Timing Repeat Tolerance: +/- 0.001%
Cycle Rate: 600 cycles/min
LCD: 16 X 2 display segments
