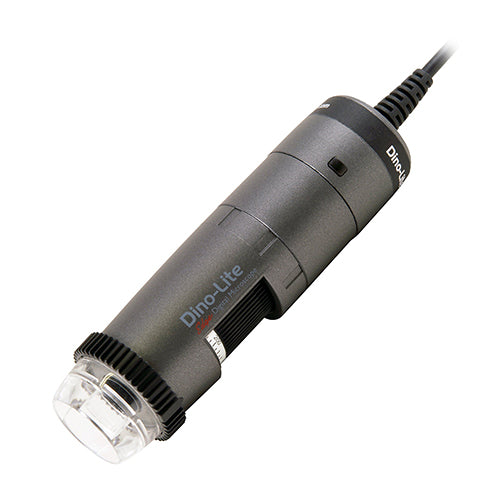

Dino-Lite® Edge Series Scope (AF4115ZTW)
Dino-Lite® Edge Series Scope (AF4115ZTW)
In Stock, 1 left!
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Brochure
Warning
Warning
Cancer and Reproductive Harm
www.P65Warnings.ca.gov.
Product Description
The Dino-Lite® Edge 1.3MP AF4115ZTW is designed for wide-angle macro applications. It's 10-50X magnification with Flexible LED Control (FLC) provides lighting adjustment options including intensity settings from 1-6, as well as the ability to turn on/off LEDs by quadrant.
It delivers higher image quality with a larger Field-of-View (FOV) and Depth-of-Field (DOF), which makes it ideal for macro viewing applications. When viewing a working distance of more than 1cm from the target, once in focus, rotating the knob will receive another focal point, and thus; effectively zoom in the image optically. Polarization can be switched on/off or can be adjusted to offer full or half polarization by reducing or eliminating the reflections.
The new modular wireless-ready design allows for USB 2.0 connection or a quick swap to wireless with a WF-20 adapter (810-0235, sold separately) making it a completely cordless and portable microscope.
Package Includes:
- AF4115ZTW Dino-Lite Edge Series Microscope
- Application Software Installation CD
- Calibration target
- Alternate end caps
- USB 2.0 cable
- Power cable
| Dino-Lite® Edge (AF4115ZTW) | |
| Item #: | 810-0215 |
| Series: | Edge |
| LEDs: | White (8) |
| Flexible LED Control: | |
| Polarization: | |
| Measuring Software: | |
| Magnification: | 10 - 50X |
| Magnification Lock: | |
| Working Distance: | Standard 5.25" |
| Camera Megapixels: | 1.3 |
| Resolution: | 1280 x 1024 pixels |
| Max Frame Rate: | 30 FPS |
| AMR: | |
| EDOF/EDR: | No/No |
| Operating System: | Windows XP, Vista, 7+ Mac OS 10.11.6+ |
| Image Save Format: | BMP, JPG, PNG |
| Connectivity: | USB 2.0 |
| Dimensions (L x Diameter): | 11.4 x 3.3cm (4.4" x 1.29") |
| Weight: | 111g (3.0 oz.) |
| Body Material: | ABS Plastic |
| Lens Type: | Glass |
| Microtouch 1/4" CMOS Sensor: | |
| Warranty: | Two-year |
