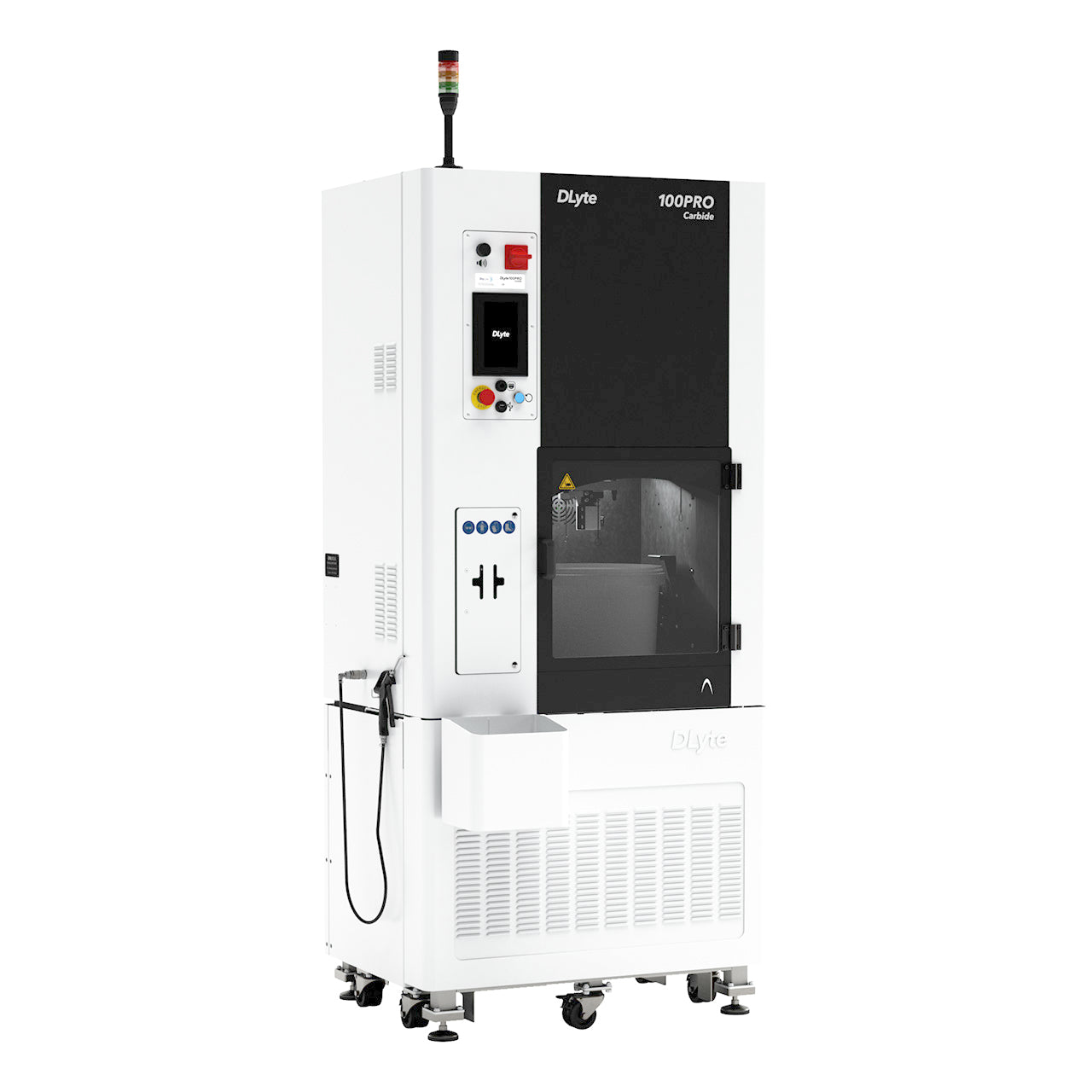

DLyte 100PRO Carbide
DLyte 100PRO Carbide
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Data Sheet
Product Description
Compact, fully automated surface finishing equipment for
cemented carbide cutting tools, endmills, and cutting inserts. Designed for
precision applications in medical devices, automotive, aerospace, luxury goods,
tools, food, and pharmaceuticals.
The DLyte 100PRO Carbide is the largest compact surface polishing system designed for industrial applications. Powered by DryLyte® a revolutionary dry electropolishing process, it uses solid media to deliver automated, high-precision surface finishing on a wide range of metals and alloys including steel, cobalt-chrome, titanium, copper-based alloys, hard metal group, nickel-based alloys and aluminum group materials. The system uses solid electrolyte media with advanced PLC-based controls to achieve repeatable results equivalent to manual polishing and grinding. The advanced PLC based electronics allow asymmetric pules required to process carbides and a wide range or materials from low to high frequency and parameter concatenation. One-year limited warranty.
Key Technology
-
Advanced
PLC Electronics: Asymmetric pulse capability for carbide processing
-
Precise
Control: Variable holder rotation speed and direction
-
Temperature
Management: Integrated refrigeration system for consistent batch
results
-
Intelligent
Electrolyte System: Calculates remaining media lifespan based on
material removal
-
Automatic
Conditioning: Independent conductivity monitoring with 2 temperature
probes
Performance Features
- High-performance
coated titanium cathode for uniform electrical fields
- Programmable
cycle times with automatic parameter adjustment
- Powerful
database for storing piece-specific process parameters
- Variable
motor speed and movement control
- Anti-vibration
support system
Operational Benefits
- Easy
operation with low maintenance costs
- Clean,
safe work environment (no dust, minimal gas emissions)
- CE
certified for safety and quality standards
- Effortless
media changes with minimal downtime
- Innovative
holding systems for secure workpiece clamping (sold separately)
Specifications:
Workpiece Weight Capacity: 8 kg. (17.6lbs)

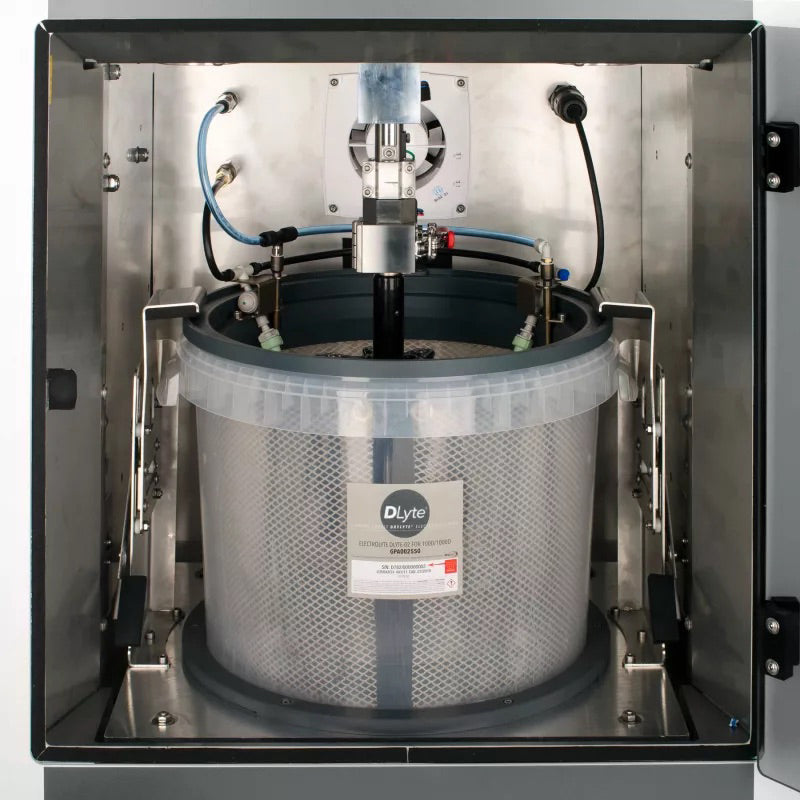

Bucket Capacity (per cycle): 180mm Diam. x 115mm (approx. 7.1" in diameter x 4.5")
Electrolyte Capacity: 16 liters (approx. 17 quarts)
Machine Dimensions (LxWxH): 1025x870x2395mm (approx.40.35"x34.25"x 94.29")
Machine Weight: 283kg (approx. 622.6lbs.)
Distilled Water Tank Capacity: 9 liters (approx. 2.38 gal.)
Air Pressure: 4-5 bar
Air Hose Inlet: 8mm Diam. or 1/4" BSP
Air Quality: Filter=5, Air Dryer=4, Oil=4 according to ISO 8573-1
Line Air Supply: 40 L/min (approx. 1.12GPM)
