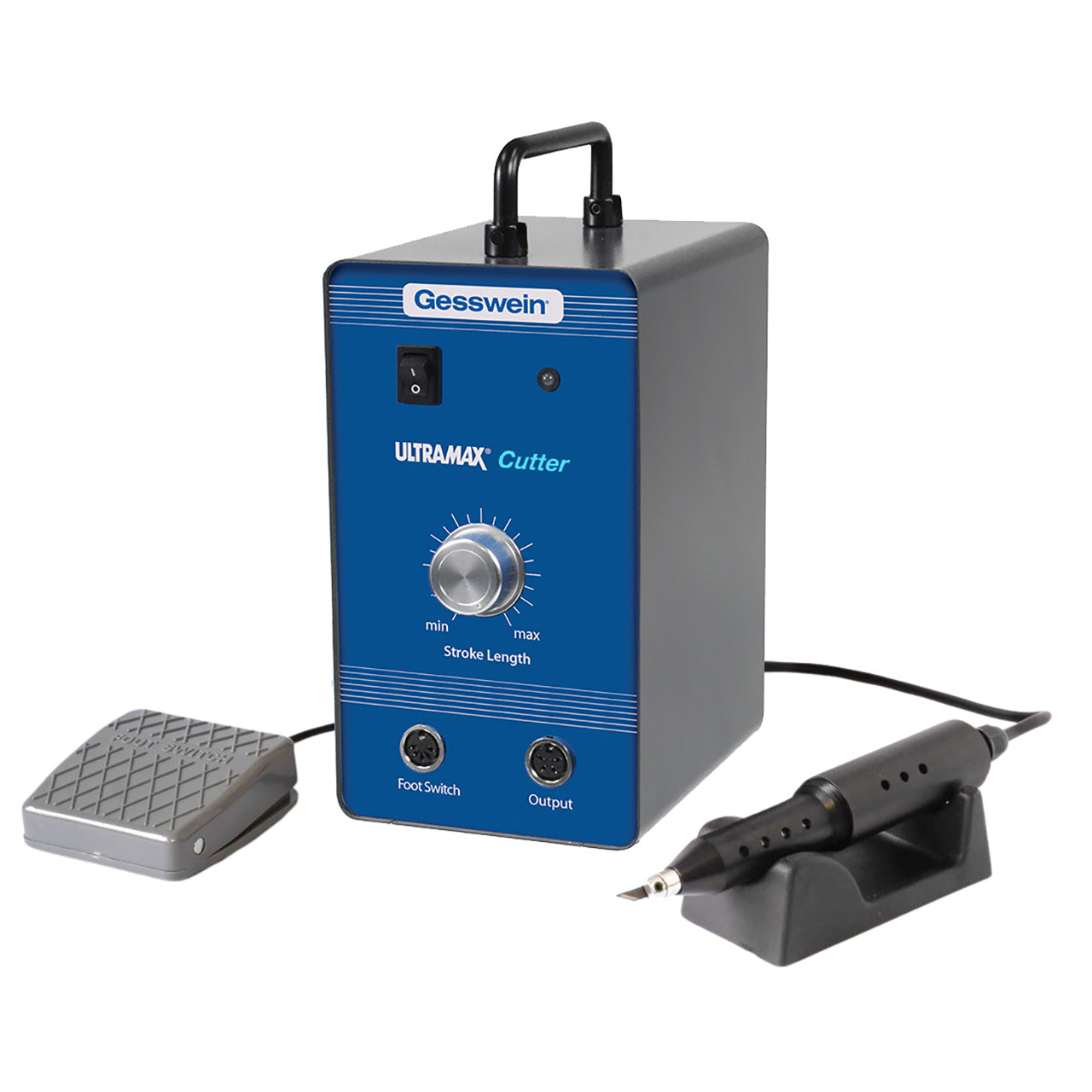

Gesswein® Ultramax® Cutter
Gesswein® Ultramax® Cutter
In Stock, 1 left!
New
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Brochure
Product Description
Use this innovative cutter anywhere you would usually use a knife to cut through soft to medium-hard material. Using ultrasonic vibrations (up to 40,000 vibrations per second at the blade tip), the high-frequency oscillation enables smooth, precise cuts with minimal operator effort. Select from two operation modes - either continuous mode or foot-pedal activation - to best adapt to your workflow and work pieces. Complete with stepless power adjustment for optimal performance on varying materials, easy visual monitoring of power increases and automatic fault detection with alert notifications. The patented clamping blade holder ensures a firm, even grip on blades.
Key Benefits:
Production efficiency - speed up repetitive cutting tasks reducing cycle times.
Consistent quality – clean, smooth edges without fraying reduces scrap and rework.
Reduced operator fatigue – minimal pressure needed due to ultrasonic assistance.
Precision & control – adjustable output power for different thicknesses.
Versatile control – foot pedal or continuous mode for efficiency.
Workflow speed – faster cuts compared to manual blades, especially for repetitive tasks.
Applications (designed for precision cutting of soft to medium-hard materials):
Electronics manufacturing - cutting PCB copper foil short, trimming circuit board conductors.
Plastic processing - sprue and flash removal, cutting ABS, PE, acrylic, PP and other plastic sheets.
Textiles and soft materials - non-woven fabrics (natural or synthetic), neoprene, linoleum, corrugated cardboard, thick paperboard.
Not suitable for cutting ceramics, glass, aluminum, steel, or soft elastomers like silicone rubber and soft urethane foam.
Cutting Performance:
ABS/PE: 2 mm at 4 mm/sec, 4 mm at 1 mm/sec
Acrylic: 2 mm at 3 mm/sec, 3 mm at 2 mm/sec
Nylon/PP: up to 1 mm (difficult at >1 mm)
Neoprene rubber: up to 5 mm
Cardboard: up to 8 mm corrugated, 1.5 mm thick board
Fiberglass resin: up to 1.5 mm
Linoleum: up to 2 mm
Comes complete with:
GSONIC-1082 Cutter Controller
UC-60N-03A Cutter Handpiece (5000405)
Foot switch (5000227)
Cutting Blades 20 pieces (5000406)
L Wrenches 5 pieces (5000409)
Fixing screws 12 pieces (5000407)
Cleaning file (5000410)
Holder clip (5000408)
Spare fuse
Plastic toolbox for easy storage (5000411)
Controller Specifications:
Power: 90~240 VAC 50/60Hz
Rated current: 2 A
Max. power consumption:45 Watts
Consumption: 50VA
Output power: 40 Watts
Ultrasonic frequency range: 39-47 kHz
Tracking Range: 39~43 kHz
Adjustment of ultrasonic output: Continuous
Method of frequency adjustment: Auto-tracing
Ultrasonic amplitude:3-40μM
Protections: Suspension detection, Overload
Fuse: 2a, 20mm time-lag type
Dimensions: 120mm (4.7") Width x 160mm (6.3") Depth x 230mm (9") Height
Weight: 2.0 kg (4.4lbs)
Handpiece Specs:
Dimension Φ 27.5mm (appox.1") Diameter x 182mm (7.16") Long
Weight 200 g (approx. 7oz.)
Frequency 40 kHz
