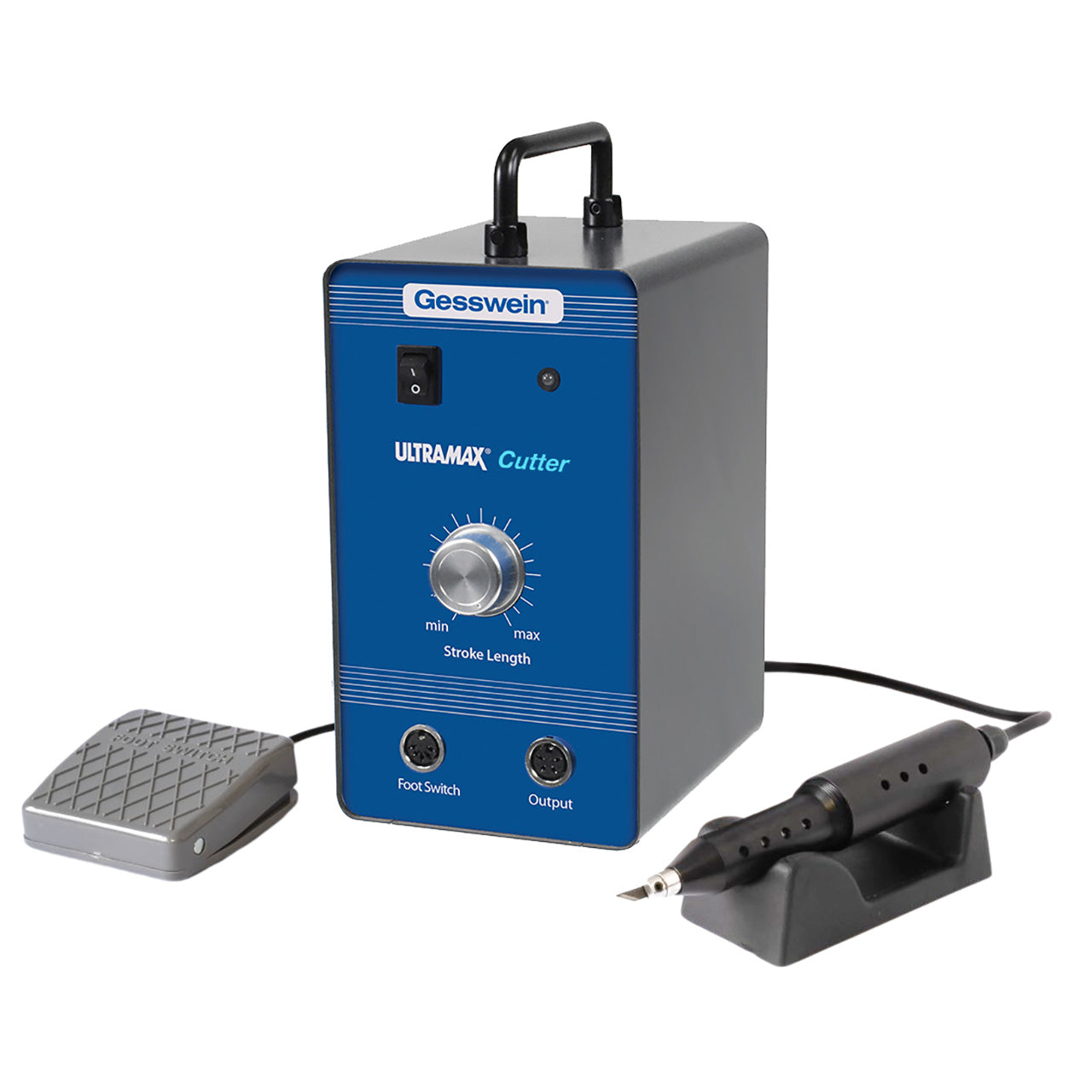

Gesswein® Ultramax® Cutter
Gesswein® Ultramax® Cutter
In Stock, 3 left!
New
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Brochure
Product Description
Use this ultrasonic cutter anywhere you'd normally reach for a knife to cut soft to medium-hard materials. High-frequency ultrasonic vibration (up to 40,000 vibrations per second at the blade tip) enables smooth, precise cuts with minimal operator effort.
Choose continuous mode or foot-pedal activation to match your workflow, with stepless power adjustment for optimal performance across varying materials. Visual power-level monitoring and automatic fault detection with alert notifications keep operation predictable, and the patented clamping blade holder ensures a firm, even grip on blades.
Benefits
- Production efficiency — speeds up repetitive cutting tasks, reducing cycle times.
- Consistent quality — clean, smooth edges without fraying reduce scrap and rework.
- Reduced operator fatigue — minimal pressure needed thanks to ultrasonic assistance.
- Precision and control — adjustable output power for different material thicknesses.
- Flexible operation — foot pedal or continuous mode, selectable to fit the task.
- Workflow speed — faster cuts than manual blades, especially for repetitive work.
Designed for precision cutting of soft to medium-hard materials:
- Electronics manufacturing — cutting PCB copper foil to length, trimming circuit board conductors.
- Plastic processing — sprue and flash removal; cutting ABS, PE, acrylic, PP, and other plastic sheet.
- Textiles and soft materials — non-woven fabrics (natural or synthetic), neoprene, linoleum, corrugated cardboard, thick paperboard.
- Not suitable for ceramics, glass, aluminum, steel, or soft elastomers such as silicone rubber and soft urethane foam.
| Material | Max Thickness | Cutting Speed |
|---|---|---|
| ABS / PE | 2 mm | 4 mm/sec |
| ABS / PE | 4 mm | 1 mm/sec |
| Acrylic | 2 mm | 3 mm/sec |
| Acrylic | 3 mm | 2 mm/sec |
| Nylon / PP | up to 1 mm | difficult above 1 mm |
| Neoprene rubber | up to 5 mm | — |
| Cardboard (corrugated) | up to 8 mm | — |
| Cardboard (thick board) | up to 1.5 mm | — |
| Fiberglass resin | up to 1.5 mm | — |
| Linoleum | up to 2 mm | — |
| Item | Part Number | Qty |
|---|---|---|
| GSONIC-1082 Cutter Controller | — | 1 |
| UC-60N-03A Cutter Handpiece | 5000405 | 1 |
| Foot switch | 5000227 | 1 |
| Cutting blades | 5000406 | 20 |
| L wrenches | 5000409 | 5 |
| Fixing screws | 5000407 | 12 |
| Cleaning file | 5000410 | 1 |
| Holder clip | 5000408 | 1 |
| Spare fuse | — | 1 |
| Plastic toolbox | 5000411 | 1 |
| Power | 90–240 VAC, 50/60 Hz |
| Rated current | 2 A |
| Max. power consumption | 45 W |
| Consumption | 50 VA |
| Output power | 40 W |
| Ultrasonic frequency range | 39–47 kHz |
| Tracking range | 39–43 kHz |
| Ultrasonic output adjustment | Continuous |
| Frequency adjustment method | Auto-tracing |
| Ultrasonic amplitude | 3–40 μm |
| Protections | Suspension detection, overload |
| Fuse | 2 A, 20 mm, time-lag type |
| Dimensions (W x D x H) | 120 mm x 160 mm x 230 mm (4.7" x 6.3" x 9.1") |
| Weight | 2.0 kg (4.4 lbs) |
| Dimensions | Ø 27.5 mm x 182 mm long (approx. 1.1" x 7.2") |
| Weight | 200 g (approx. 7 oz.) |
| Frequency | 40 kHz |
