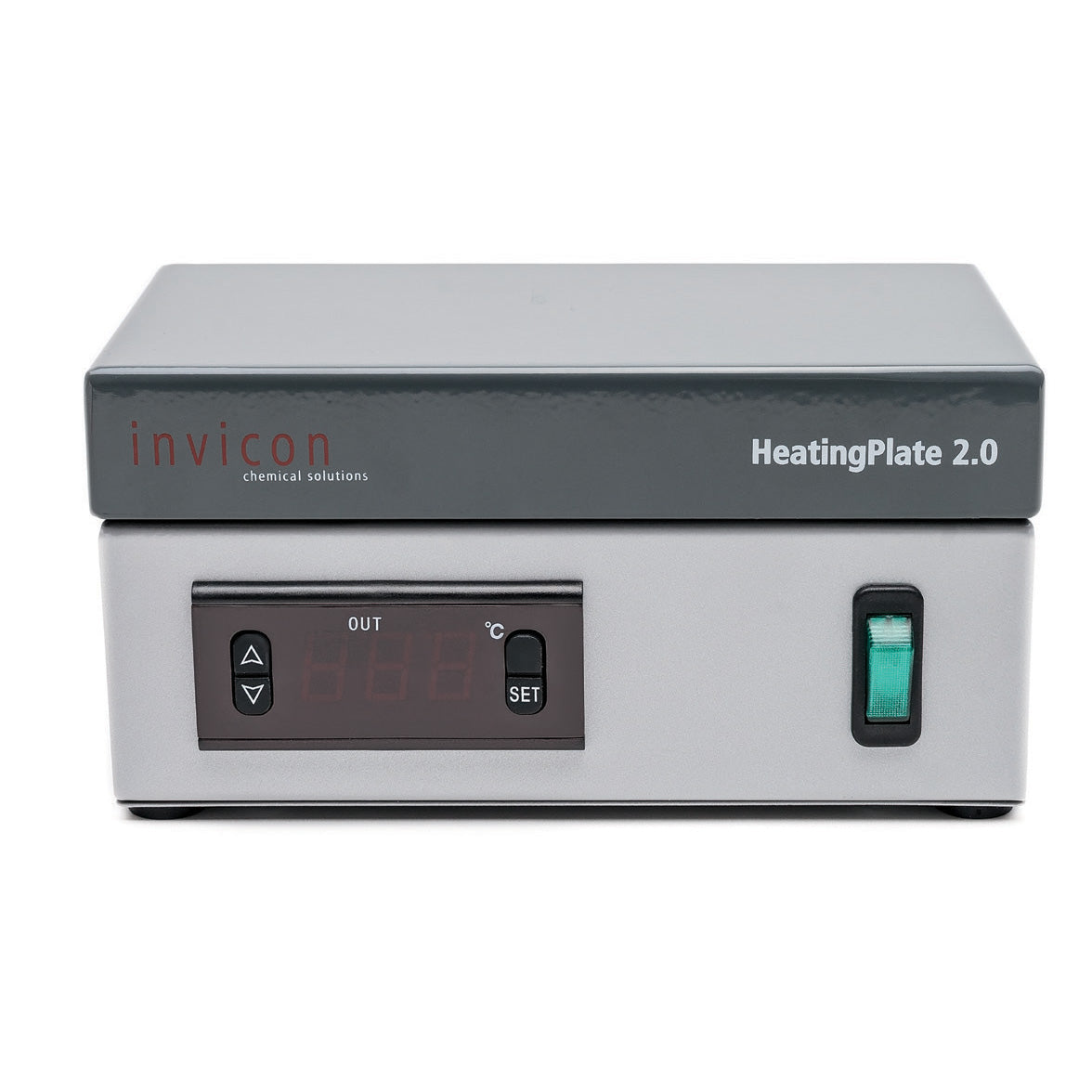

Heating Plate 2.0 use with Luxon®
Heating Plate 2.0 use with Luxon®
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Brochure
Instruction Manual
Product Description

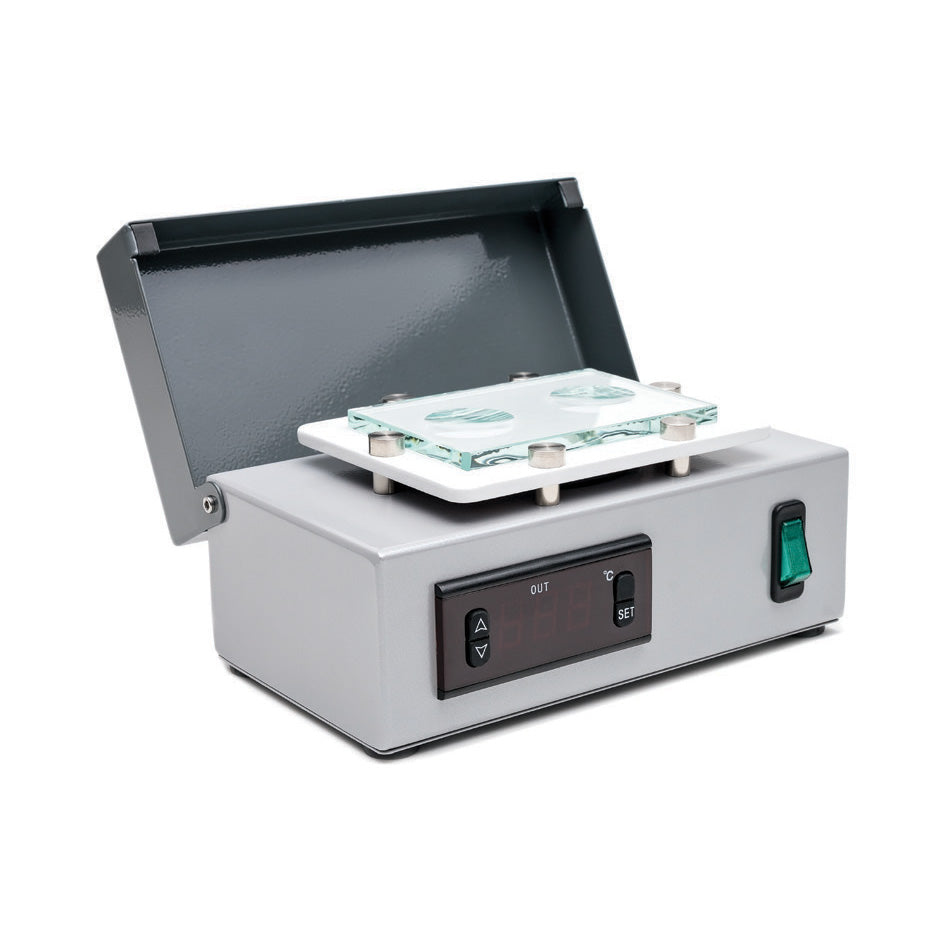

Used to warm up the Luxon colors both to flow easily and to mix colors together for your own unique designs. Use the glass mixing plate and a suitable spatula (not included). Place on the stainless-steel heating plate. The ideal temperature for mixing Luxon® materials is 122–140°F, with a warm-up time of approximately 15–20 minutes. If using Luxart® and HyCeram® colors, please use the PreHeater 1.0 our 8213911.
Specifications:
Height/Width/Depth: 100x190x106mm (approx. 4"x7.5"x4"
Width of heating plate: 100mm (approx. 4")
Depth of heating plate: 70mm (approx. 2-3/4")
Voltage: 120V
Power consumption: max. 0.26 A at 120V
Frequency: 50/60 Hz
Maximum temperature of heating plate: 80°C (176°F)
Power consumption of heating phase: 30watts
Power consumption holding phase at 60°C (140°F) and closed cover: 10 W
Weight: 1400g (approx. 3 lbs.)
Advisory:
- Place the Heating Plate 2.0 on a stable, flat and water-repellent surface.
- The surface of the device can heat up to 80°C (176°F) so always maintain a safe distance from the device when you are in its vicinity.
- No flammable or explosive substances may be stored in immediate vicinity of the device.
- Keep the heating plate clean by wiping with a damp cloth and using a stainless-steel cleaner when necessary.
