Quatro SPU Superflow Polisher W/O Motor

Quatro SPU Superflow Polisher W/O Motor

SKU: 8542141
|

Backordered

Price will appear in cart at checkout
Regular price $3,500.00 / Each
Sale price $3,500.00 / Each Regular price $0.00 USD % Off
Sold out
local_shipping Ships separately by truck and requires a custom shipping charge.

Product Specifications

Brand: Quatro
Electrical: 120V, 1 Ph, 60Hz
Horse Power: 1-1/2 HP
Noise Level: 59 dBA
View full details

Product Description

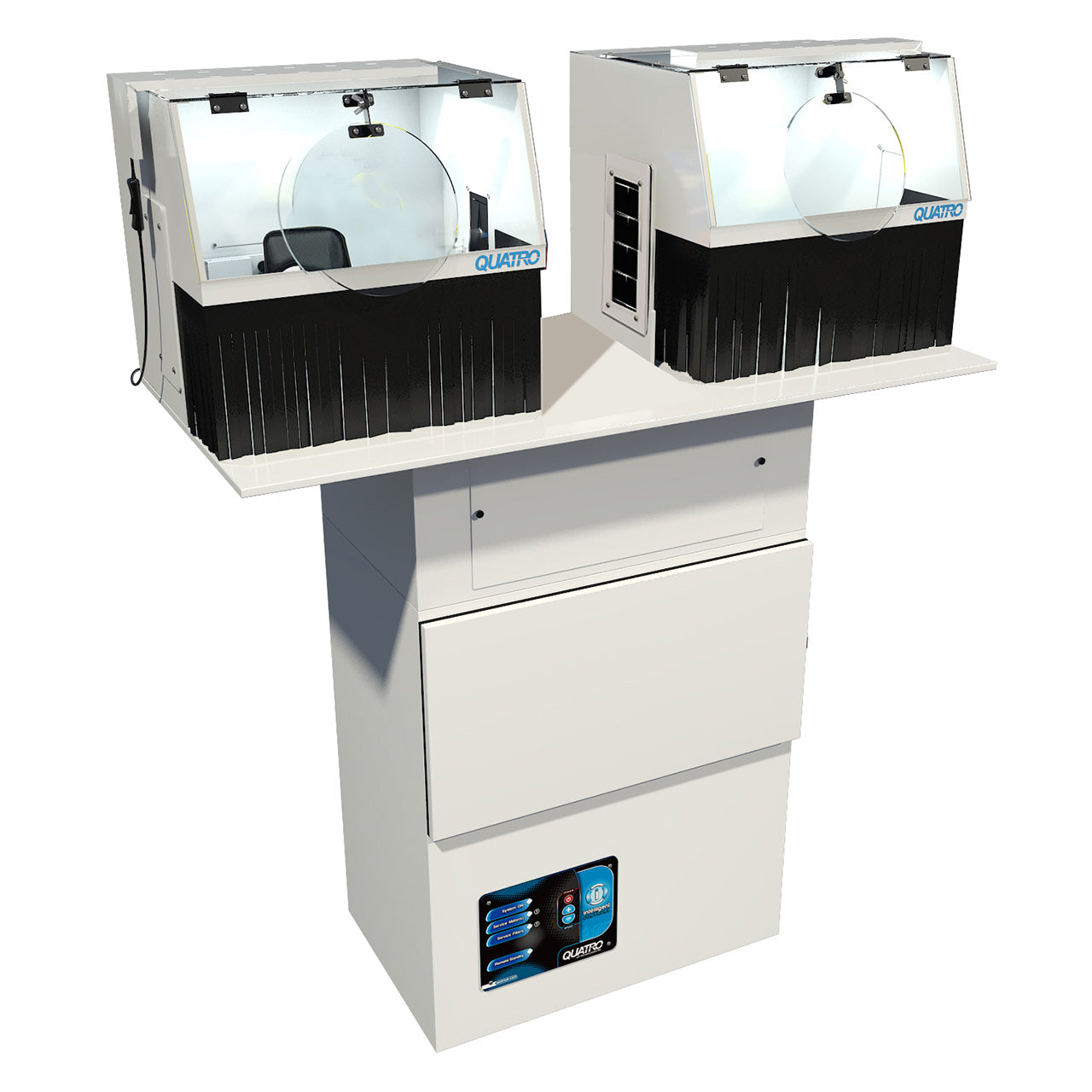

The Quatro SPU Superflow Polisher features a powerful suction unit with the addition of a tabletop containing (2) Quatro fully-enclosed Clearview Hoods with 2X magnifiers. Energy-efficient, LED lights in hoods use up to 75% less power than incandescent lights and keep your work area much cooler.

The Quatro 2-Stage filtration system enables the user to capture all precious metal dust, not just a portion of it and thus recovers more metal for refining.   This is the ideal system for Polishing, Grinding and Recovery. The first stage captures dust and metal debris in (3) high-capacity, sealable filter bags (854-2189) for maximum return on refining. Most particulate is collected at this stage. The balance is filtered during the second stage by a HEPA (854-2079) filter. The HEPA filter is rated at 99.97% efficient (0.3 microns) and requires no additional venting from the workspace. The SPU Superflow Deluxe will handle all the dust and particles that competitive models cannot filter, thus leaving a clean working environment. One-year manufacturer's warranty. Quatro Dust Collector is made in Canada.

Included Features:

  • Superior Capture/Containment System using 2-Stage Filtration.  Uses (3) Sealable Filter Bags for increased Capacity (854-2189) and a HEPA Filter (854-2079) for capturing very fine particulates.
  • (2) LED illuminated Clearview Hoods with Integrated Clip-on Magnifiers (2X) for increased visibility of the work being done.
  • High-power, continuous duty 1-1/2HP brushless suction motor for long-term performance.
  • Built-in ASV (Auto Start Valve) System turning your SPU Superflow Deluxe into an automatic system. Able to start/stop from inside each hood. Use one Clearview Hood or both at the same time. Shut one hood off to get full power from the other hood.
  • Utilizes an intuitive control panel for running your SPU. Easy to use, the digital control panel and its intelligent controls will alert you when to change the filters and will shut off automatically when filter bags are full.

Quatro SPU Superflow Deluxe Polisher Includes:

  • 2 - Clearview Hoods with Drawers, 2X magnifiers and ASV on/off valves
  • 3 - Sealable Filter Bags (854-2189)
  • 1 - HEPA filter (Rated 99.97% efficient at 0.3 Microns) (854-2079)
  • Needs Polishing Motor* (Sold Separately) (8541254, 8541030, or 8541090)
  • * NOTE:  Should a new polishing motor be needed for an older model prior to January 2025, then a retro side panel kit will be needed (8542086) as these polishing motors require a larger opening.


Optional Accessories:

  • 2" casters (Raises height of SPU) (8541473)
  • Noise Silencer (8541528)
  • Accessory Drawers (8541497)


Quatro SPU Superflow Deluxe Polisher
Electrical: 120V, 1 Ph, 60 Hz
Suction Motor: 1-1/2 HP, 120V, 9A
Airflow/Noise: 450-550 CFM, 59dBA

Dimensions (WxDxH): 38.5" x 24" x 52"
(978 x 610 x 1270mm)
Counter Height: 35" (889mm)
Net Weight: 226 lbs.
Shipping Weight: 211 lbs.
Made In: Canada

 - This item ships by truck. We will contact you prior to shipment to arrange delivery and quote shipping charges.

Item Classification Main Filter HEPA Filter
Gesswein # Model Quatro # Workload Gesswein # Quatro # Gesswein # Quatro #
854-2141 SPU 1-0031-4400  Heavy Duty
(Dual Station)
854-2189 AG149
(6/pk)
854-2079 F022
