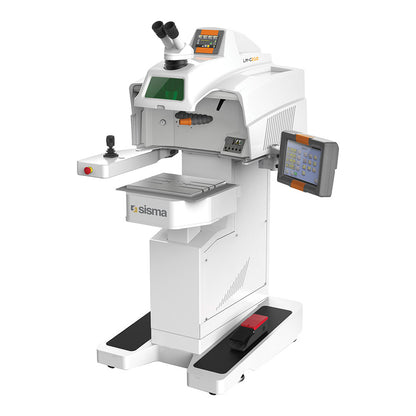

Sisma LM-C 180 Laser Welder
Sisma LM-C 180 Laser Welder
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Brochure
Product Description
These high precision Nd: YAG (Class 4 open) laser welders are designed for small molds, 11.75" x 11.75" (300mm x 300mm) under 55 lbs. Featured characteristics are ease of use, reduced maintenance, and precise movement along the X, Y, and Z axes. All versions have Smart Spot technology, which yields a greater depth of field and a stable laser shot starting from the first pulse. Included ECO Mode saves energy by switching off unused components during idle times, thereby reducing power consumption.
The LM-C and LM-CV both allow the motorized working platform to be programmed for automatic, consistent results or controlled via joystick when preferred. The LM-C offers the 10X stereo microscope while the LM-CV features the patented Syncro View System for a fluid and stress-less view of work during welding.
All units are made in Italy. Backed by a one-year manufacturer's warranty. Installation, training, and service provided by Gesswein.
Key Features:
- Designed for Small Molds
- Motorized Control of X, Y, and Z Axes
- Fast Setting of Welding Parameters (via Keyboard)
- Internet Connection for Remote Service Management and Free Upgrades
|
Technical Data |
LM-C 180 |
LM-C 210 |
|
Item #: |
833-1850 |
833-1853 |
|
Source Type: |
Nd: YAG (flash lamp) |
Nd: YAG (flash lamp) |
|
Wavelength: |
1064 nm |
1064 nm |
|
Average Laser Power: |
80W |
85W |
|
Peak Power: |
9kW |
10.5kW |
|
Pulse Frequency: |
0-50Hz |
0-50Hz |
|
Max Pulse Energy: |
180J (at 20ms) |
210J (at 20ms) |
|
Pulse Duration: |
0.3ms - 20ms |
0.3ms - 20ms |
|
Laser Spot Diameter: |
0.2 - 2mm |
0.2 - 2mm |
|
Axis Speed: |
0.1mm/s - 15mm/s |
0.1mm/s - 15mm/s |
|
X Axis Stroke: |
5.9" (150mm) |
5.9" (150mm) |
|
Y Axis Stroke: |
5.9" (150mm) |
5.9" (150mm) |
|
Z Axis Stroke: |
6.9" (175mm) |
6.9" (175mm) |
|
Cooling: |
Water & Air |
Water & Air |
|
Max Load Weight: |
55lbs. (25kg) |
55lbs. (25kg) |
|
Max Mold Size
(LxWxH): |
11.8" x
11.8" x 10.6" (300 x 300 x 270mm) |
11.8" x
11.8" x 10.6" (300 x 300 x 270mm) |
|
Power Supply: |
230V±10%, 1
Ph, 50/60Hz |
230V±10%, 1
Ph, 50/60Hz |
|
Dimensions (LxWxH): |
|
|
|
Weight: |
441 lbs. (200kg) |
441 lbs. (200kg) |
Why Manufacturers Choose Sisma
Founded in Italy in 1961, Sisma is a global leader in high-precision laser machinery for industrial and manufacturing applications. Trusted by manufacturers worldwide, Sisma laser welders are known for their accuracy, process stability, and long-term reliability in demanding production environments. With decades of engineering expertise and proprietary patented technologies, Sisma systems support laser welding applications across industrial manufacturing, tooling and moldmaking, and precision fabrication environments.
