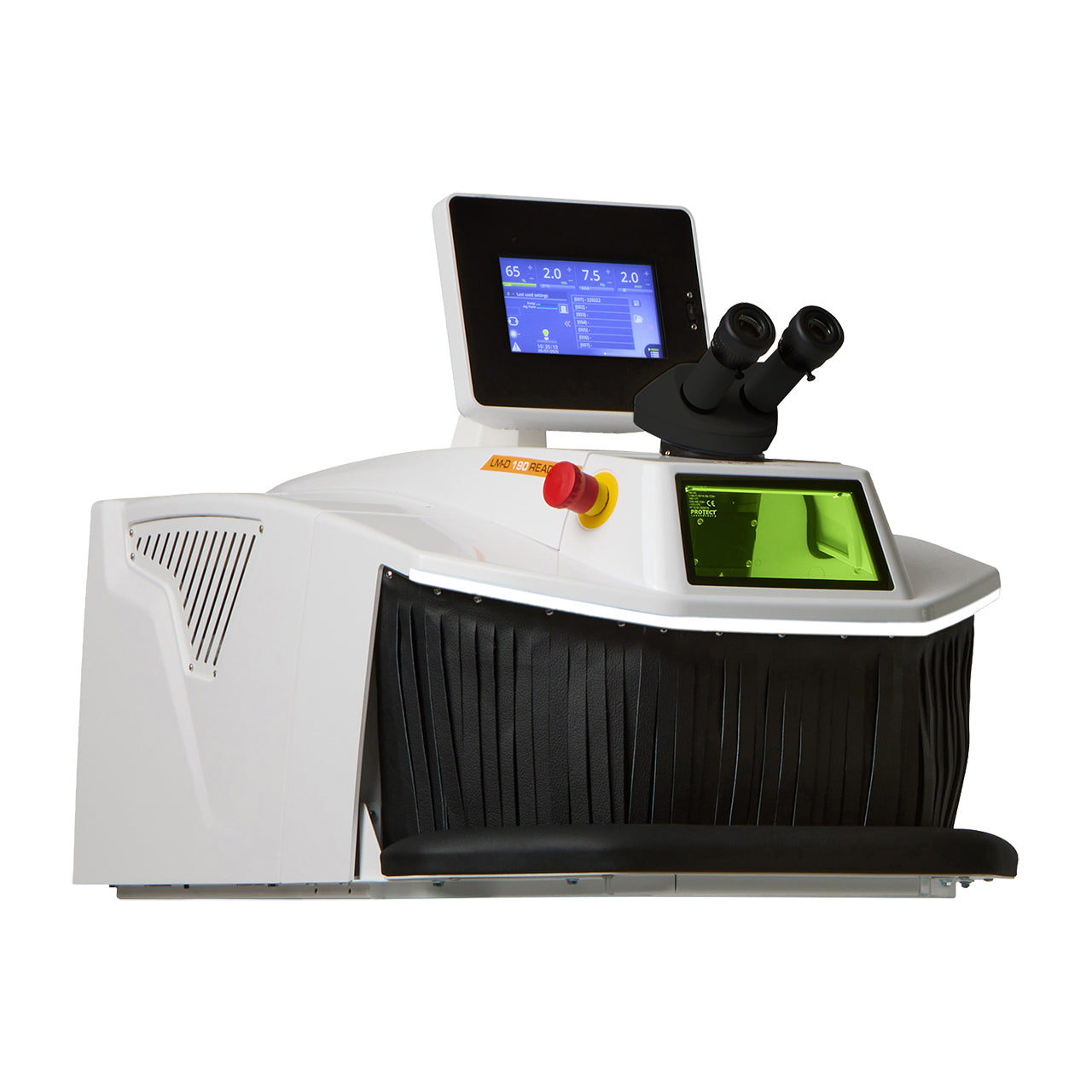

Sisma LM-D Ready 230 Flex Laser Welder
Sisma LM-D Ready 230 Flex Laser Welder
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Brochure
Product Description
Desktop laser welding system designed for high precision processing of precious metals. Equipped with a wide, flexible entry point; 10X microscope optics with a 7" display screen and is argon ready. Laser welder comes with a water-air cooling system and both air and argon connections. Average power 85 W, max pulse energy of 225 Joules, peak power 9 kW. Warranty 24 months or 20 million shots on the lamp, 36 months on the balance of the machine. All consumables are not included in the guarantee. Also available with Lynx Dynascope which is an easy to share, 3D vision system providing a high-resolution view of the welding process while maintaining an ergonomic working posture. All other specifications remain the same.
Key Features of the LM-D 230 Flex Ready:
- Easy access to the working chamber
- Full 7" Touchscreen
- 10X Stereo microscope with optical protection
- Spot diameter 0.2-2 mm
- Smart Spot technology maintains stable energy output delivering identical welds from the first pulse to the last
- Pulse duration 0.5-25 ms
- USB Connection / Ethernet / TeamViewer included to simplify and allow remote diagnostic capability
- Quick setting of welding parameters by means of the multifunctional mouse - can save up to 250 for future use
- Laser welder comes with a water-air cooling system, both air and argon connections, a filter for processing vapor and reclaiming precious metals as well as a protective cloth
- Adjustable white LED light allows easy modifications to improve clarity or reduce glare
This LMD-Ready welder comes complete with:
- A water-air cooling system
- Both air and argon connections
Why Jewelers Choose Sisma
Founded in Italy in 1961, Sisma is a global leader in high-precision laser machinery. Sisma Welders are trusted by jewelers and manufacturers worldwide thanks to their precision, reliability, and innovation. With decades of expertise and a focus on the jewelry sector, Sisma continues to pioneer laser technology with dozens of international patents. Today, Sisma machines are used around the world, setting the standard for precision laser welding.
