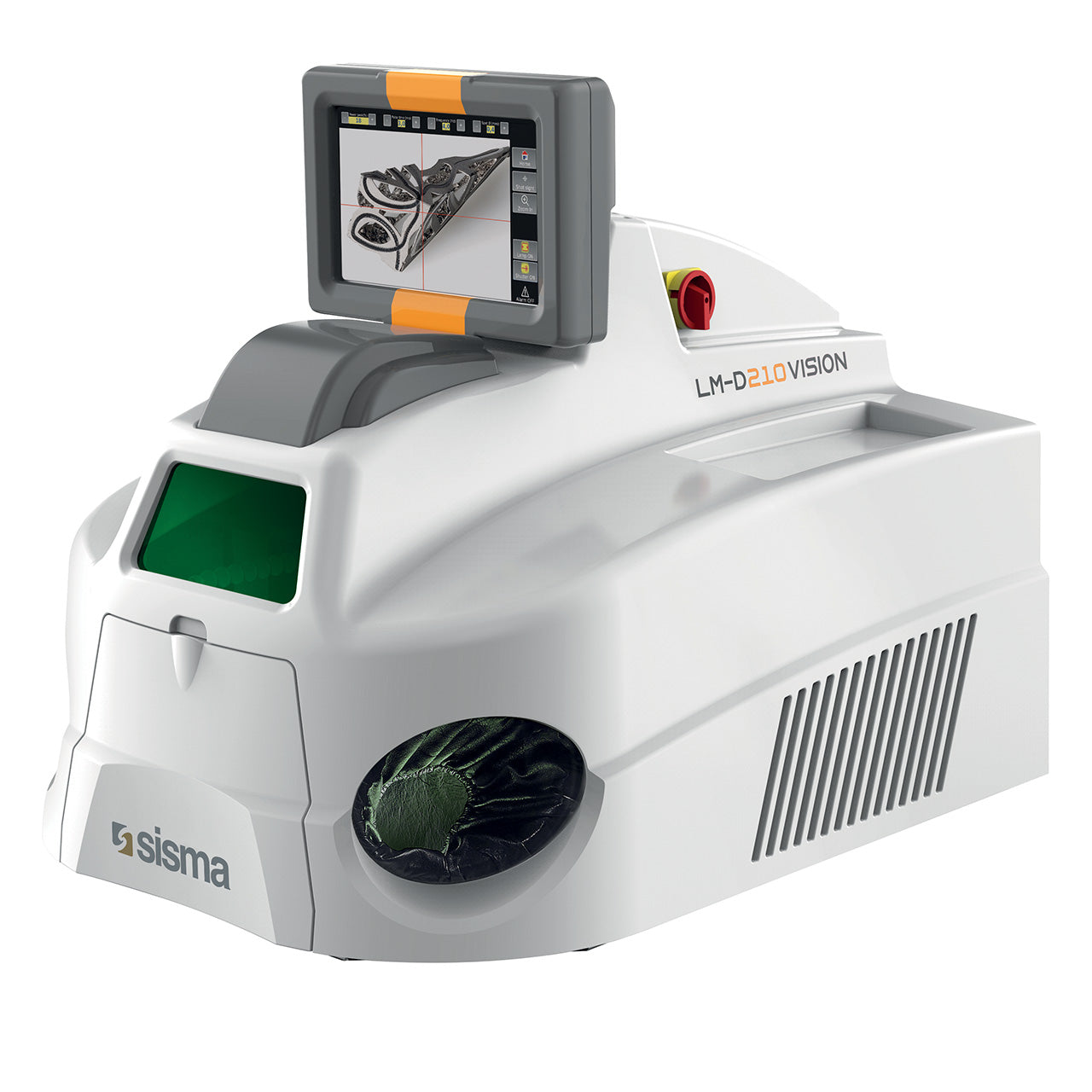

Sisma LM-D Vision 210 Laser Welder
Sisma LM-D Vision 210 Laser Welder
SKU: 8301585
|
Special Order
Price will appear in cart at checkout
Regular price
$20,995.00
/ Each
Sale price
$20,995.00
/ Each
Regular price
$0.00
% Off
Unit price
per
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Brand:
Sisma
Country of Origin:
Italy
Dimension:
22.5" x 28.75" x 24"
Electrical:
230V ±10%, 1 Ph, 13A, 50/60Hz
Laser Power:
85W
Laser Source Type:
Nd: YAG
Max Peak Power:
10.5 kW
Max Pulse Energy:
262J
Model:
210
Pulse Duration:
0.3-25ms
Pulse Frequency:
0-50Hz
Warranty Term:
2 Year
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Brochure
Product Description
Key Features of the LM-D Vision:
- Available in 225 joule and 262 joule configurations.
- Operate with a 10.1" High Definition LCD touch screen monitor. No microscope!
- Monitor projects at a 10X, with digital zoom to 13X.
- DisplayPort comes standard, to project digital video from screen to TV/Computer monitor.
- Large front door with new ergonomic design for operator comfort.
- Smart spot technology for sustained weld quality and consistency.
- First pulse suppression (FPS) feature for first shot control.
- Hinged hood system for ease in opening the machine.
- 40% cooling capacity compared to previous models.
- Large internal chamber has high powered fume extractor/metal reclaimer with durable HEPA filter.
- Internal mouse controls for ease in adjustment of parameters.
- 0.2 - 2mm shot diameter (0.1 optional).
- Eco mode with performance and quiet mode.
- 250 customizable programs.
- Ethernet for remote service with diagnostic software.
- Argon and air compressor hookups come standard.
- 2 year warranty, including the flash lamp.
Established in 1961, Sisma is a worldwide recognized name for the design and production of extremely high precision laser machinery. Suiting the needs of diverse industries; jewelry, machining, prototyping, dental, and medical, Sisma’s expansive line of customizable laser solutions are synonymous with quality and superiority. Innovative by vocation, Sisma combines technologically advanced machines with unique patents. When coupled with a world class service and support network, optimal efficiency and utilization of their products are guaranteed.
