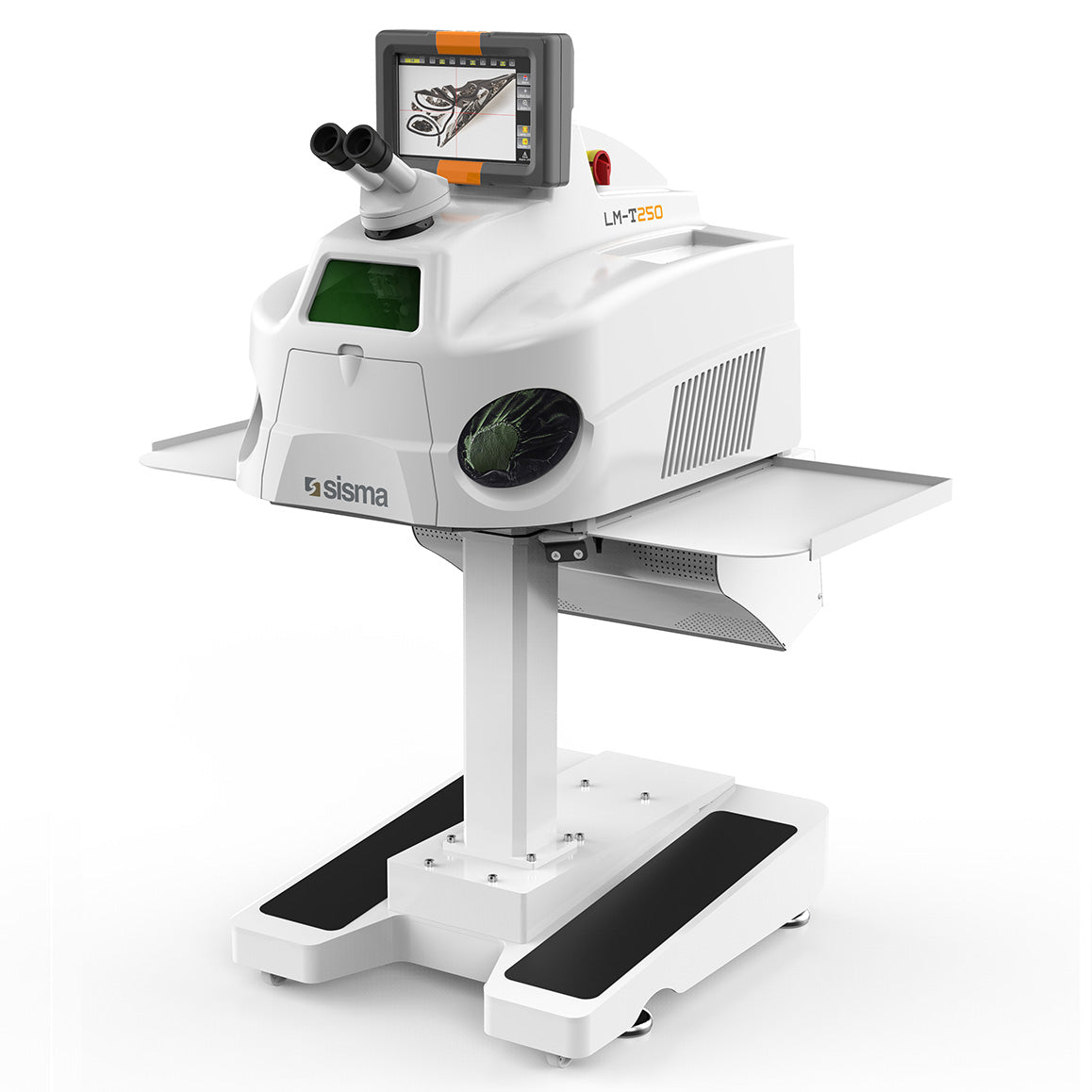

Sisma LM-T 250 Laser Welder for Industrial

Sisma LM-T 250 Laser Welder for Industrial

SKU: 8331985
|
Special Order
Price will appear in cart at checkout
Regular price $34,350.00 / Each
Sale price $34,350.00 / Each Regular price $0.00 USD % Off
Sold out
local_shipping Ships separately by truck and requires a custom shipping charge.

Product Specifications

Brand: Gesswein
Cooling: Water & Air
Dimension: 43" x 34.5" x 54"
Electrical: 230V ±10%, 1 Ph, 50/60Hz
Item Length: 43"
Item Width: 34.5"
Item Height: 54"
Laser Power: 100W
Laser Source Type: Nd: YAG
Max Peak Power: 11kW
Max Pulse Energy: 250J
Model: LM-T 250
Pulse Duration: 0.3-20ms
Pulse Frequency: 0-50Hz
Warranty Term: 1 Year
Wave Length: 1064nm

Safety, Compliance & Product Documentation

View full details

Product Description

Key Features of the LM-T 250:

  • This model has controls via a 10.1" High Definition LCD touchscreen monitor.
  • Freestanding machine with hydraulic stand and removable base for larger items.
  • External chiller to withstand extreme working conditions.
  • User operates with a 10X Leica stereo microscope (16X and 25X optional).
  • Monitor projects at a 10X, with a digital zoom of 13X.
  • Large front door door with new ergonomic design for operator comfort.
  • Smart spot technology for sustained weld quality and consistency.
  • First pulse suppression (FPS) feature for first shot control.
  • Hinged hood system for ease in opening the machine.
  • 40% cooling capacity compared to previous models.
  • Large internal chamber has a high powered fume extractor/metal reclaimer with durable HEPA filter.
  • Internal mouse controls for ease in adjustment of parameters.
  • Eco mode with performance and quiet mode.
  • 250 customizable programs.
  • Ethernet port for remote service with diagnostic software.
  • Argon and air compressor hookups come standard.




Model:

 LM-T 250

Item #:

833-1985

Source Type:

Nd: YAG (Lamp)

Wavelength:

1064nm

Laser Power:

100W

Pulse Duration:

0.3-23ms

Pulse Frequency:

0-50Hz

Max Peak Power:

11kW

Max Pulse Energy:

275J

Spot Diameter:

0.1/2mm

Smart Spot Tech:

 +

Eco Mode:

  +

FPS (First Pulse Suppression):



DisplayPort:

/

Power Supply:

230V, +/- 10%, 50/60Hz, 13A, 1Ph

Dimensions (L x W x H):

43" x 34.5" x 54"
(1094 x 878 x 1363mm)

Weight:

341.71 lbs. (155kg)

Crated Weight:

450 lbs.
(205kg)

Warranty:

2 Year (Flash Lamp Included)
