Formlabs® Form 4 3D Printer - Basic Package

Formlabs® Form 4 3D Printer - Basic Package

SKU: 2620420
|
Non-Stock, Dropship
Nuevo Agotado
El precio aparecerá en el carrito al momento de pagar.
$2,625.00 / Set

Especificaciones del producto

Marca: Formlabs®
Country of Origin: China
Dimensions: 15.7" x 14.5" x 21.9"
Electrical: 120V
Net Weight: 40.4 lbs (18.3 kg)
Ver todos los detalles

Descripción del Producto

Built on Low Force Display™ (LFD) technology, the Form 4 brings blazing print speeds and industrial-grade reliability to professional SLA 3D printing. Most prints finish in under 2 hours on the Form 4. Multiple parts can print in a single job without extending print time.

Parts come off the printer with smooth surfaces and sharp details that rival injection-molded parts, and ±0.15% XY dimensional tolerances keep assemblies fitting right. With 20+ materials, validated print settings, and a complete wash-and-cure ecosystem, the Form 4 series takes users from file to finished part with minimal training. Anyone can learn to print in about 15 minutes.


Features

  • Fast: Most prints under 2 hours
  • Accurate: ±0.15% XY dimensional tolerances; lower peel forces, light-touch supports, highly collimated light, and pre-tuned anti-aliasing
  • Reliable: 98.7% print success rate (measured by an independent testing firm); six intelligent control systems and remote monitoring
  • Versatile materials: 20+ resins, including glass-filled, ABS-, PP-, and HDPE-like engineering resins, investment casting resins, true silicone, and technical ceramic
  • Open Material Mode: Print any 405 nm photopolymer resin with customizable settings
  • Easy setup: One-Click Setup in PreForm software automatically orients, supports, and lays out parts, with live printability checks
  • Clean handling: Mess-free, interchangeable cartridges and tanks, automatic resin dispensing, and an optional Resin Pumping System
  • Remote management: Track prints, queue jobs, and monitor consumables across multiple printers, users, or locations
  • Built to last: Long-lasting consumables and robust hardware engineered for years of use

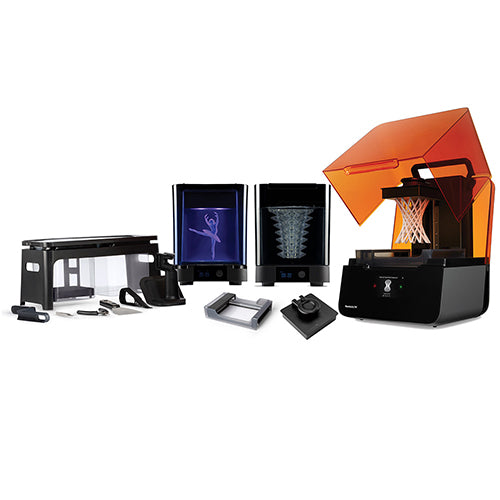

Kit Includes:

  • Form 4 Printer
  • Form 4 Resin Tank: Every resin tank includes a reusable lid, making it easy to stack tanks and store resin outside of the machine.
  • Flex Build Platform: Quick-release platform for easy part removal
  • Form 4 Finish Kit: Includes two rinse buckets, rinse basket, removal tool, plastic tank scraper, Build Platform jig, flush cutters, squeeze bottle, and disposable nitrile gloves.
  • Form 4 Mixer: Improves material performance by keeping resin homogenous in the tank during the printing process. A Resin Mixer is required anytime you are printing.


Specifications: Form 4

  • Technology: Low Force Display™ (LFD)
  • Build volume (W × D × H): 20 × 12.5 × 21 cm (7.9 × 4.9 × 8.3 in)
  • Layer thickness (Z resolution): 25–200 µm (0.001–0.008 in)
  • XY resolution: 50 µm
  • Average print speed (100 µm layers): 40 mm/h
  • Maximum print speed: 100 mm/h
  • Printer weight: 18.3 kg (40.4 lb)
  • Printer dimensions (W × D × H): 39.8 × 36.7 × 55.4 cm (15.7 × 14.5 × 21.9 in)
