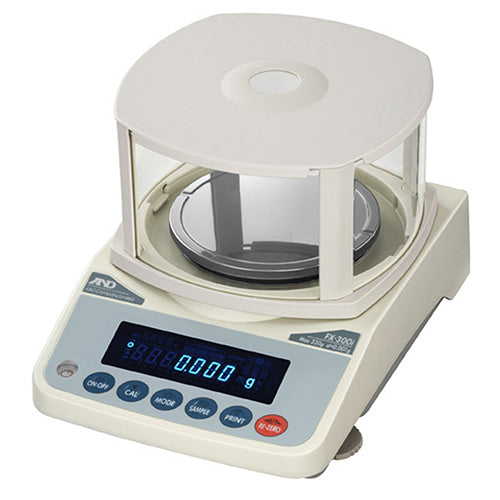

A&D Scale FX-300i (Capacity: 320g)
A&D Scale FX-300i (Capacity: 320g)
Backordered
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Data Sheet
Product Description
A&D Company, based in Japan, has been manufacturing electronic balances for over 30 years and is well known for high accuracy, long life and low cost – ISO 9000 Certified. The A&D FX-300i is a multi-function, legal for trade scale that is the perfect size for any retail counter or workspace. The FX-300i has a 320 gram capacity that can be programmed to weigh in a wide variety of modes including carats, grams, ounces (AV), pounds, troy ounces, pennyweights, and grains. It will also do parts counting and percent mode. The unit is easy to set up and program.
For jewelry applications, the FX-300i has the ability to weigh up to 1600 carats with an accuracy of 0.005 carats and 320 grams with an accuracy of 0.001 grams; making this scale much more accurate than other scales on the market today. The FX-300i comes with a 120V AC adapter and a 3-3/8" tall wind screen. The scale measures 10-3/8" long by 7-5/8" wide by 6-7/8" tall when the wind screen is installed. The pan size is 130mm (5.2") round. 115V A/C adapter is included. Made in Japan.
Features:
- Compact SHS (Super Hybrid Sensor) 1 Second Stabilization
- Quick USB interface (FXi-02)
- Standard RS-232C interface
- Comparator function
- Digital calibration function
- LAN-Ethernet interface (FXi-08) with WINCT-Plus software
- Five-year limited manufacturer's warranty
| A&D FX-300i Scale |
|
|
| Item # | 200-3656 | |
| Capacity | Resolution: |
320 x 0.001 grams 11.28 x 0.00005 oz. 0.705 x 0.000005 lb. 10.28 x 0.00005 tr. oz. 206.2 x 0.001 dwt 1600.0 x 0.005 carat 4938 x 0.02 grains |
|
| Counting Mode*: | Maximum 100 pieces with min. unit weight of 0.001 gram* | |
| Linearity: | ±0.002g | |
| Repeatability | Standard Deviation: | 0.001g | |
| Display Type: | (VFD) Vacuum Fluorescent Display | |
| Display Refresh: | 10 times/second | |
| Overall Dimensions: (W x D x H): | 7.6" x 10.33" x 6.9" 193 x 262.5 x 175.25mm |
|
| Weighing Pan Dimensions: | 5.2" x 5.2" 130 x 130mm |
|
| Electrical: | 115V, AC Adapter Included | |
| Operating Temperature: | 41°F to 104°F | 5°C to 40°C less than 85% R.H. (non-condensing) |
|
| Net Weight: | 5.5 lbs | 2.5 kg | |
| Shipping Weight: | 6 lbs. | 2.8 kb |
* Counting mode is not legal for trade.
