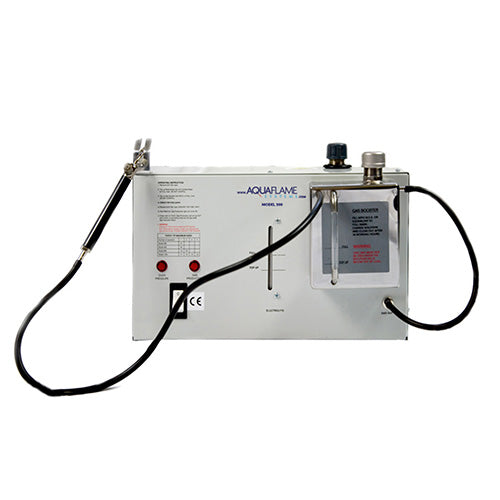

Aquaflame Soldering Torch Model 500
Aquaflame Soldering Torch Model 500
Available on Backorder
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Instruction Manual
Product Description

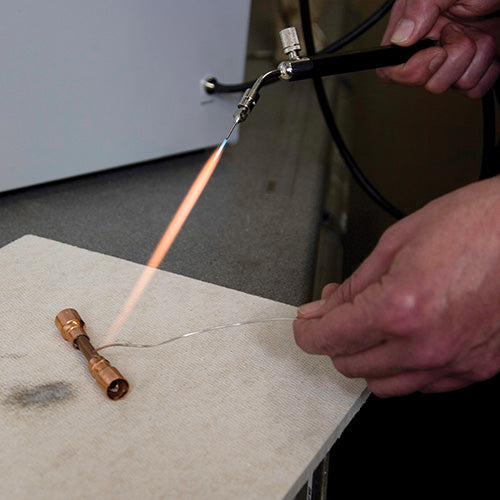

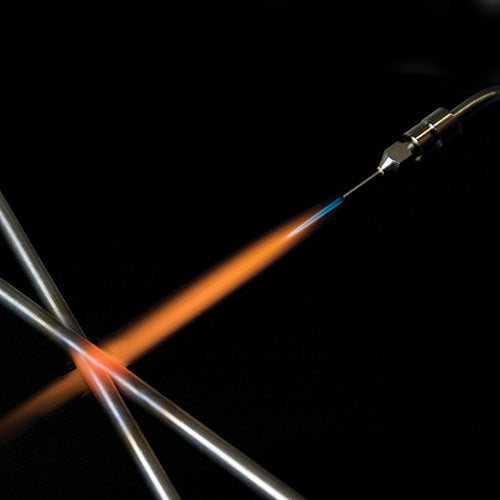

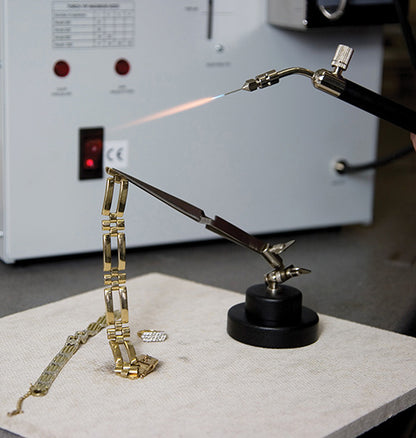

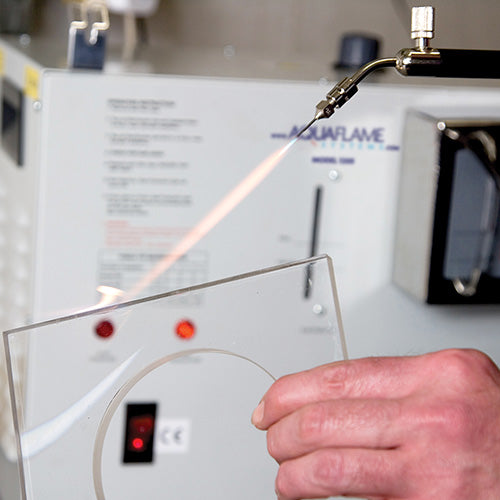

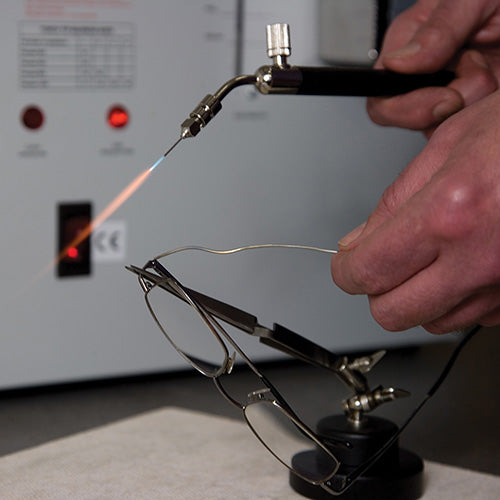

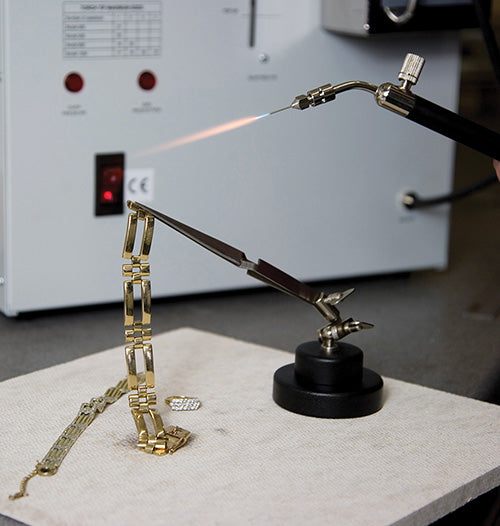

The Aquaflame 500 is a compact hydrogen torch that runs on distilled water. An internal electrolysis cell splits water into hydrogen and oxygen, producing a clean oxyhydrogen flame — no gas cylinders, no pressure tanks. The only byproduct is water vapor, which makes it a good fit for enclosed workspaces. Used for soldering and brazing gold, silver, stainless steel, and select titanium alloys, as well as acrylic polishing and dental lab work.
Features
- Runs on distilled water and an electrolyte solution. No gas cylinders or pressure tanks required!
- Reaches 3,300°C — handles platinum, gold, silver, and stainless steel
- 5 tip sizes included (#20–#24, 0.60–0.31mm bore)
- Built-in flashback arrestor for continuous-use safety
- Single-operator system with a compact bench footprint
- 2-year warranty
Required Chemicals
- Electrolyte: KOH dry crystals, Item 8300043 (300g). One bottle per fill.
- Booster fluid: Methyl Ethyl Ketone (MEK), Item 8300042 (1 qt).
- Aquaflame systems are approved for MEK booster and dry KOH electrolyte only. Do not use methanol-based flux or premixed liquid electrolytes. They are not compatible with Aquaflame.
Setup Kit

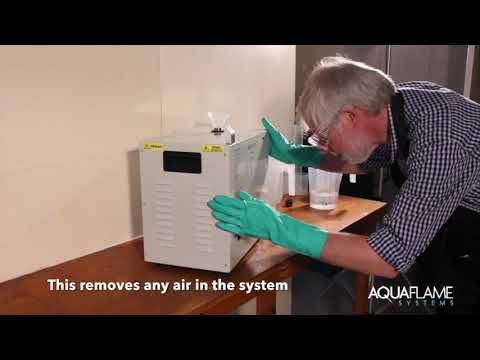

The Hydrogen Torch Setup Kit (Item 8301085) includes measuring beakers, a graduated cylinder, a stirring rod, safety goggles, and disposable gloves — everything needed for safe electrolyte preparation.
| Specification | Details |
|---|---|
| Gas Production | 75 L/hr |
| Max Temperature | 3,300°C (5,972°F) — suitable for platinum |
| Power | 500W |
| Torch Tip Range | #20–#24 (0.60–0.31mm bore) |
| Max Operators | 1 |
| Machine Dimensions (L × W × H) | 16" × 8" × 12" |
| Shipping Weight | ~44 lbs |
| Warranty | 2 years (as long as user performs annual maintenance) |
| Origin | United Kingdom, CE approved |
