CBN Pins, "BX" Series - BX-188
CBN Pins, "BX" Series - BX-188
SKU: 2471880
|
In Stock, 8 Available
Price will appear in cart at checkout
Regular price
$20.37
/ Each
Sale price
$20.37
/ Each
Regular price
$20.37 USD
0% Off
Unit price
/
per
Product Specifications
Product Specifications
Brand:
Misc
Bur Diameter:
3/16"
Bur Material:
Cubic Boron Nitride
Bur Shape:
Cylinder
Diameter:
3/16"
Diamond Grit:
Coarse (80/100 Grit)
Grit:
Coarse
Item Length:
3"
Max RPM:
60,000 - 120,000rpm
Package Size:
Single
Shank Size:
1/4"
Style:
BX-188
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Warning
Warning
Cancer
www.P65Warnings.ca.gov.

Product Description
Our CBN pins are recommended for use on high carbon, high chrome, high speed steels, such as: M2, M3, M7 and T15; die steels, such as: D2, D3, HB, A & O; alloy steels (harder than 50Rc); nickel and cobalt base super alloys; titanium and stainless steels. The cutting edges will last longer, resist breakdown better, produce more ground parts per hour, and improve the quality of the finished product. Overall costs are reduced.
When heat distortion is an important factor, CBN is the wise choice because it runs cooler than diamond.

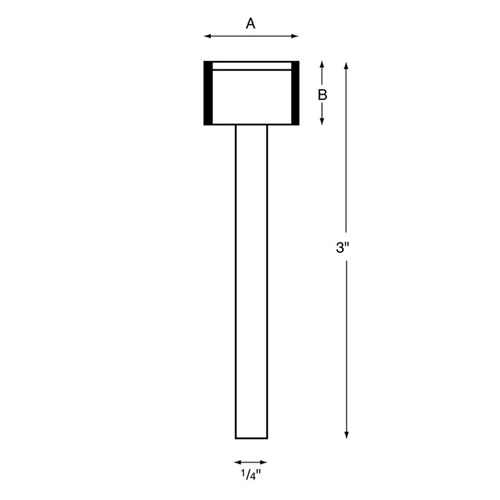

All CBN "BX" Series Pins measure 3" long overall on 1/4" shanks. All are 80/100 grit.
(For carbides and extremely hard steels and ceramics, we recommend our Diamond Pins.)
When heat distortion is an important factor, CBN is the wise choice because it runs cooler than diamond.
All CBN "BX" Series Pins measure 3" long overall on 1/4" shanks. All are 80/100 grit.
(For carbides and extremely hard steels and ceramics, we recommend our Diamond Pins.)
Maximum RPMs are based on 1/2" overhang.
