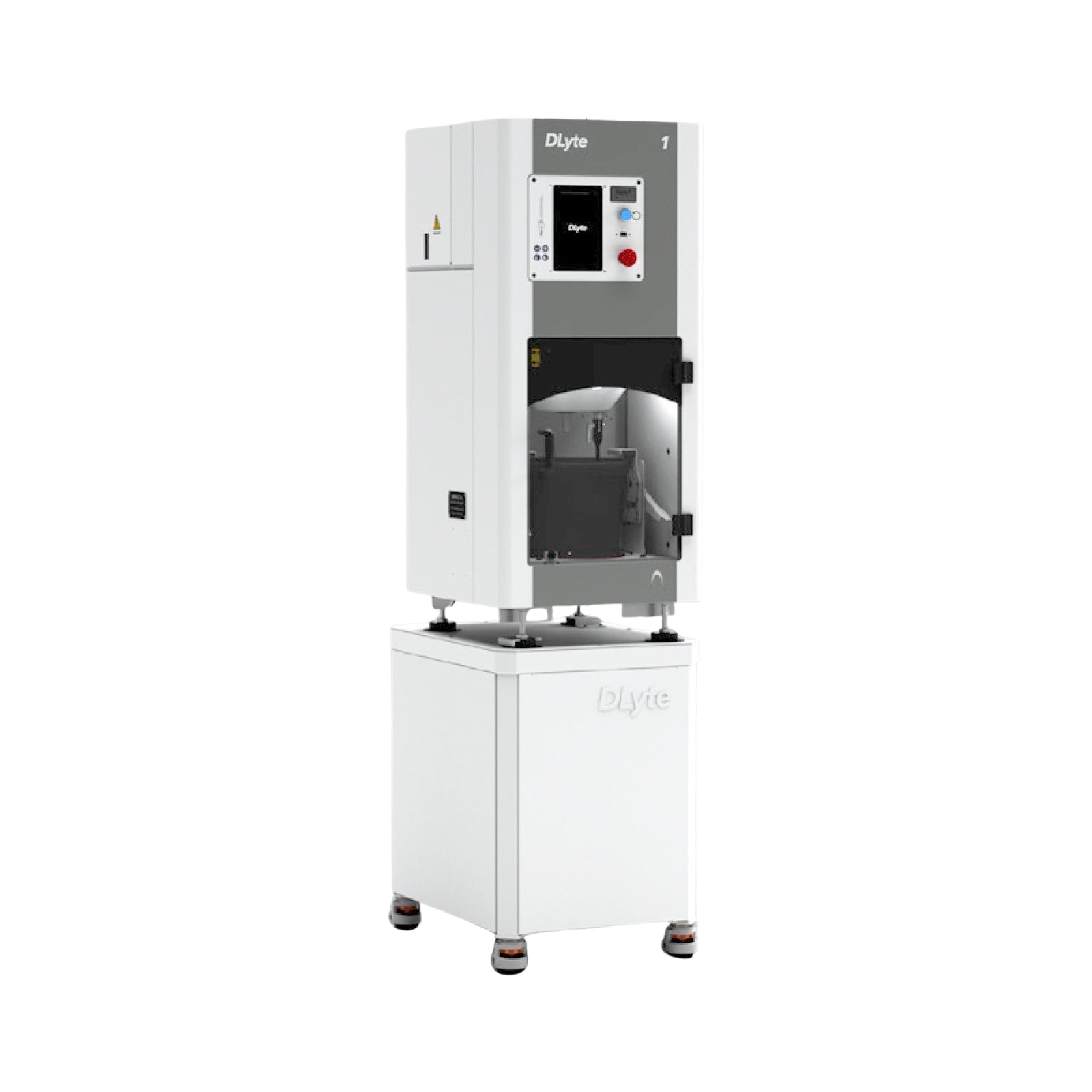

DLyte 1 Standard Dry Electropolisher
DLyte 1 Standard Dry Electropolisher
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Data Sheet
Product Description
DLyte 1 is one of the smallest metal surface finishing equipment using dry electropolishing technology (the smallest in their Compact Series). It is designed for high-value, very small and fragile and delicate parts that require high-demanding finishing requirements, and for R&D purposes. Its one-step automatic process reduces the complexity of current multi-step finishing processes, while improving cost efficiency and repeatability. This machine does not require a closed system to recycle water and sludge waste treatment machinery, therefore reducing the need for additional space, labor, and environmental licenses for waste management. DLyte 1 is designed for materials included in the Steel group, Cobalt-chrome group, Copper and Nickel based alloys group with Low Frequency parameters. Used for precision finishing, smoothing, mirror finishing, deburring, rounding, corrosion resistance and AM post processing and is especially suited for companies that require precision surface finishing of high-quality metal parts in industries such as medical devices, luxury goods, tools, and food or pharmaceuticals
Features:
- One of the smallest metal surface finishing machines using dry electropolishing technology
- Designed for high-value, small, fragile, and delicate parts with demanding finishing requirements
- One-step automatic process improves cost efficiency and repeatability
- Compatible with Steel, Cobalt-chrome, Copper, and Nickel-based alloys using Low Frequency parameters
- Ideal for industries requiring high-quality precision surface finishing, including medical devices, luxury goods, tooling, food, and pharmaceuticals
Specifications:
Workpiece Weight Capacity: 1.5 kg. (3.3 lbs)
Bucket Capacity (per cycle): 90mm Diam. x 70mm (approx. 3.5" in diameter x 2.7.5")
Overall Dimensions (LxWxH): 500x700x1867mm (approx.40.35"x34.25"x 94.29")
Machine Dimensions: 500x700x1150mm (approx.40.35"x34.25"x45-1/4")
Stand Dimensions: 500x700x717mm (approx.40.35"x34.25"x 28-1/4")
Overall Weight: 153kg (approx. 336.6lbs.)
Machine weight: 115 Kg (253 lbs.)
Stand weight: 38 Kg (83.6 lbs. )
Distilled Water Tank Capacity: 9 liters (approx. 2.38 gal.)
Air Pressure: 4-5 bar
Air Hose Inlet: 8mm Diam. or 1/4" BSP
Air Quality: Filter=5, Air Dryer=4, Oil=4 according to ISO 8573-1
Line Air Supply: 40 L/min (approx. 1.12GPM)
DLyte's Next-Generation Finishing
Developed by GPAINNOVA, DLyte is the world’s first dry electropolishing system, representing a breakthrough in automated surface finishing for high-value metal components. Trusted by medical, dental, and aerospace manufacturers worldwide, DLyte systems are renowned for their ability to achieve mirror-like finishes while maintaining the strictest dimensional tolerances. Utilizing patented DryLyte® technology, these systems replace traditional liquid electropolishing and labor-intensive manual processes, providing a repeatable, automated solution for complex geometries in cobalt-chrome, titanium, and stainless steel and other specialized alloys including carbide.
