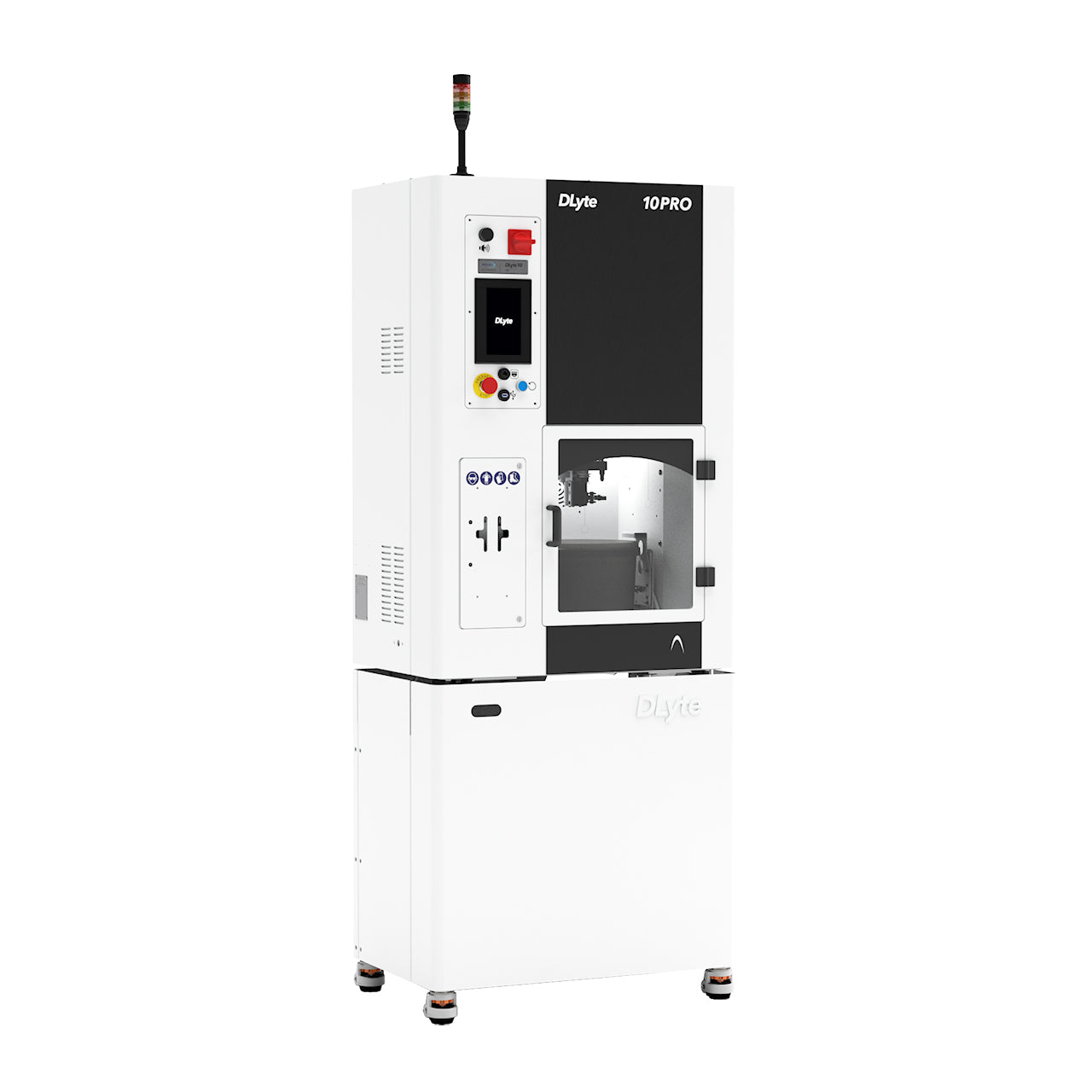

DLyte 10 PRO High-Performance Dry Electropolisher
DLyte 10 PRO High-Performance Dry Electropolisher
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Data Sheet
Product Description
DLyte 10PRO metal surface finishing equipment uses the dry electropolishing technology, suitable for companies with medium manufacturing volume. It combines a planetary movement and a vertical back-and-forth motion inside the drum containing the electrolyte media. It is suitable for steel, cobalt-chrome, titanium, copper-based, nickel-based and aluminum materials. Its advanced PLC-based electronics allows to apply asymmetric pulses with low and high frequency, and parameter concatenation. Used for precision finishing, smoothing, mirror finishing, deburring, rounding, corrosion resistance and AM post processing. Light tower, anti-vibration support, conductivity and temperature calibration system are included. Work bowl and holder are not included.
Specifications:
Capacity (per cycle): 140mm Diam. x 75 mm (approx. 3.5" in diameter x 2.75")
Overall Dimensions: (W x D x H) 900 x 1100 x 2260 mm (approx. 35-1/2" x 43-1/2" x 89")
Machine Dimensions (W x D x H) 900 x 1100 x 1470 mm (approx. 35-1/2" x 43-1/2" x 58")
Support Dimensions 900 x 11005 x 790 mm (approx. 35-1/2" x 43-1/2" x 31")
Overall Weight: 238 kg. (523.6 lbs.)
Machine Weight: 174 kg (382.8 lbs.)
Support/Base Weight: 64 kg (140.8 lbs.)
Electrical: 220V - 240V, 3 kW (single phase with industrial plug) 50-60 Hz
Air pressure 4-5 bar (air connector: 8mm Ø or 1/4’ BSP’)
Air consumption: 40 l/min. The air quality must be 1.5.1* according to ISO 8573. *Air quality required for a maintenance every 6 months (change of filters).
Distilled water tank capacity: 3 l (drain valve and external antisabotage value included)
Noise level: <70 dB(A)
HMI size: 7”
DLyte's Next-Generation Finishing
Developed by GPAINNOVA, DLyte is the world’s first dry electropolishing system, representing a breakthrough in automated surface finishing for high-value metal components. Trusted by medical, dental, and aerospace manufacturers worldwide, DLyte systems are renowned for their ability to achieve mirror-like finishes while maintaining the strictest dimensional tolerances. Utilizing patented DryLyte® technology, these systems replace traditional liquid electropolishing and labor-intensive manual processes, providing a repeatable, automated solution for complex geometries in cobalt-chrome, titanium, and stainless steel and other specialized alloys including carbide.
