Product Description

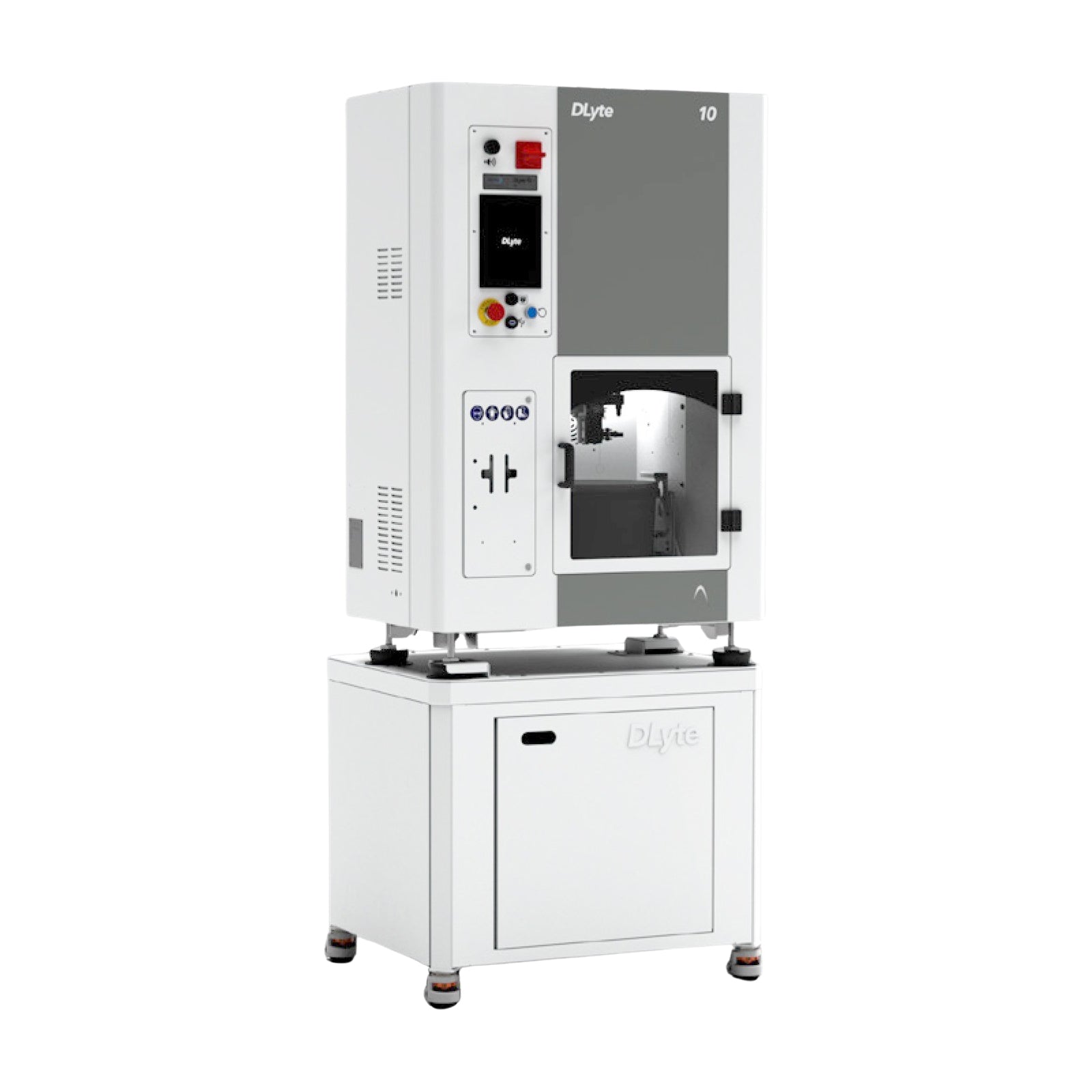

The DLyte 10 metal surface finishing equipment uses dry electropolishing technology, suitable for companies with medium manufacturing volume. It is designed for high value, very small and fragile and delicate parts that require high-demanding finishing requirements, and for R&D purposes. Its one-step automatic process reduces the complexity of current multi-step finishing processes, while improving cost efficiency and repeatability. This machine does not require a closed water recycling system nor sludge waste treatment machinery, therefore reducing the need for additional space, labor, and environmental licenses for waste management. It is suitable for pieces with a working volume capacity of 140 Ø mm x 75 mm and a maximum weight of 2.5 kg. designed for materials such as steels, cobalt-chrome, copper, and nickel-based alloys with low frequency parameters. Used for precision finishing, smoothing, mirror finishing, deburring, rounding, corrosion resistance and AM post processing. Suitable for companies that require precision surface finishing of high-quality metal parts in industries such as medical devices, luxury goods, tools, and food or pharmaceuticals.
Features:
- Accommodates parts with a working volume capacity of 140Ø mm x 75 mm and a maximum weight of 2.5 kg
- Metal surface finishing machine using dry electropolishing technology, suited for companies with medium manufacturing volumes
- Designed for high-value, small, fragile, and delicate parts with demanding finishing requirements, as well as R&D applications
- One-step automatic process simplifies traditional multi-step finishing workflows, improving cost efficiency and repeatability
- Compatible with Steel, Cobalt-chrome, Copper-based alloys, and Nickel-based alloys using Low Frequency parameters
- Capable of precision finishing, smoothing, mirror finishing, deburring, rounding, corrosion resistance enhancement, and AM post-processing
- Ideal for industries requiring high-quality precision surface finishing, including medical devices, luxury goods, tooling, food, and pharmaceuticals
Specifications:
Workpiece Weight Capacity: 2.5 kg. (5.5 lbs)
Bucket Capacity (per cycle): 140mm Diam. x 75mm (approx. 3.5" in diameter x 2.7.5")
Overall Dimensions (LxWxH): 820 x 685 x 2000 mm (approx. 32-1/4" x 27" x 78-3/4")
Machine Dimensions (LxWxH): 820 x 685 x 1280 mm (approx. 32-1/4" x 27" x 50-1/2")
Support/Base Dimensions (LxWxH): 820 x 685 x 720 mm (approx. 32-1/4" x 27" x 28-1/2")
Overall Weight: 238 kg. (523.6 lbs.)
Machine Weight: 174 kg (382.8 lbs.)
Support/Base Weight: 64 kg (140.8 lbs.)
Electrical: 220V - 240V, 3 kW (single phase with industrial plug)
Air Pressure 4-5 bar (air connector: 8mmØ or 1/4 BSP)
Consumption of 40 l/min. The air quality must be 1.5.1* according to ISO 8573. *Air quality required for a maintenance every 6 months (change of filters).
DLyte's Next-Generation Finishing
Developed by GPAINNOVA, DLyte is the world’s first dry electropolishing system, representing a breakthrough in automated surface finishing for high-value metal components. Trusted by medical, dental, and aerospace manufacturers worldwide, DLyte systems are renowned for their ability to achieve mirror-like finishes while maintaining the strictest dimensional tolerances. Utilizing patented DryLyte® technology, these systems replace traditional liquid electropolishing and labor-intensive manual processes, providing a repeatable, automated solution for complex geometries in cobalt-chrome, titanium, and stainless steel and other specialized alloys including carbide.
