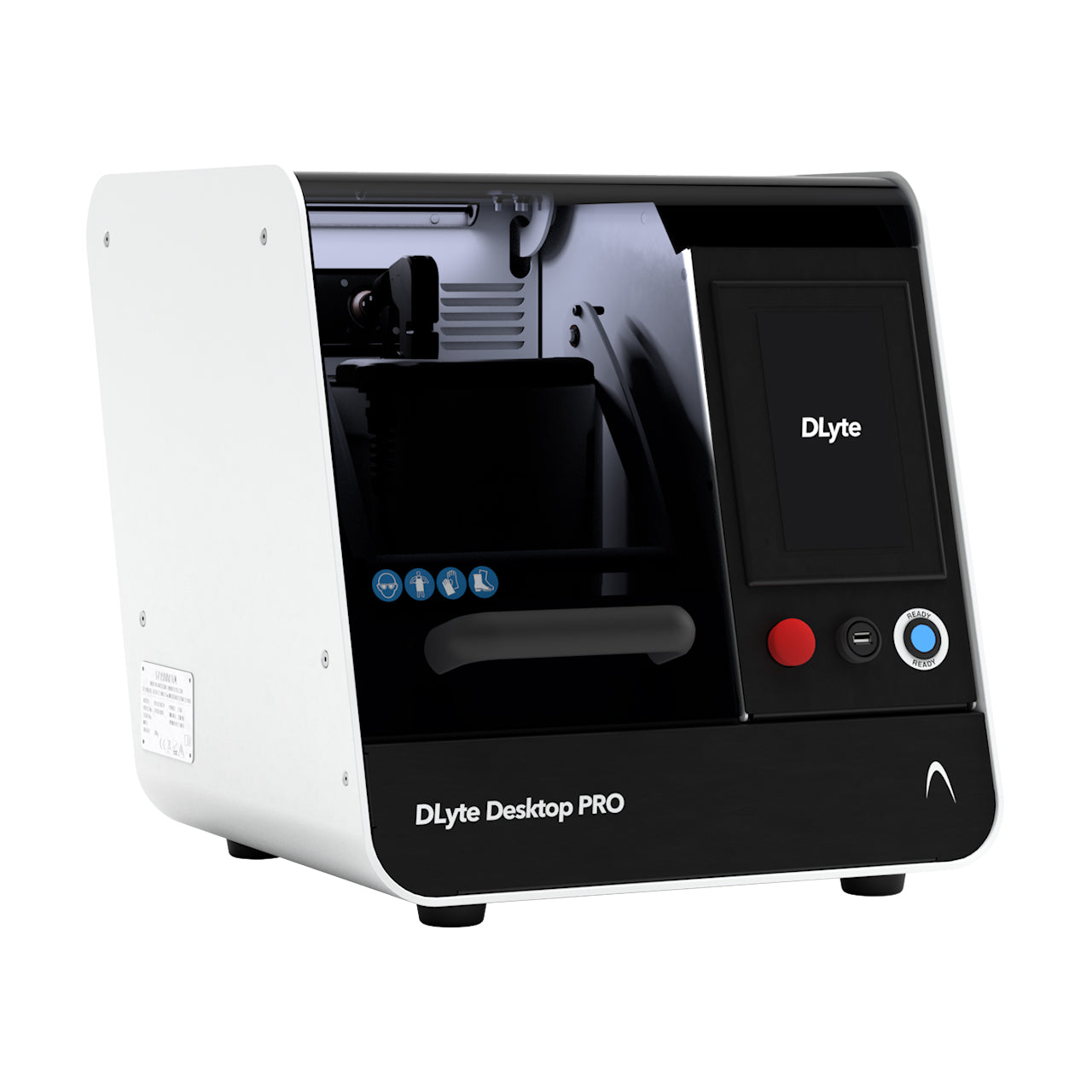

DLyte Desktop PRO Dry Electropolisher
DLyte Desktop PRO Dry Electropolisher
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Data Sheet
Product Description
The new DLyte Desktop PRO is an ultra-compact system that gathers all the advantages of any DLyte system available now on the market. This new equipment allows any company (no matter about its size), to access the disruptive dry electropolishing technology which makes it accessible to small laboratories, workshops, workrooms and SMEs needing a cost-effective solution for metal surface finishing processes.
From grinding to mirror finishing, this new set-up offers a new handy way to process any cobalt chrome, titanium, stainless-steel, aluminum, copper or nickel metal parts after casting, sintering or milling.
Powered by the same DryLyte® Technology as in their larger units, the DLyte Desktop PRO works by combining the electrical flow created by the high precision rectifier with the movement of the pieces through the electropolishing media. This results in an ion exchange, removing material only from the peaks of roughness. The process does not round edges and can access internal corners that are not easily accessed mechanically. This product is patented.
Advanced technology in a compact package. Delivers smooth, quiet performance without compromising output. Fast coupling reduces changeover time while ensuring secure holding for efficient workflow. Load and unload electrolyte media in under a minute with our 3L container. Complete production control delivers traceable, predictable results tailored to your needs. Consolidates multi-step processes into one automatic step, reducing defects and eliminating manual polishing hazards. No special installation required. Pre-set settings and advanced controls enable customization. Protects technicians from harmful chemicals using safe consumables that eliminate waste and dust hazards. Intuitive interface allows quick startup without extensive training. Single and double holders maximize capacity and scale production across all batch sizes without sacrificing quality.
Key features:
- Fast & accurate: DLyte Desktop PRO combines the exceptional performance of DryLyte technology with the ease of a plug-and-play system, allowing a high-quality surface finishing as manual polishing process. The advanced dry electropolishing technology ensures minimal material removal, geometry preservation and a brilliant shine.
- Consistency and durability: Our automated surface finishing ensures uniformity between batches and parts so that every part meets your specifications.
- Reduce the number of steps in your polishing process: With DLyte Desktop PRO, you clamp your parts onto the holder, put it in the machine, select the program and your pieces are finished while you are free to focus on other high-value activities.
- Accessible to all: With a wide range of materials, easy-to-use platform, and its affordability, the DLyte Desktop PRO offers high-quality surface finishing that every single company can access.
- Plug and play: Does not require special installation, just plug it in and in a matter of minutes, users can begin surface finishing metal parts from the comfort of their desktop. Preset settings and opt-in advanced controls allow every technician to finish high-quality metal parts at the press of a button.
Specifications:
Capacity per cycle: 80mm in diameter x 60mm (maximum volume centered to the axis)
Piece weight: 0.5 kg (approx. 1.1lbs)
Machine Dimensions (WxHxD): 450x470x520mm (approx.17-3/4"x18-1/2"x20-1/2")
Machine Weight: 43 kg (approx.94-1/2 lbs.)
Electrical:
Voltage: 230V ~ +/-10% (1 P + N + PE)
Power 1.7kW
Full load consumption: 8A
Frequency: 50-60 Hz
Short-circuit break capacity (LCS): 0.3 kA
Grounding connection: TN system
Protection Index: IP20 (polishing module) IP-22 (electrical cabinet)
DLyte's Next-Generation Finishing
Developed by GPAINNOVA, DLyte is the world’s first dry electropolishing system, representing a breakthrough in automated surface finishing for high-value metal components. Trusted by medical, dental, and aerospace manufacturers worldwide, DLyte systems are renowned for their ability to achieve mirror-like finishes while maintaining the strictest dimensional tolerances. Utilizing patented DryLyte® technology, these systems replace traditional liquid electropolishing and labor-intensive manual processes, providing a repeatable, automated solution for complex geometries in cobalt-chrome, titanium, and stainless steel and other specialized alloys including carbide.
