Durston Round Rolling Mill 150

Durston Round Rolling Mill 150

SKU: 8552023
|
Special Order
Price will appear in cart at checkout
Regular price $2,362.00 / Each
Sale price $2,362.00 / Each Regular price $0.00 USD % Off
Sold out

Product Specifications

Brand: Durston Tools®
Diameter: 60mm
Item Width: 150mm
Max Opening: 6mm
Model: Round 150RE
View full details

Product Description

Finally, round wire from a rolling mill! Mill includes a gear reduction to make it easy to roll consistently smooth round wire along with a small flat area and side roller for four half round sizes.

Simply start with a square (or round) wire and use the mill in the same way as any other manual mill. Square wire will gradually compress to round as it passes through consecutively smaller grooves. Note that a round section will be formed before the rollers are fully closed. If you continue to roll and fully close the rollers, this will create a slightly oval wire.

To avoid flashing, rotate the wire 90 degrees on every pass. If flashing forms, reduce the amount of reduction on each pass.

Specifications:

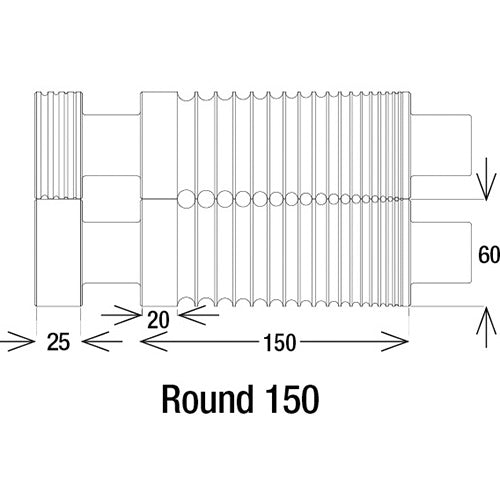

  • Extended side rolling area with 4 half-round grooves (1.5mm, 2mm, 3mm, 4mm)
  • 18 Round wire rolling grooves
  • Main rolling area: 130mm
  • Flat rolling area: 20mm
  • Roll diameters: 60mm
  • Max sheet thickness: 6mm
