E-Force® 20K Solid Handpiece - Used 5108002
E-Force® 20K Solid Handpiece - Used 5108002
In Stock, 3 left!
Used
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Data Sheet
Technical Brochure
Product Description
Used Item Sold "As Is", 60-Day Warranty, All Sales Final
The E-Force® is a game-changing micromotor system. By combining the power of a brushless motor with the flexibility of interchangeable heads, the E-Force® can meet practically any precision finishing requirement with ease. If interchanging heads are not needed for your application, try the popular and lightweight solid handpieces, which are great for extended use applications.
- Ceramic Bearings: provide longer life, less repair
- Brushless Motors: no carbon brushes to be replaced
- Slim Controller: space saving

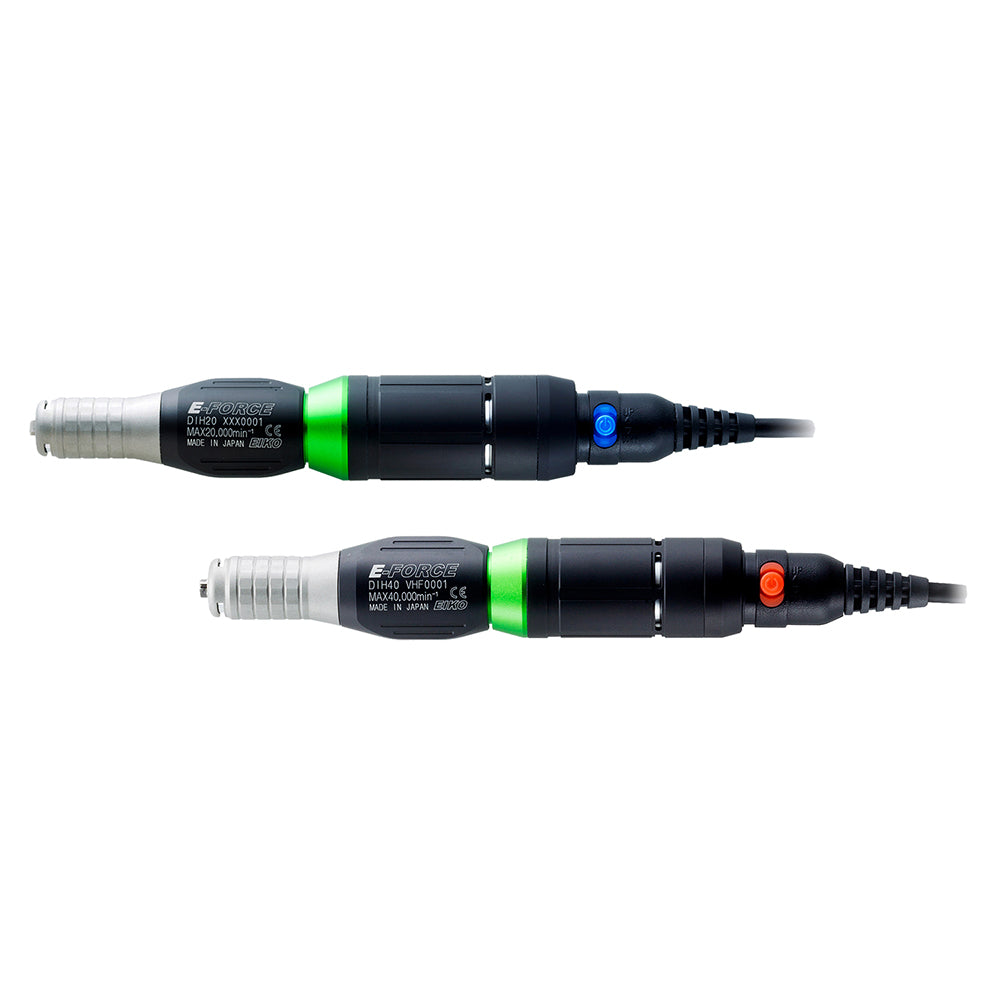

The 20K Solid Handpiece
This 20,000rpm solid, variable speed handpiece is the lightest and smallest handpiece in the E-Force® Line. Best suited for long duration and when changing heads is not necessary. The motor casing has several air slots and a cooling fan that allows heat to escape; which helps prevent overheating. At the base of the brushless motor is a multi-function switch that will turn the motor on or off and adjust the variable speed of the brushless motor. Comes with both a 1/8” and a 3/32” collet. A 3mm collet is available separately.
| Item |  |
 |
| Model | 20K Solid Handpiece | 40K Solid Handpiece |
| Item #: | 510-8002 | 510-8004 |
| Max Speed: | 20,000 min-1 | 40,000 min-1 |
| Operational Speed: | 1,000~20,000min-1 | 1,000~40,000min-1 |
| Collet Sizes:: | 3.175mm (1/8") 2.35mm (3/32") |
3.175mm (1/8") 2.35mm (3/32") |
| Max Output: | 73W | 84W |
| Max Torque: | 5.0cNm | 4.0cNm |
| Weight: | 213g | 172g |
