Product Description
The E-Force® is a game-changing micromotor system. By combining the power of a brushless motor with the flexibility of interchangeable heads, the E-Force® can meet practically any precision finishing requirement with ease. If interchanging heads are not needed for your application, try the popular and lightweight solid handpieces, which are great for extended use applications.
- Ceramic Bearings: provide longer life, less repair
- Brushless Motors: no carbon brushes to be replaced
- Slim Controller: space saving

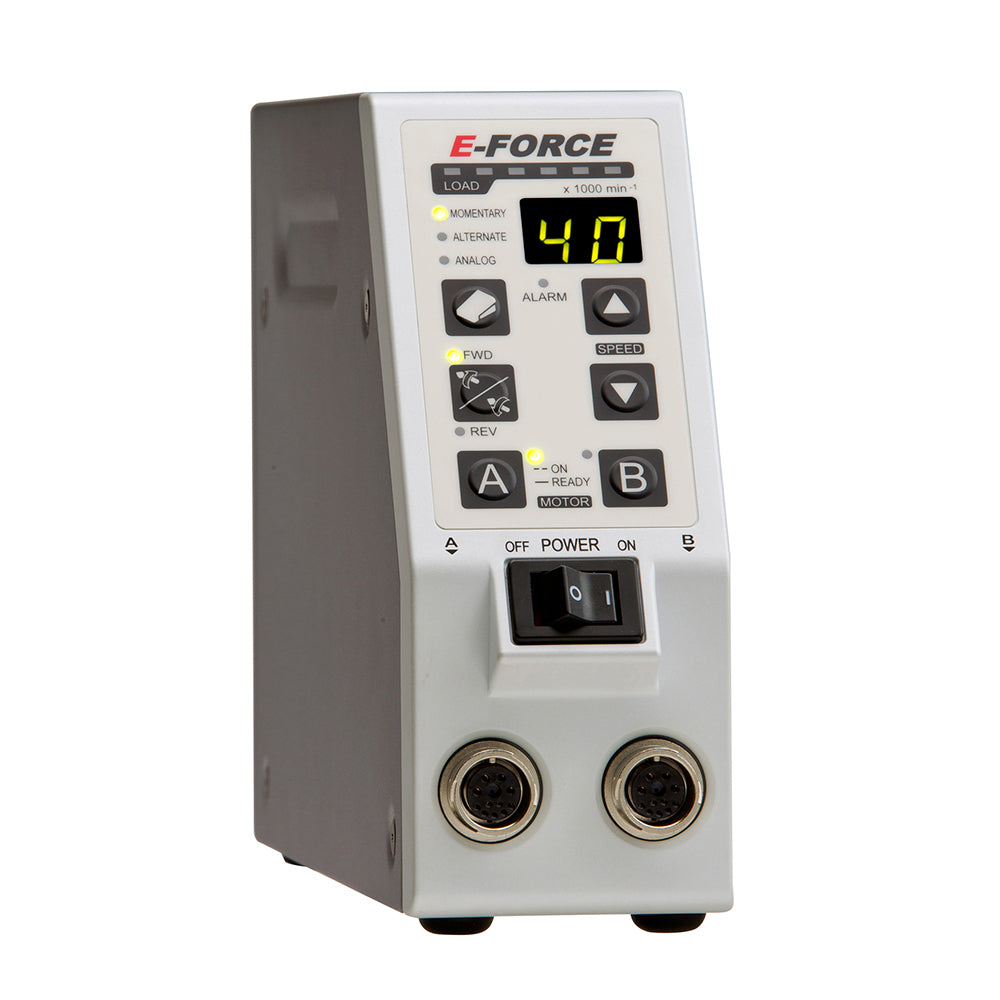

The Controller
The E-Force® controller is sleek and simplistic by design. The small foot print leaves more space at the workbench and it is easy to carry and move around the shop. Dual input ports connect up to 2 motors. Select between motor A and motor B (only 1 motor will operate at a time).
The digital display shows the RPM speed in 1,000 RPM increments, and the Load meter illuminates when the operator is using too much force.
Specifications
- Item#: 510-8000
- Electrical: AC100V, 50/60Hz
- Dimensions (WxDxH): 60x230x150mm (2.36" x 9" x 5.91")
- Weight: 1.95kg (4.3 lbs.)
