Galloni Compact Fusus
Galloni Compact Fusus
In stock, 1 left!
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Product Description

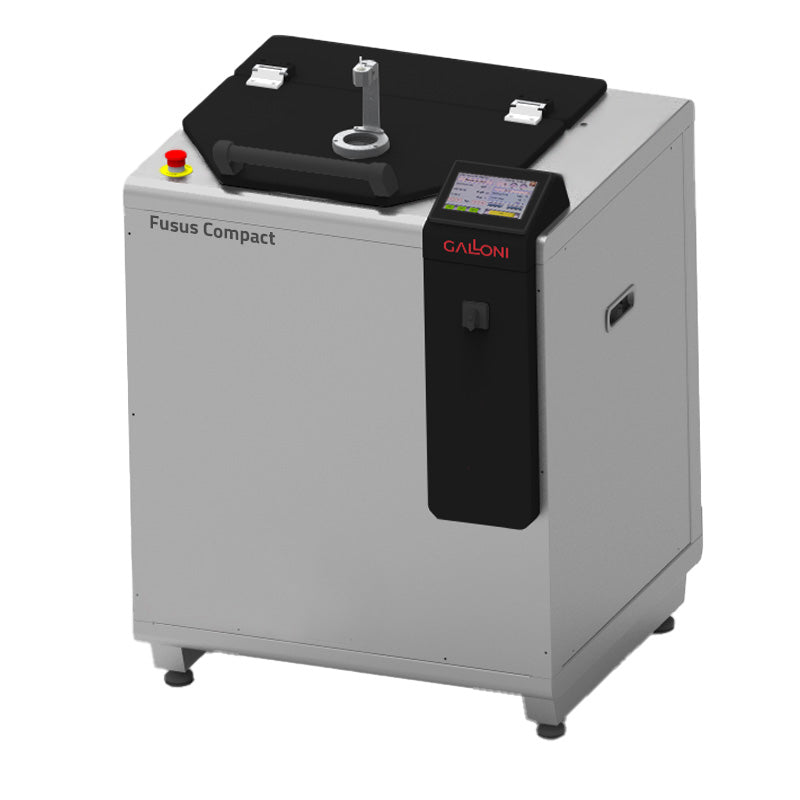

The Galloni Compact Fusus is a single-phase casting machine capable of casting 350 grams of platinum. This computerized vacuum induction centrifugal casting machine is perfect for shops working with platinum, gold and silver. Complete with integrated vacuum pump, cooling system and infrared temperature control; all you need to provide is the argon gas and an air compressor (6 bars/120PSI) and you will be ready for production. The Galloni Compact Fusus can handle a maximum flask size of 100mm in diameter by 120mm in height (approx. 3.94" diameter × 4.72" height).
The Compact Fusus offers all the power and performance of Galloni's advanced induction-melting centrifugal casting technology in a smaller, more accessible package. Ideal for jewelers and small manufacturers who want industrial-grade casting power with a compact, user-friendly design.
Key Benefits
- Casts platinum, gold, and silver with consistent, high-quality results
- Vacuum-sealed centrifugal chamber minimizes porosity and ensures dense castings
- Induction melting with infrared temperature control up to 2,200°C (3,992°F)
- Built-in cooling and vacuum systems – no external units required
- Compact footprint and easy installation with single-phase 230V power
- Programmable, computer-controlled interface for precise casting parameters
- Made in Italy and CE approved
Technical Specifications
| Specification | Details |
|---|---|
| Electrical | 230V, 1 Ph, 60Hz (other voltages available) |
| Power | 5kW |
| Max. Temperature | 2,200°C (3,992°F) |
| Max. Flask Size | 100mm (approx. 4") diameter × 120mm (4-3/4") high |
| Capacity Platinum | 350 grams |
| Capacity 18 Karat Gold | 200 grams |
| Capacity Silver | 200 grams |
| Capacity Steel | 200 grams |
| Dimensions | 32"W × 30"D × 47-1/4"H |
| Warranty | One-year manufacturer's warranty |
