Galloni G-Nova
Galloni G-Nova
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Brochure
Product Description

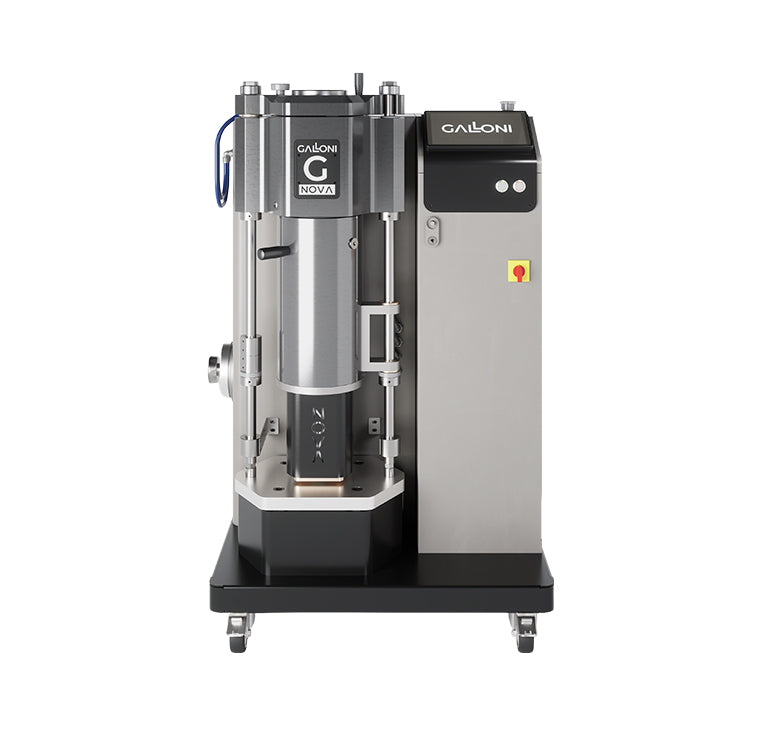

The Galloni G-Nova is a latest-generation induction vacuum pressure casting machine designed to fully automate the melting and casting process for jewelry professionals. Using advanced computer-controlled pouring and Galloni’s proven Vacuum Over-Pressure system, it delivers high-purity, dense, porosity-free castings with exceptional surface detail. It is ideal for complex geometries and thin-walled pieces. Equipped with an intuitive new touch-screen interface, the G-Nova offers unmatched temperature stability of (+/-) 39.2°F (4°C), rapid 3-to-7-minute melting cycles, and precise atmosphere control with Argon, Nitrogen, or Helium. All of this reduces long-term consumable costs and dramatically boosts workshop productivity. Required accessory information for this item is listed below*
Key Features
- Intuitive Touch-Screen Interface
- Rapid High-Pressure Casting
- Advanced Gas Atmosphere Control
- Long-Life Induction & Crucible Technology
- Superior Temperature Stability
- High Casting Capacity
- CE-Compliant & Reliable
Technical Information
| Specification | Details |
|---|---|
| Max Flask Size | ≈5.9" Ø x 11.8" (150mm Ø x 300mm) – perforated flangeless |
| Casting Capacity | 2200g - 18 kt Gold 2000g - Silver |
| Dimensions | 29.5" x 25.6" x 42.7" (750mm x 650mm x 1200mm) |
| Power Supply | Three-phase 230 V, 50/60 Hz – 10 kW |
| Temperature Range | Up to 2156°F (1180°C) - Type "K" Thermocouple |
| Pressurization | 3-bar immediate (up to 4-bar) |
| Gas Compatibility | Argon, Nitrogen, Helium |
| Weight | 489lb (222kg) |
| Compliance | CE Regulations |
Required Accessory (Sold Separately)
-
Item Name: Vacuum Pump for Galloni G1/G3 Ultimate & Nova Models (Click Here)
-
Item Number: 2650837
Recommended Use
Optimized for high-density, gas-pressurized casting in jewelry production. Ideal for complex geometries, thin-walled items, and pieces requiring superior surface definition and porosity-free results. Use with Argon, Nitrogen, or Helium depending on material and desired atmosphere control.
