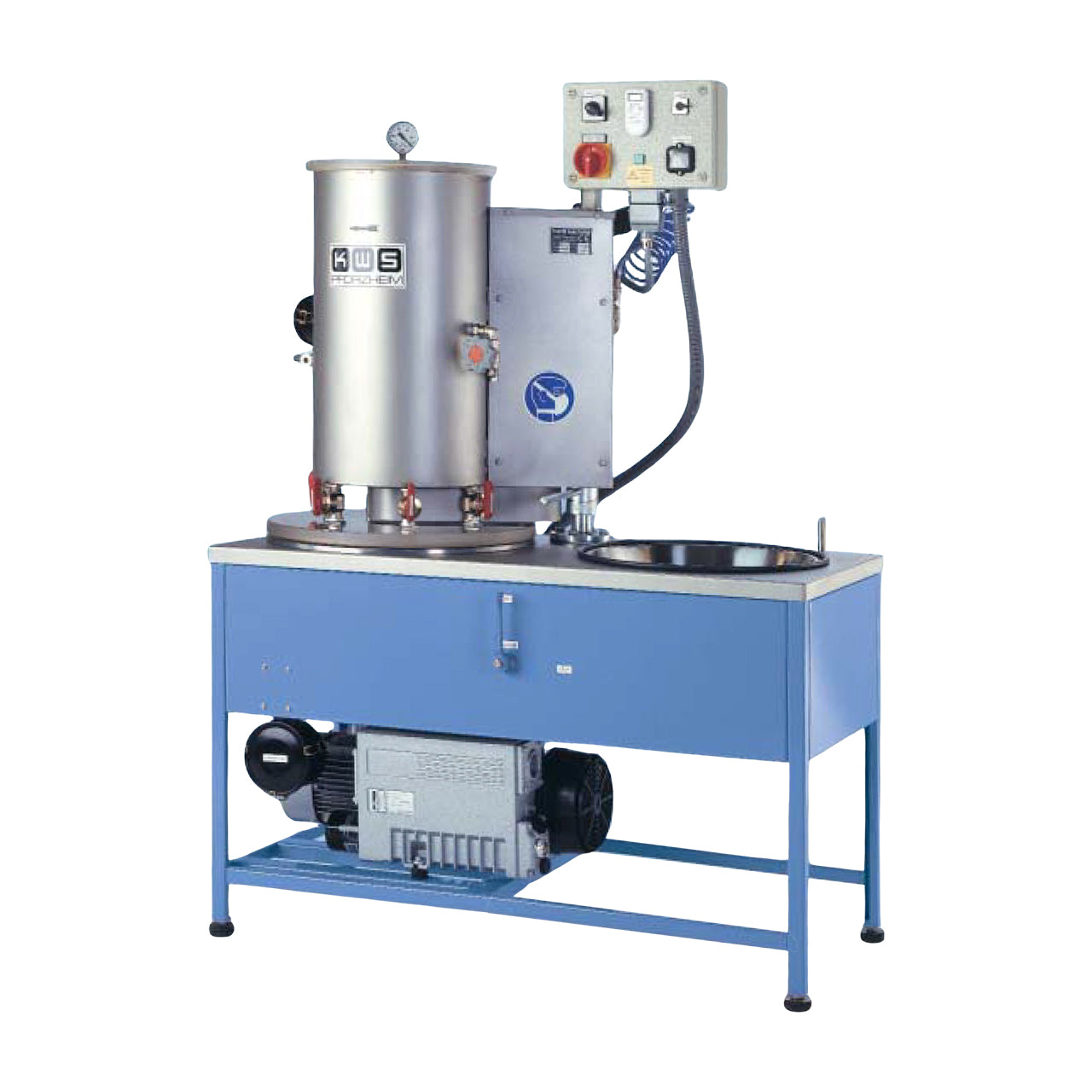

KWS EB10/16S - 6 Flask Automatic Investment Mixing Machine with Integrated Pump
KWS EB10/16S - 6 Flask Automatic Investment Mixing Machine with Integrated Pump
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Product Description
The KWS EB10/16S investment mixing machine efficiently processes 6 flasks and up to 16 kg (approx. 35 lbs.) of investment. It mixes and fills the flasks under vacuum resulting in superior casting quality. The resultant quality and the low labor requirements will give you a fast return on your investment. The company has 25 years of global experience with consistently satisfied customers who confirm the machine's exceptional quality standards. This machine measures 1130W x 640D x 1600H mm (approx. 45"x25-1/4"x63") and weighs 183kg (approx. 400lbs.).
Key Features and Benefits:
Superior Casting Quality:
- The machine includes an integrated sieve insert that filters investment powder before mixing.
- This sieving station keeps powder separate from water initially, then introduces small amounts of powder into water under vacuum.
- This process requires less water to achieve proper viscosity, resulting in denser, higher-quality plaster with no surface bubbles or air inclusions.
Simple, Clean Operation (EB 10/16S Model)
- Easy-to-use controls with two speed settings for mixing and filling
- Processes 16 kg of investment material per cycle
- Fills up to 6 flasks per operation
- The motor and stirring element remain attached during loading, preventing operational malfunctions
- Maintenance-free three-phase motor
Durability and Low Maintenance
- All components made from stainless steel or aluminum
- Special alloy filling taps resist damage from gypsum and water
- Filter system protects the vacuum pump and extends its lifespan
- Minimal wear and tear on all parts
Specifications:
Max. Flask diameter: 140mm (approx. 5.58")
Max. Flask height: 270mm (10.1/2")
Max. number of flasks: 6
Max. amount of investment: 16kg (approx. 35 lbs.)
Flask container Dia x H: 430x300mm (approx. 17"x12")
Mixing container Dia x H: 320x575mm (approx. 12-1/2"x22-1/2")
