Maxima Mobile II BLDC Model (with 2.35mm collet)

Maxima Mobile II BLDC Model (with 2.35mm collet)

SKU: 5103500
|

Available on Backorder

New
Price will appear in cart at checkout
$395.00 / Each

Product Specifications

Brand: Gesswein
Collet Size: 2.35mm
Country of Origin: Japan
Max RPM: 30,000rpm
Max Torque: 2.4 N/cm
Net Weight: 220g
View full details

Product Description

The Maxima Mobile II BLDC model is a portable micromotor system that includes a compact and lightweight handpiece with a state-of-the-art brushless motor (BLDC), eliminating the need for carbon brush replacement. This micromotor has 9 hours of use with a 2 hour charge and can run forward and reverse. The handpiece has a built in overload protection function to help prevent excessive grinding, providing additional operational safety and peace of mind. The controller clearly indicates rotation speed via a color-coded LED display, allowing users to monitor RPM and suitable for applications where speed limits are integral at a glance.

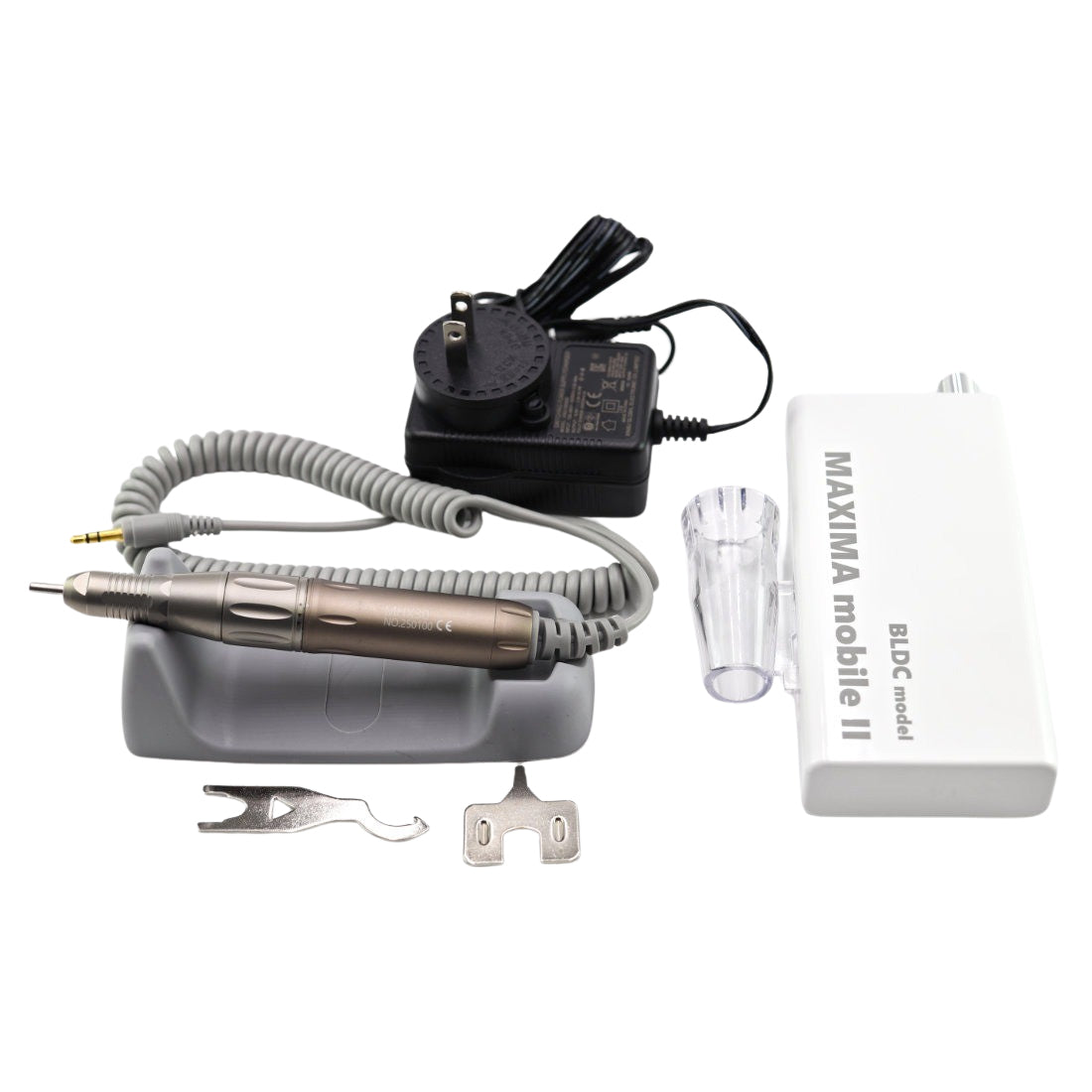

Set Includes
  • MPX30 Maxima Mobile II Controller
  • MHX30 Brushless Motor Handpiece
  • One (1) 2.35mm Collet
  • AC Adapter
  • Handpiece Holder
  • Handpiece Stand
  • Chuck Wrench
  • Chuck Joint Wrench

*Please note: always keep a bur or the spacer mandrel in the quick change handpiece. This helps maintain the longevity of the collets and prevents needs for repairs or replacements.

Technical Specifications
Specification Details
Collet Size 2.35mm (3/32")
Battery Life 9 hours of continuous use
Weight 220g
Max RPM 30,000
Handpiece Style Quick Change
Max Torque 2.4 N/cm
Dimensions 65mm × 147mm × 25mm
Electrical 100–240V, 50/60Hz
