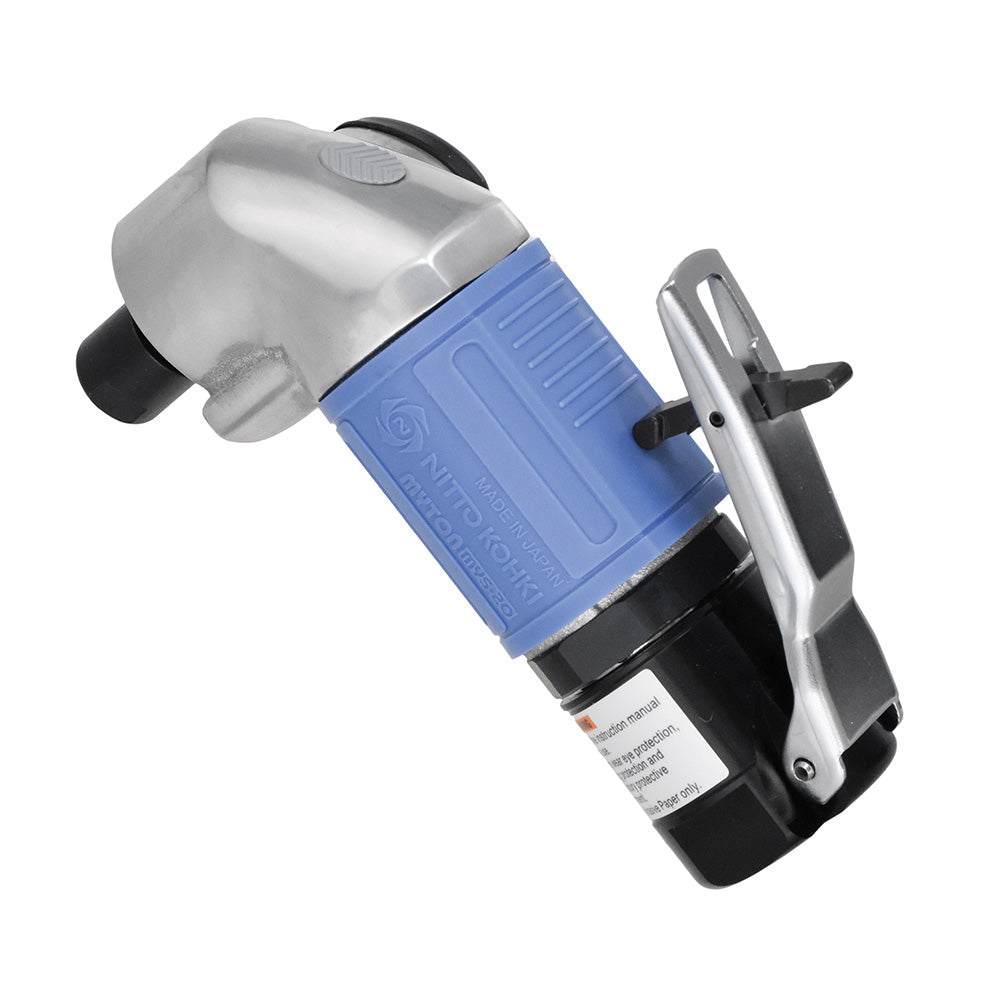

Nitto Kohki MYS-20 Air Angle Disc Sander

Nitto Kohki MYS-20 Air Angle Disc Sander

SKU: 8507017
|

In Stock, 1 left!

Price will appear in cart at checkout
Regular price $415.00 / Each
Sale price $415.00 / Each Regular price $0.00 USD % Off
Sold out

Product Specifications

Brand: Nitto Kohki
Collet Size: 1/4"

Safety, Compliance & Product Documentation

View full details

Product Description

Features:

  • Powerful, compact and lightweight
  • Redesigned side exhaust with silencer
  • A safety flip lock to prevent accidental start-ups
  • Includes 1 threaded adapter and two 14mm single-ended wrenches


This 19,000rpm, powerful, compact, right-angle sander has a low-profile head which is ideal for sanding dies or molds made out of steel or aluminum, and for finishing welds. Lightweight (1.2 lbs. (0.54kg)) and compact (1-1/2" barrel diameter) for continuous sanding in small, confined areas. The new coated gears and high-life blades are designed to offer extended run-time performance. Includes redesigned side exhaust with silencer. Accepts sanding pads on 1/4" shanks in sizes 1", 1.5", and 2" (not included). Uses abrasive discs in those same sizes. Throttle lever has a safety flip lock to prevent accidental start-ups and to automatically turn the unit off. Plastic housing reduces cold hand. Requires 1/4" NPT air connection. Use with Miniature Filter/Regulator-Lubricator (sold separately 8507349). Made in Japan.


Specifications:

·       Maximum operating pressure PSI 85 (0.59 MPa)

·       Air consumption (No load) CFM 14.8 (0.42 m3/min)

·       Rated speed (No load) RPM 19000

·       Abrasive Disc (paper) diameter inch 1", 1-1/2" or 2"

·       Chuck size inch 1/4" (6.35 mm)

·       Mass (weight) lbs 1.21

·       Sound pressure level *dB (A) 82

·       Sound power level *dB (A) 93

·       Vibration level **m/s2 3.3

·       Thread size of Air Inlet Rc 1/4

* Based on the ISO15744 measurement standard.

** Based on the 3 axes combined value measurement standard of the ISO28927-3 of the hand-held tool frequency correction vibration acceleration effective value
