NSK Emax EVOlution 50° Angle Type Handpiece Head Only
NSK Emax EVOlution 50° Angle Type Handpiece Head Only
Product Specifications
Product Specifications
Product Description

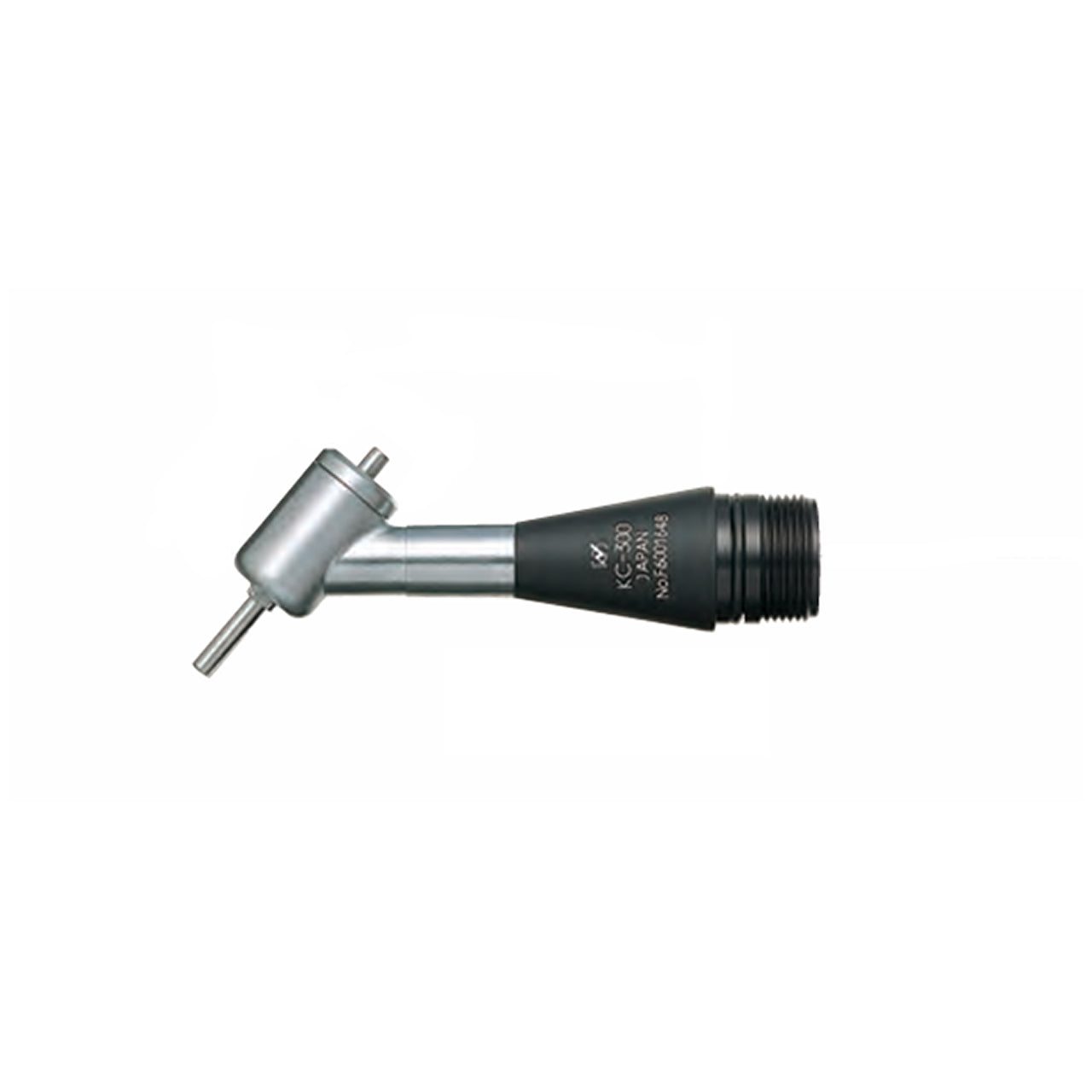

The NSK Emax EVOlution 50-Degree Angle Type Handpiece (KC-300) from NSK (Nakanishi) is engineered for grinding and polishing in corners, deep concaves, and angled recesses that straight or 90-degree handpieces cannot effectively reach. The 50-degree offset positions your bur at the ideal working angle for corner grinding, cavity finishing, and parting line cleanup on molds and dies.
A 3/4 speed reduction ratio increases torque at the cutting tip, maintaining cutting power on hard materials where direct-drive tools lose momentum. The compact head (0.50" dia x 0.79" length) fits into tight areas without sacrificing control. A 1/8" collet and wrenches are included.
Specifications
- Head Angle: 50 degrees
- Speed Reduction: 3/4 ratio (output = motor RPM x 0.75)
- Motor Direction: Reverse rotation required (produces clockwise tool rotation)
- Collet: 1/8" (3.175mm)
- Overall Length: 2.71"

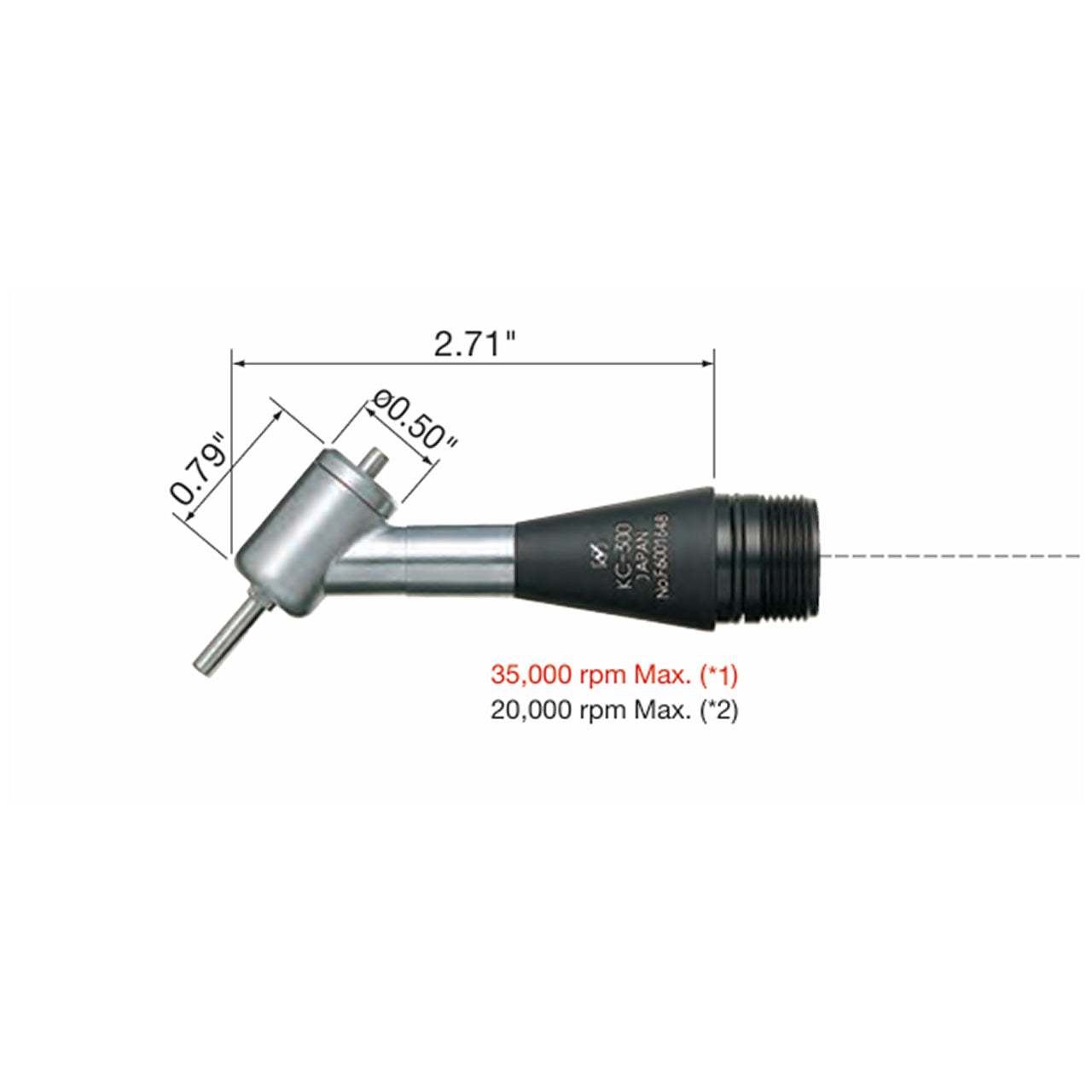

- Head Dimensions: 0.50" dia x 0.79" length
- Weight: 1.59 oz
- Includes: 1/8" collet and wrenches
- Made in Japan
Compatible Motors: NSK Emax EVOlution Standard (ENK-410S), Torque (ENK-250T), or NSK ROTUS air motor. Motor and controller sold separately.
Note that the KC - 300 rotates in the opposite direction of motor runs.
