NSK Emax EVOlution 90° Angle Type Handpiece Head Only
NSK Emax EVOlution 90° Angle Type Handpiece Head Only
Product Specifications
Product Specifications
Product Description

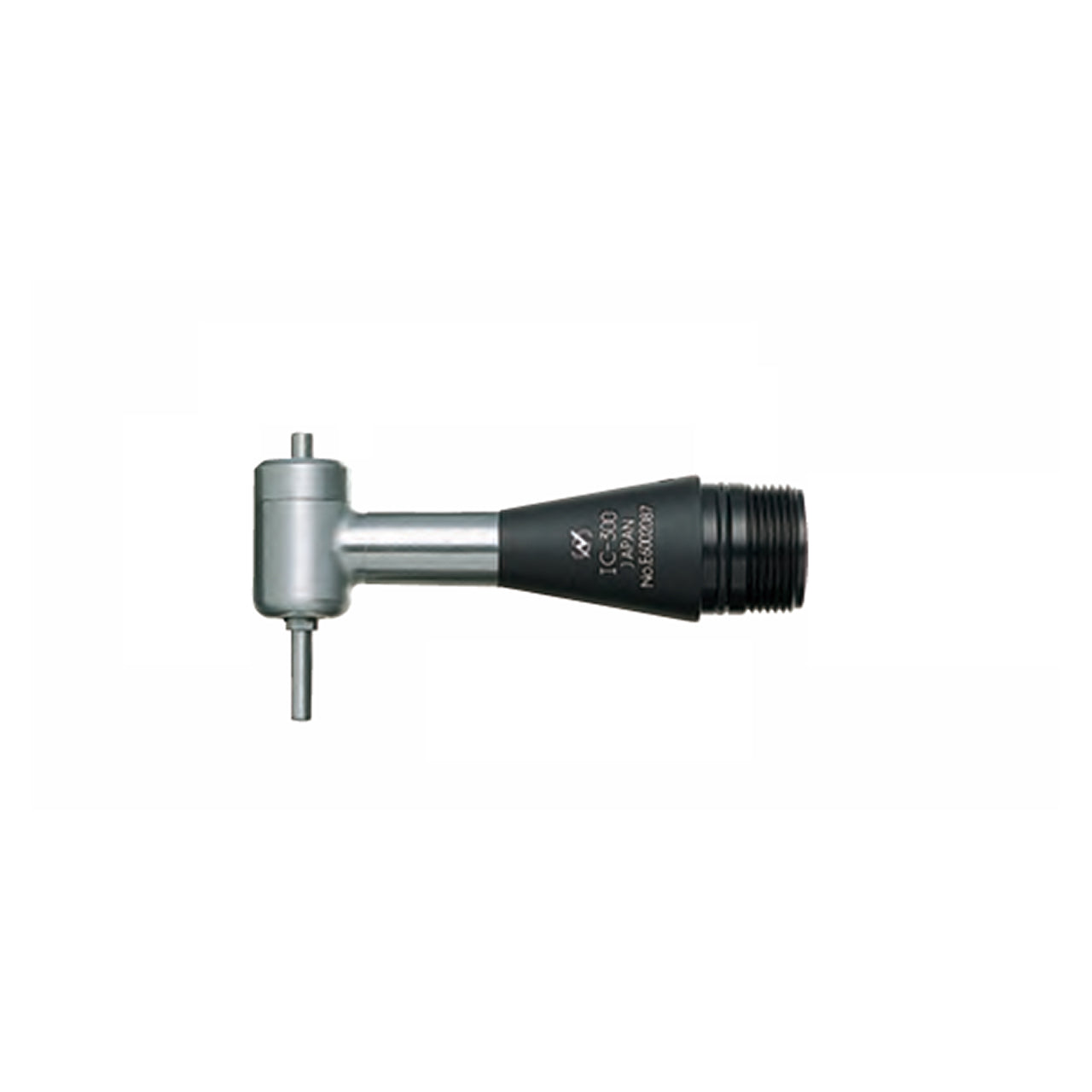

The NSK Emax EVOlution 90-Degree Angle Type Handpiece (IC-300) from NSK (Nakanishi) positions your grinding or polishing tool at a perfect right angle to the hand piece body, a helpful configuration for working flat surfaces, internal corners, pipe interiors, or bore surfaces, where a straight handpiece would interfere with the work piece or force an awkward working position.
The 3/4 speed reduction ratio increases torque at the tool tip, maintaining power on harder materials. The compact head profile (0.50" diameter and 0.80" length) fits into tight internal spaces without sacrificing control. The included 1/8" collet and wrenches have you set up and working immediately. NSK's patented dust protection in the chuck section keeps the mechanism clean and reliable in production environments.
Specifications
- Head Angle: 90 degrees
- Speed Reduction: 3/4 ratio (output = motor RPM x 0.75)
- Collet: 1/8" (3.175mm)
- Overall Length: 2.53"

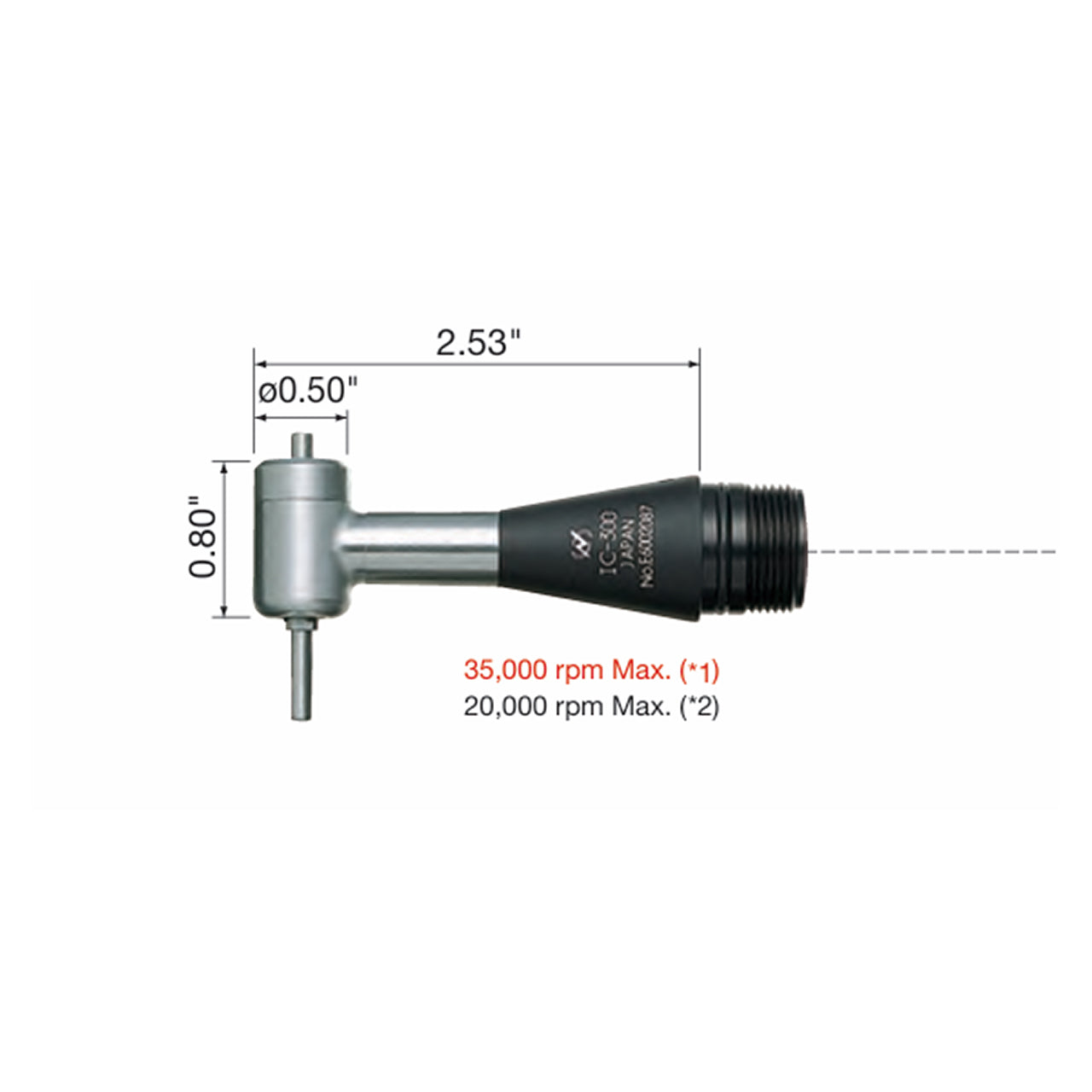

- Head Dimensions: 0.50" dia x 0.80" length
- Weight: 1.59 oz
- Includes: 1/8" collet and wrenches
- Made in Japan
Compatible Motors: NSK Emax EVOlution Standard (ENK-410S), Torque (ENK-250T), or NSK ROTUS air motor. Motor and controller sold separately.
