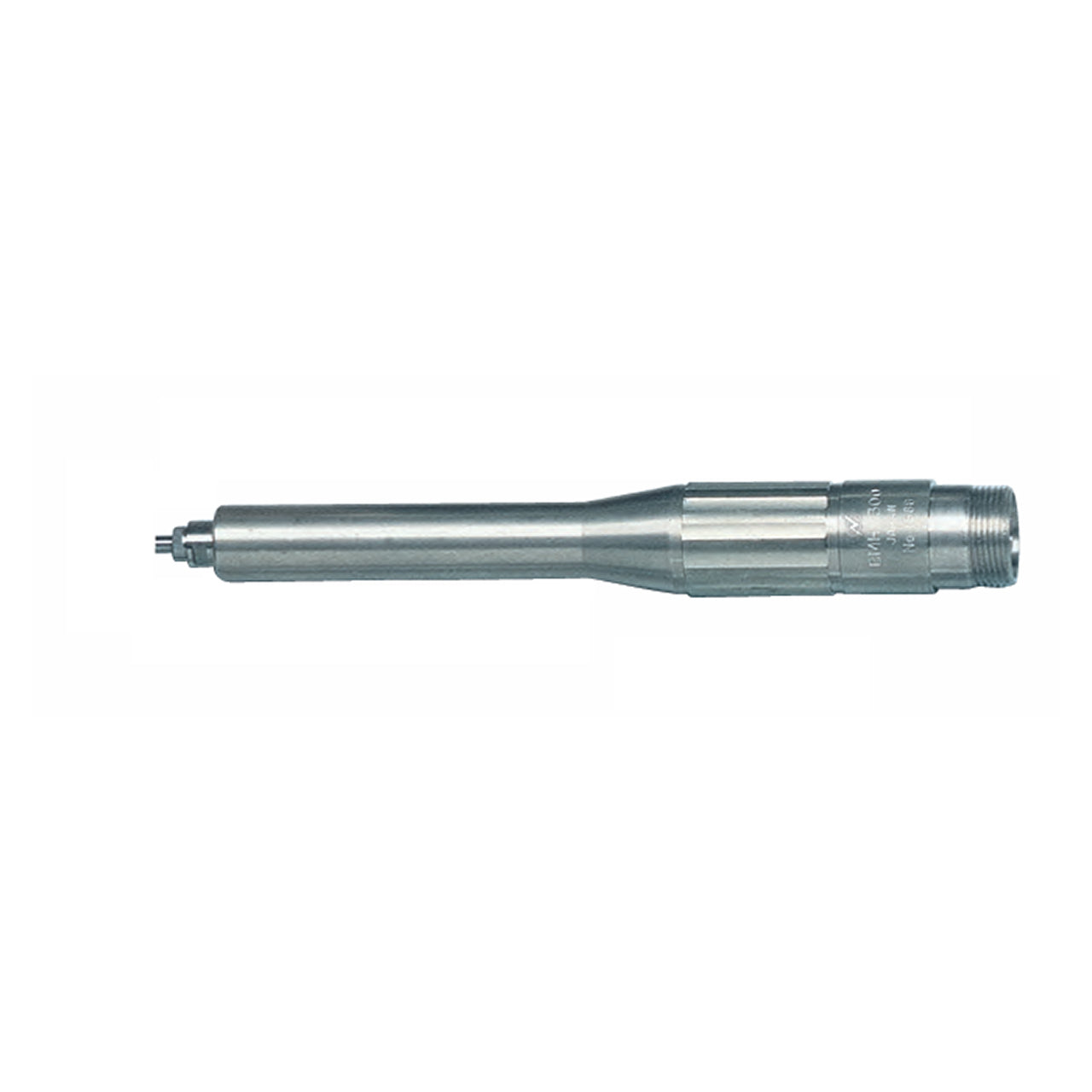

NSK Emax EVOlution / ROTUS Long-Type Handpiece Head - BMH-300
NSK Emax EVOlution / ROTUS Long-Type Handpiece Head - BMH-300
Available on Backorder
New
Product Specifications
Product Specifications
Product Description

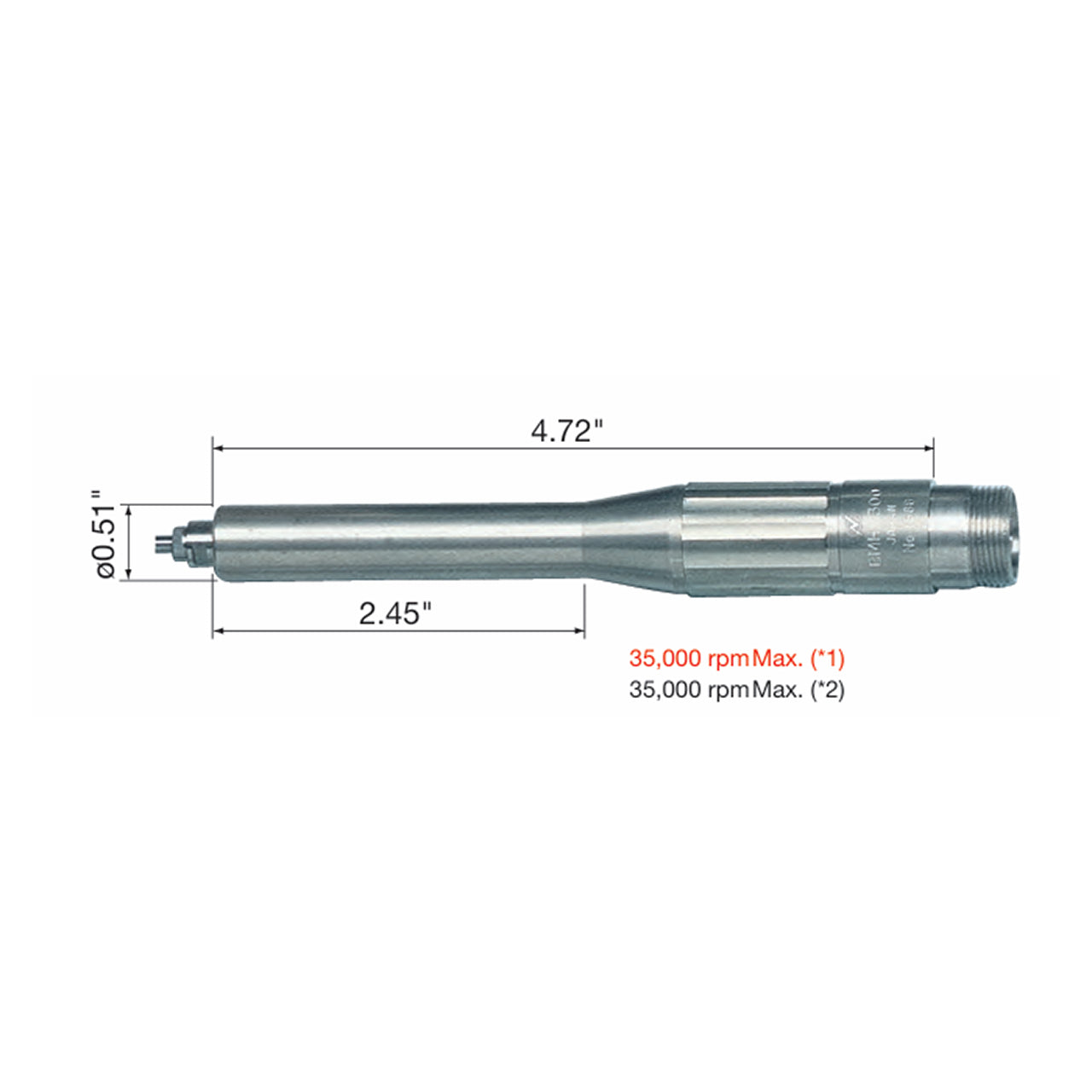

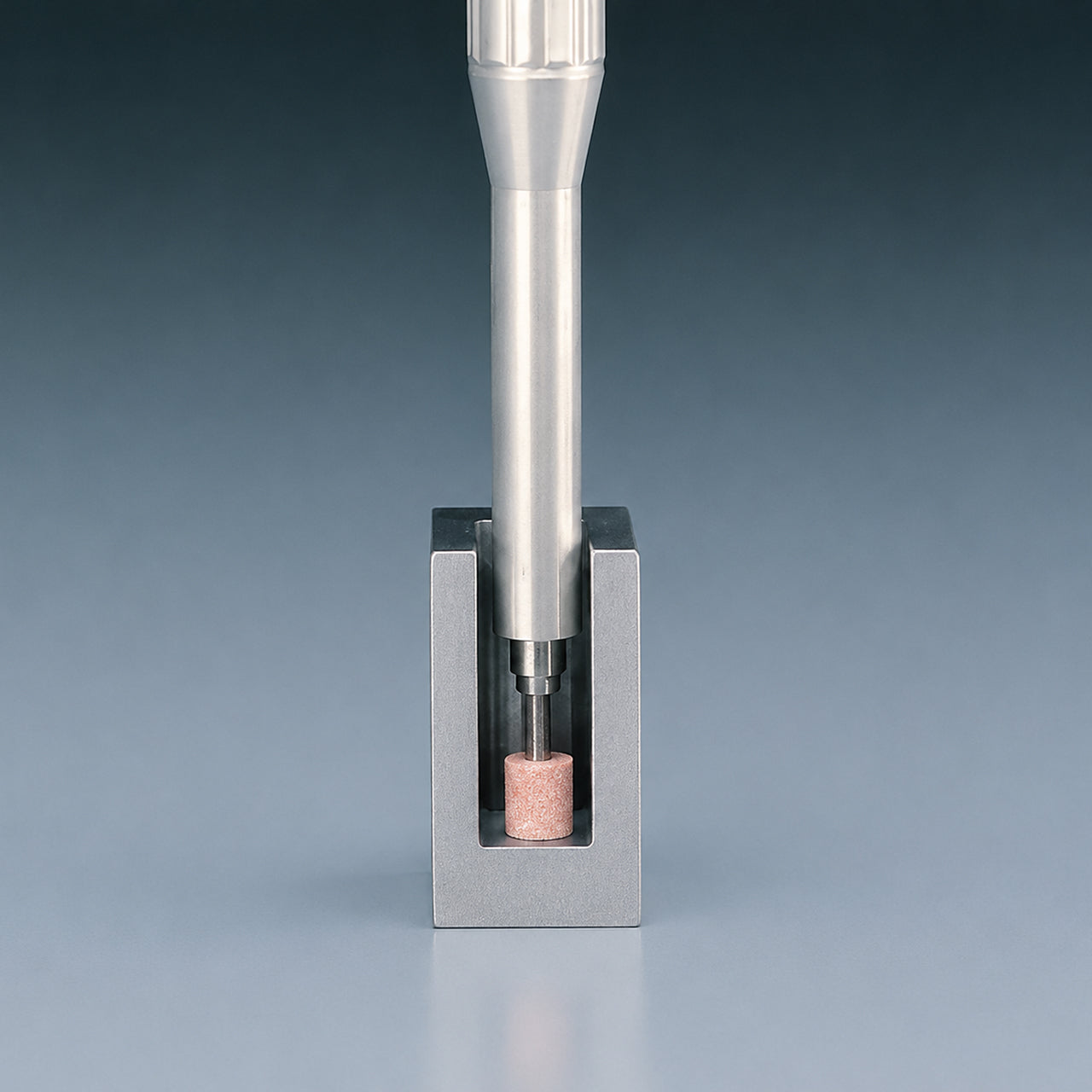

The NSK Emax EVOlution Long Type Handpiece (BMH-300) from NSK (Nakanishi) solves one of the most persistent challenges in precision machining and moldmaking: reaching the bottom of deep ribs, pockets, and blind holes without tool deflection or handle interference. Its uniquely slim nose (0.51" in diameter and 2.45" long) extends well beyond what a standard hand piece can reach, giving you clean grinding and cutting access to deep features that would otherwise require fixturing or specialized long-reach tooling.
At up to 35,000 RPM with a 1/8" collet, the BMH-300 handles a full range of carbide burs, diamond tools, and mounted points. The overall 4.72" length provides the leverage you need for consistent results in deep pockets, and the chuck exchanges without a wrench for faster tool changes in production. The included 1/8" collet gets you started immediately; additional collet sizes are available separately.
Specifications:
- Model: BMH-300
- Collet: 1/8" (3.175mm) - included; other sizes sold separately
- Overall Length: 4.72"
- Nose Diameter: 0.51"
- Nose Length: 2.45"
- Max RPM: 35,000
- Weight: 5.50 oz
- Chuck Exchange: Wrench-free
- Compatible Motors: NSK Emax EVOlution (Standard or Torque) or ROTUS air motor
- Made in Japan
Compatible Motors: NSK Emax EVOlution system and the NSK ROTUS air motor.
