Opticom Unicast PM1 Magnetic Tumbler
Opticom Unicast PM1 Magnetic Tumbler
SKU: 8520620
|
Special Order
New
Price will appear in cart at checkout
Regular price
$32,500.00
/ Each
Unit price
per
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Brand:
Opticom
Country of Origin:
Italy
Electrical:
380V. 3 Ph, 16A
Pin Capacity:
1800 - 2100g
Ring Capacity:
150
Speed Control Type:
Variable Speed
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Instruction Manual
Product Description
The PM1 Vertical Magnetic Tumbler by Opticom Unicast is engineered for professional jewelry casting shops that need fast, consistent post-processing results. Unlike standard benchtop tumblers, the PM1 lets you clean and burnish full casting trees directly after sprue removal — no need to cut individual pieces first. This dramatically cuts turnaround time without sacrificing finish quality, making it the ideal step between manual finishing and fully automated inline systems.
Features
- Vertical chamber design promotes superior media agitation for a more uniform finish
- 10" touchscreen with programmable cycle controls and automatic needle direction reversal
- 4-liter working chamber capacity; processes approximately 150–160 individual rings per cycle

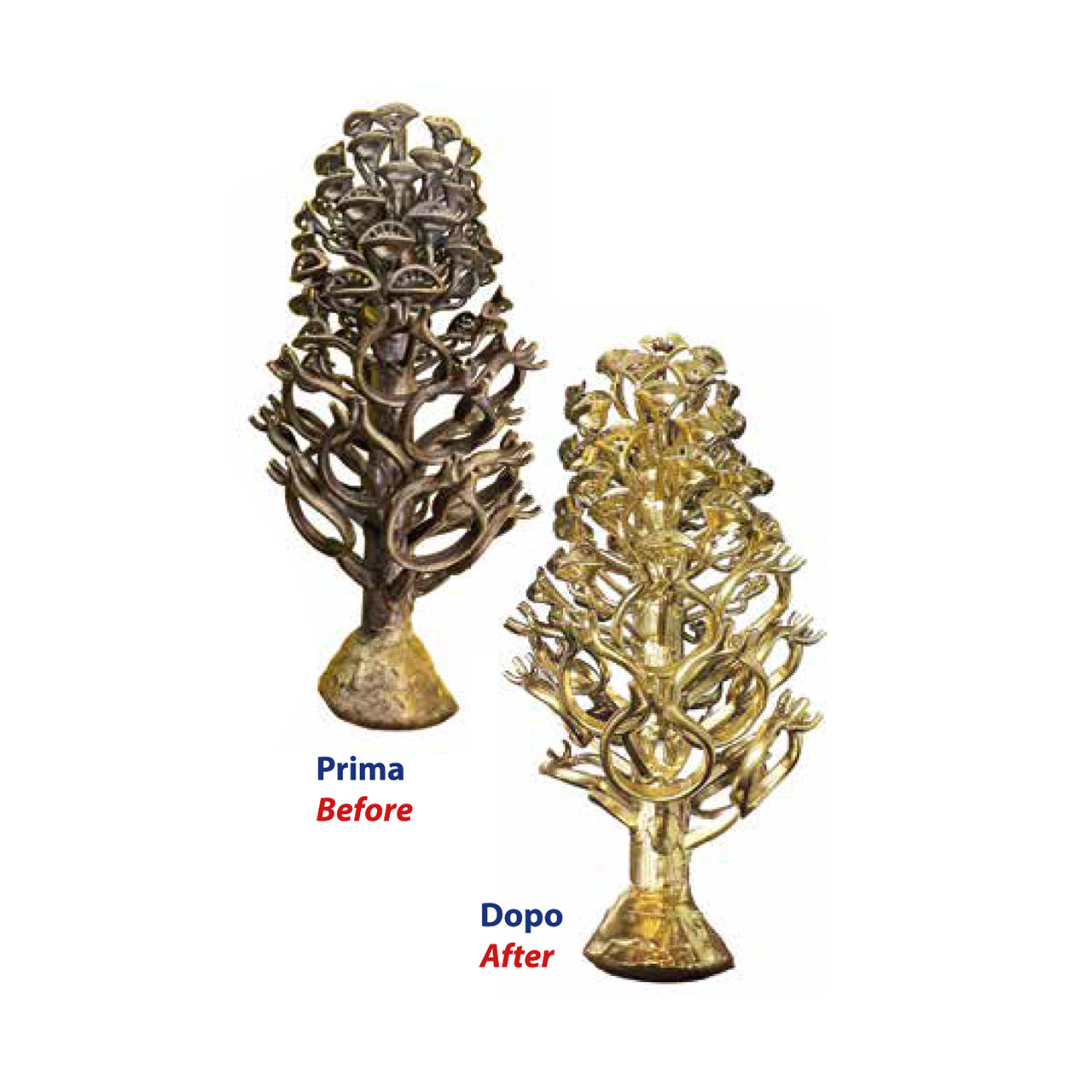

- Designed for full casting trees to clean entire sprues before separation
- 1-year manufacturer's warranty
Important – Electrical Requirements
This machine operates at 380V, 3-phase, 16A (50/60 Hz). A step-up transformer is required for use on standard 220V power. Please confirm your facility's electrical setup before ordering. Contact us with questions.
Safety Warnings
- Intended for professional goldsmith use only. Read the instruction manual in full before operating.
- Single-operator use only.
- Not for use by individuals with pacemakers.
- Water in the working chamber reaches high temperatures during operation. Wear protective goggles (not included) throughout the tumbling cycle and when using compressed air to clean the air filter.
- Do not handle finished pieces or pins with bare hands. Protective work gloves (not included) are required.
- Follow standard safety attire guidelines for electrical machinery: no loose clothing, open sleeves, ties, belts, necklaces, dangling jewelry, or loose hair.
