Riace Mono Vision Wax Injector
Riace Mono Vision Wax Injector
SKU: 2654120
|
Special Order
Price will appear in cart at checkout
Regular price
$14,995.00
/ EA
Unit price
per
Special order. Please allow extra time for delivery.
Product Specifications
Product Specifications
Brand:
Gesswein
Country of Origin:
Italy
Dimensions:
26.77" x 14.96" x 20.87"
Electrical:
110V, 1 Ph, 50/60Hz
Tank Capacity:
3 qt.
Product Description

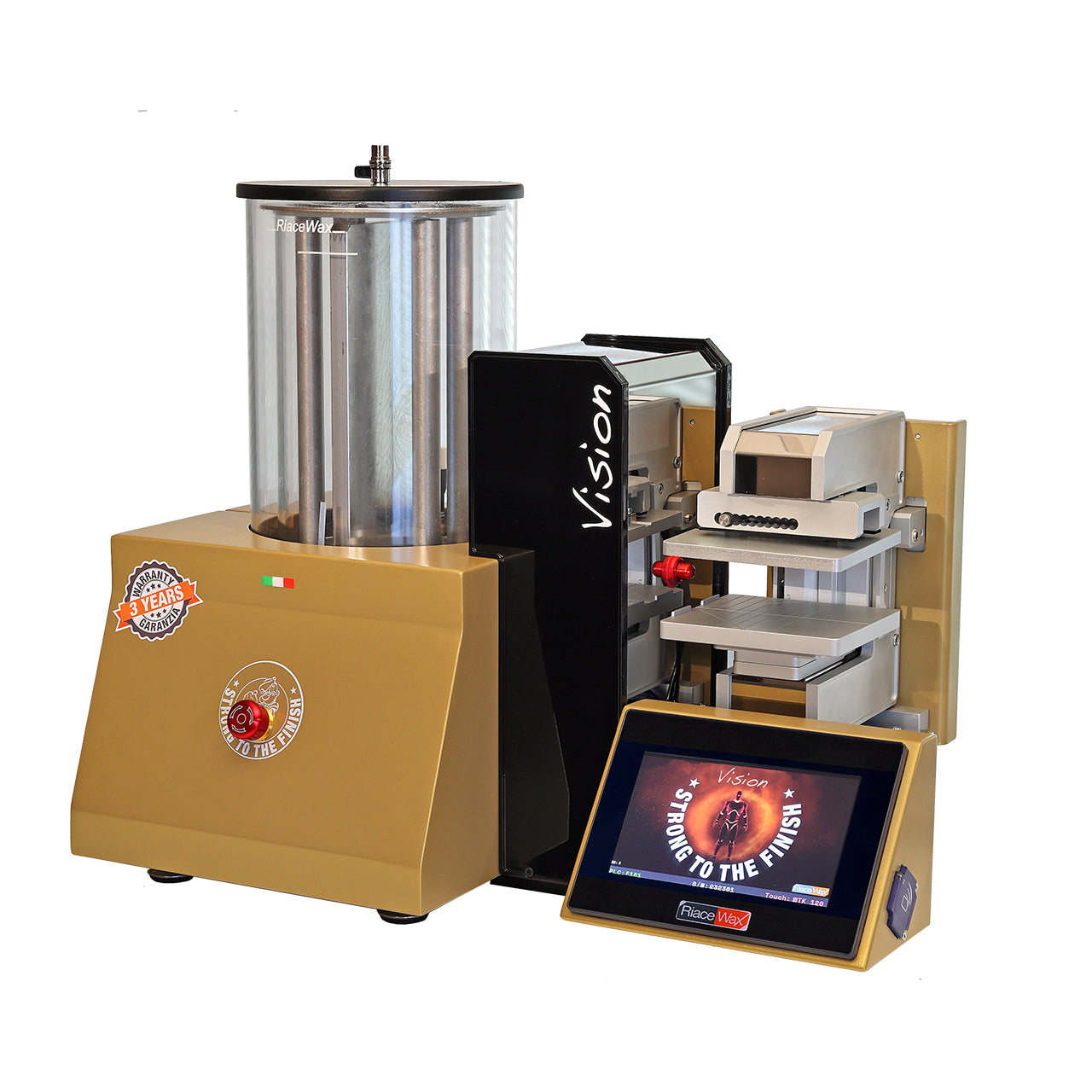

The Mono Vision Wax Injector combines all the distinctive features of the RiaceWax injector with an innovative "open frame" self-centering clamp, guaranteeing successful injections and consistent results. The 7" touchscreen interface allows a total control of the injection process. Maintain your machine with ease with powder-coated stainless steel and aluminum surfaces to ensure injector reliability.
It is equipped with a transparent melting tank with a constant vacuum system, digital sensors to monitor pressures and performance while injecting with the graphic shown on the display, an RFID reader, the Volcano injection group of 16 cmc with temperature adjustment, and a transverse self-centering clamp with 130×120mm plates.
Technical Specifications
| Specification | Details |
|---|---|
| Wax Pot Capacity | 3 quarts |
| Mould Capacity | Min 50 × 30 × 12 mm, Max 130 × 120 × 47 mm |
| Production Capacity | Approx. 2,000 small and medium-sized pieces per day |
| Electrical | 110V – 50Hz, Single Phase, 1kW |
| Dimensions | 88.18 lbs, 23.6" × 14.96" × 20.87" |
