NSK ROTUS Air Micromotor Standard Set, Ring Type Handpiece - R301-IR
NSK ROTUS Air Micromotor Standard Set, Ring Type Handpiece - R301-IR
Available on Backorder
Product Specifications
Product Specifications
Product Description

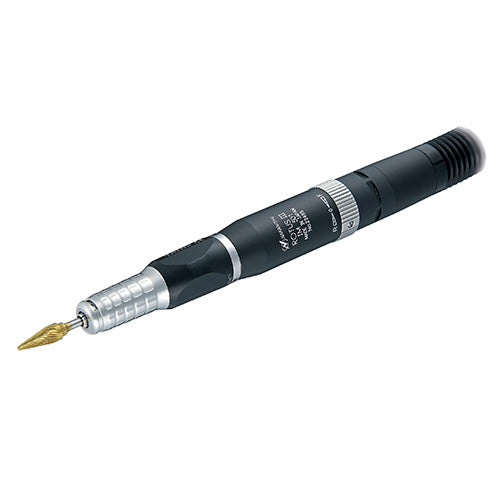

The NSK (Nakanishi) ROTUS Standard Set is a complete modular air motor precision grinding system for environments where compressed air is available and preferred over electric micromotors. This set includes the IM-301 Twist-Free air motor, IR-310 ring-type handpiece, AL-H1207F air line conditioning kit, and AFC-45 foot control — everything needed for immediate operation.
The ROTUS air motor is compatible with all NSK Emax EVOlution handpiece attachments (sold separately), making it a direct pneumatic alternative to the Emax EVOlution electric motor.
- Speed Range: 3,000–30,000 RPM (at 58 PSI)
- Max Torque: 6.6 cN·m | Output Power: 46W
- Air Pressure: 44–65 PSI | Air Consumption: 2.65 CFM
- Collet: 1/8" (3.175mm) and 2.35mm via IR-310 attachment

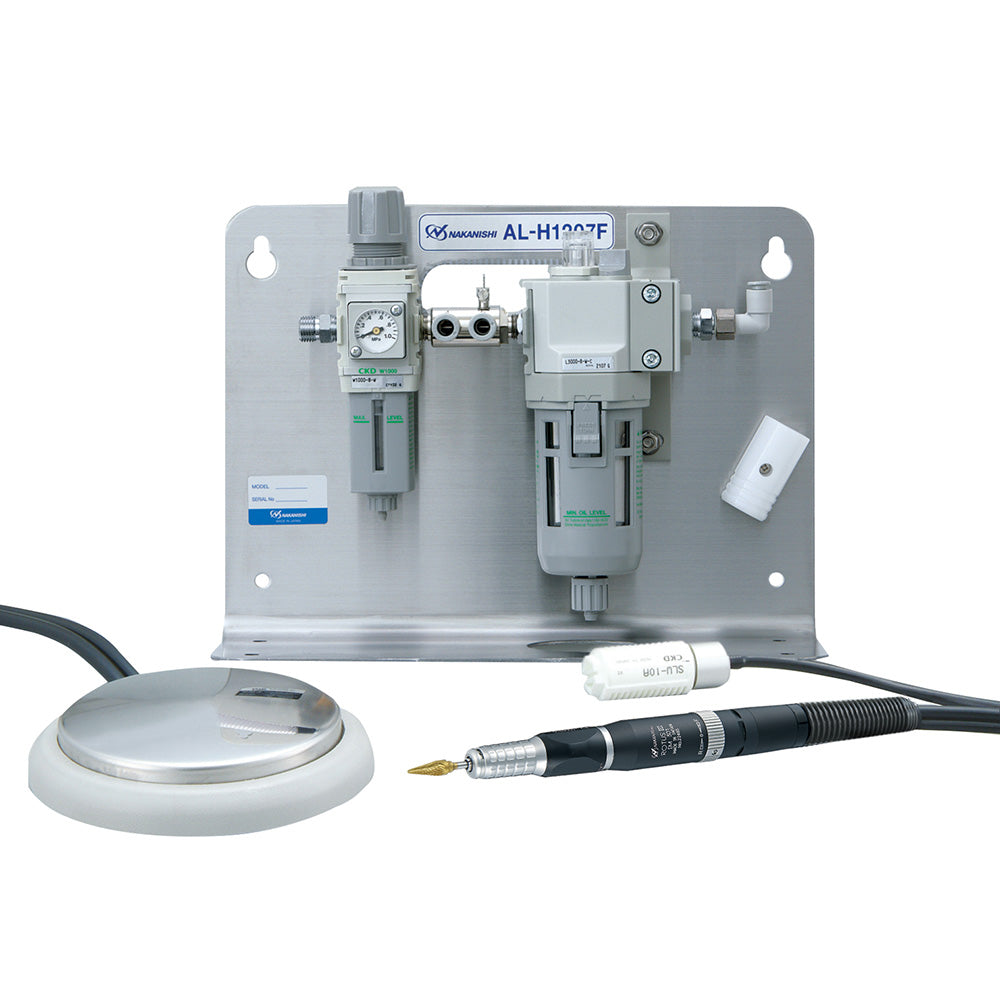

- Includes: IM-301 Motor, IR-310 Handpiece, AL-H1207F Air Line Kit, AFC-45 Foot Control, hose, oil, wrenches, collets
- Compatible Attachments: All NSK Emax EVOlution handpiece heads
- Made in Japan
