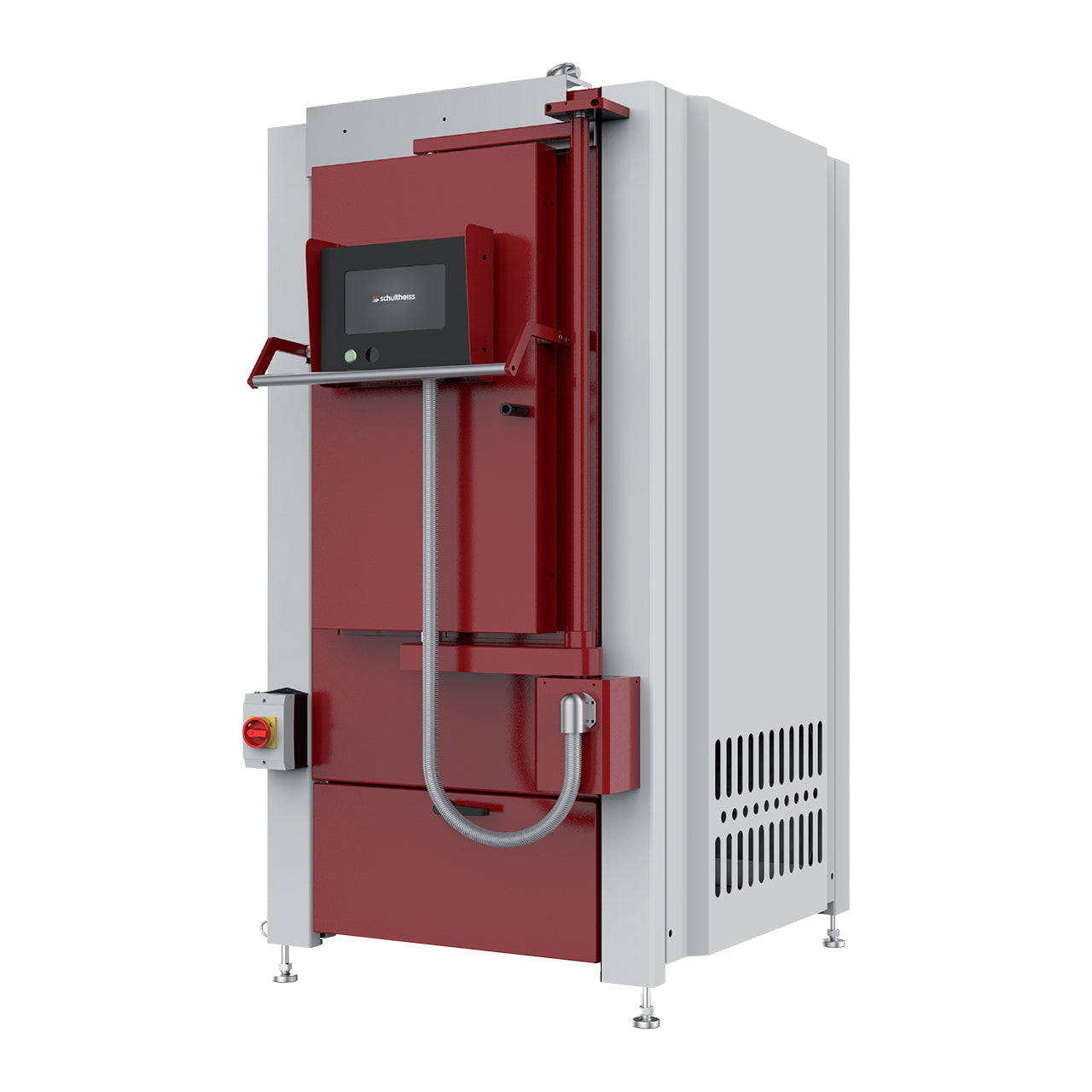

Schultheiss RF 502IIF Revolving Flask Burnout Furnace
Schultheiss RF 502IIF Revolving Flask Burnout Furnace
Available on Backorder
New
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Product Description
The RF 502 furnace is the perfect solution for high workloads in daily operations. With the 2-hour cooling system, the units are ready for the next cycle just two hours after unloading. Permanent rotation ensures uniform heating of each flask.
The advanced technology of the RF 502 from Schultheiss enables accurate monitoring during burnout in real time. The screen displays the current temperature and flask position and saves the data of the whole burnout process. This functionality greatly facilitates process optimization. In addition, any sources of error can be quickly detected and eliminated so that the burnout can be continued quickly and reliably.
The RF 502 is equipped with a heating system that allows equal heating of the flask chamber. The special design ensures that less energy is stored and thus reduces energy consumption to a minimum. The RF 502 has a beneficial design that ensures safety even at high temperatures. To guarantee safety even in case of a sudden loss of power while heating, a power loss recovery function is included which keeps the furnace in this situation safe. The additional safety temperature control ensures a safe burnout process by two built-in temperature controllers. These ensure that the maximum temperature is not exceeded even if one of the two controllers should fail.
Requires use of compressed air of 90-105 psi or 6-7 bars and must be vented outside.
Details:
- Turntables: 2 x 500 mm (19.69")
- Capacity of 100mm (approx. 4") dia. flask: 36 without flange, 18 with flange
- Max. flask height: 300 mm (approx. 11-3/4")
- Max. temperature: 800 °C (1,472°F)
- Net Weight: 500 kg (1200 lbs.)
- Dimensions WxDxH: 940x1,220x2,100mm (37x46.46x82.68")
