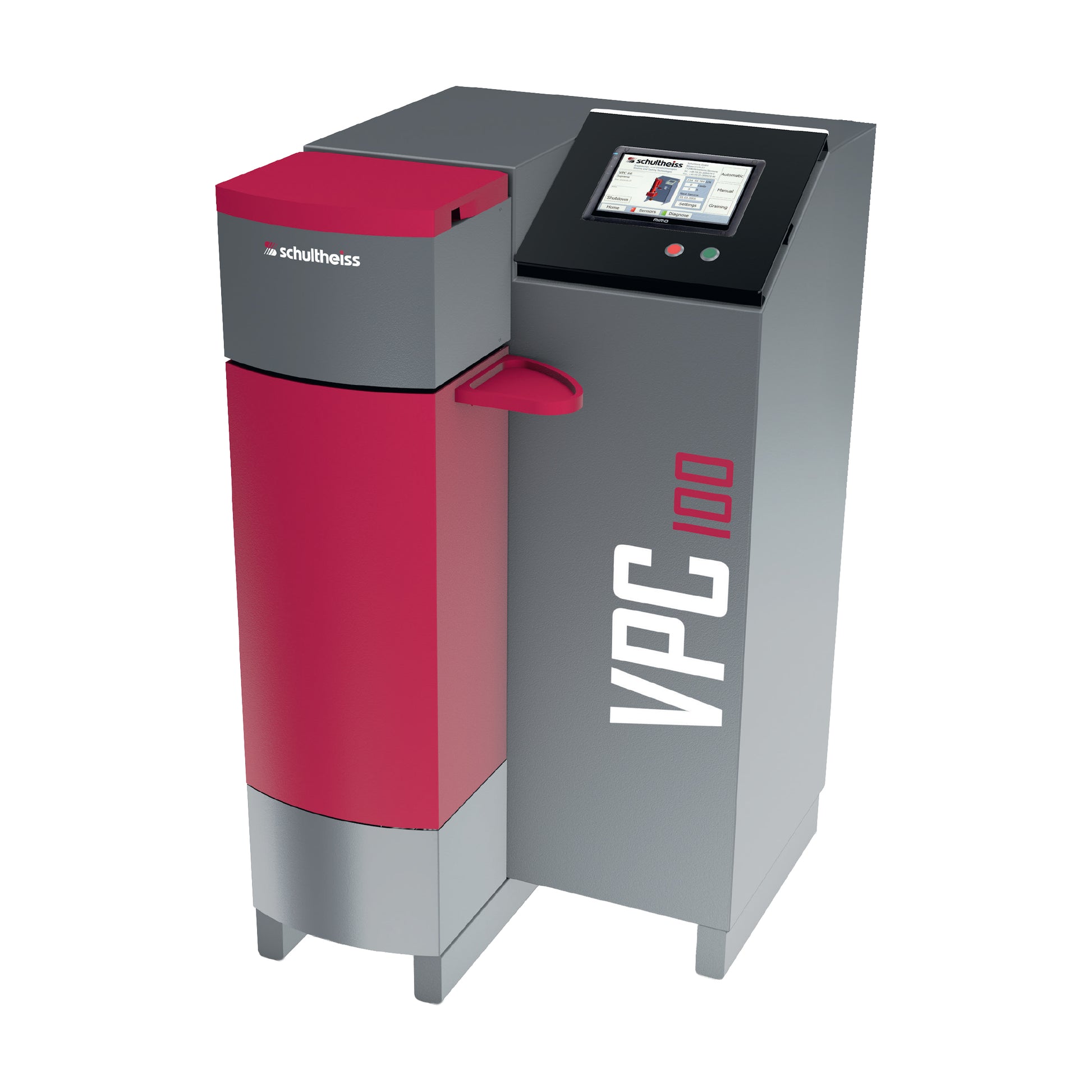

Schultheiss VPC 100 Power - Vacuum Pressure Casting Machine
Schultheiss VPC 100 Power - Vacuum Pressure Casting Machine
SKU: 2653220
|
Special Order
New
Price will appear in cart at checkout
Regular price
$70,500.00
/ Each
Unit price
/
per
Product Specifications
Product Specifications
Brand:
Schultheiss
Country of Origin:
Germany
Electrical:
230V, 3 Ph, 50/60 Hz
Warranty Term:
1 Year Limited
Product Description
The Schultheiss VPC 100 Power is a versatile vacuum pressure casting machine designed for goldsmiths, laboratories, and small to medium-volume manufacturers. It offers production-grade performance in a more compact system with excellent efficiency and reduced material loss. Featuring integrated vacuum casting with overpressure, a programmable 12-step casting process, and inductive power mixing for superior alloy homogeneity, the VPC 100 Power ensures precise, repeatable results with short cycle times and gentle melting.
Key Benefits
- Compact design with production-grade performance for small to medium runs
- Integrated vacuum and overpressure for rapid casting cycles in minutes
- Programmable 12-step casting process with one-button automatic control
- Inductive power mixing for excellent alloy homogeneity
- Short heating cycles for faster and gentler melting
- Heat-resistant design with advanced safety features
- Significant reduction in material loss for lower cost per cast
- Precise, reproducible results for intricate filigree parts
Technical Specifications
| Specification | Details |
|---|---|
| Machine Dimensions (W × D × H) | 31.5" × 37.4" × 49.2" (800 × 950 × 1,250 mm) |
| Casting Capacity (18K Gold) | 2,500 g |
| Casting Capacity (Silver) | 1,600 g |
| Max Temperature | 2,912 °F | 1,600 °C (S-Type) / 2,642 °F | 1,450 °C (Crucible) |
| Max Flask Size (D × H) | 5.91" × 15.75" (150 x 400 mm) |
| Electrical Requirements | 230V, 3 Ph, 50/60 Hz |
| Control | Built-in Windows interface with programmable 12-step casting process and one-button automatic control |
| Casting Technology | Vacuum pressure casting with overpressure and inductive power mixing |
Note: For optimal performance, we recommend pairing the VPC 100 Power with the Schultheiss 40 m³ vacuum pump, specifically designed for this machine.
