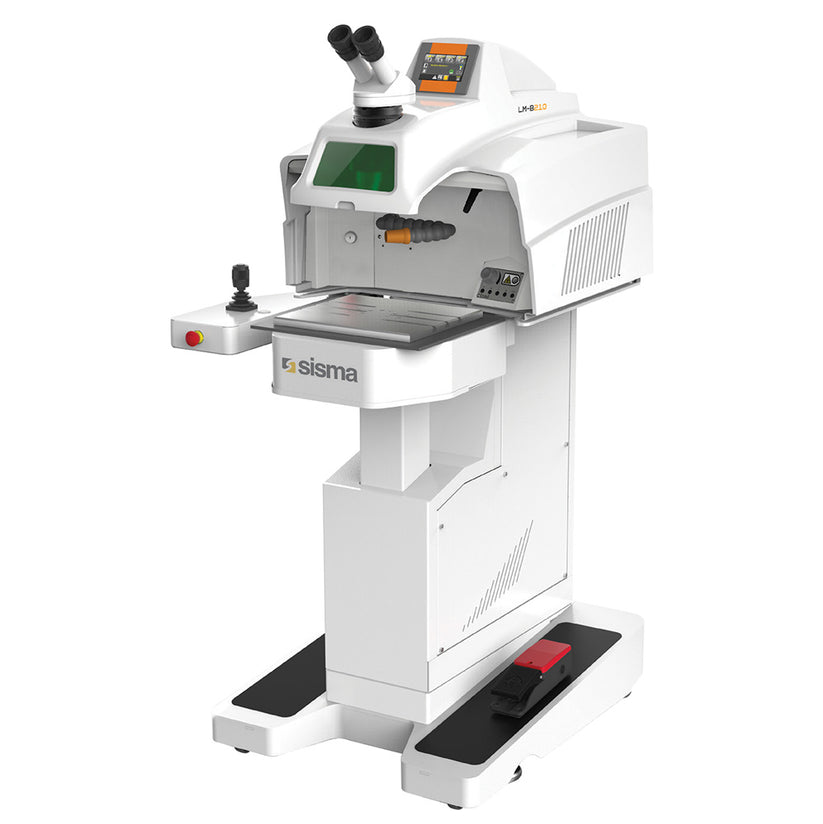

Sisma LM-BT 260 YAG Laser Welder
Sisma LM-BT 260 YAG Laser Welder
SKU: 8331780
|
Special Order
New
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Brand:
Sisma
Cooling:
Water & Air
Country of Origin:
Italy
Dimensions:
27.5" x 31.5" x 54.7"
Electrical:
230V ±10%, 1 Ph, 50/60Hz
Laser Power:
95W
Laser Source Type:
Nd: YAG
Max Pulse Energy:
262J
Model:
LM-BT
Pulse Duration:
25ms
Pulse Frequency:
0-50Hz
Warranty Term:
2 Year
Wave Length:
1064nm
Product Description
These high precision Nd: YAG (Class 4 open) laser welders are designed for small molds, 11.75" x 11.75" (300mm x 300mm) under 55 lbs. Featured characteristics are ease of use, reduced maintenance, and precise movement along the X, Y, and Z axes. All versions have Smart Spot technology, which yields a greater depth of field and a stable laser shot starting from the first pulse. Included ECO Mode saves energy by switching off unused components during idle times, thereby reducing power consumption.
The LM-B uses a joystick to control the motorized working platform and 10X stereo microscope complete with eye protection.
Key Features:
- Designed for Small Molds
- Motorized Control of X, Y, and Z Axes
- Fast Setting of Welding Parameters (via Keyboard)
- Internet Connection for Remote Service Management and Free Upgrades
