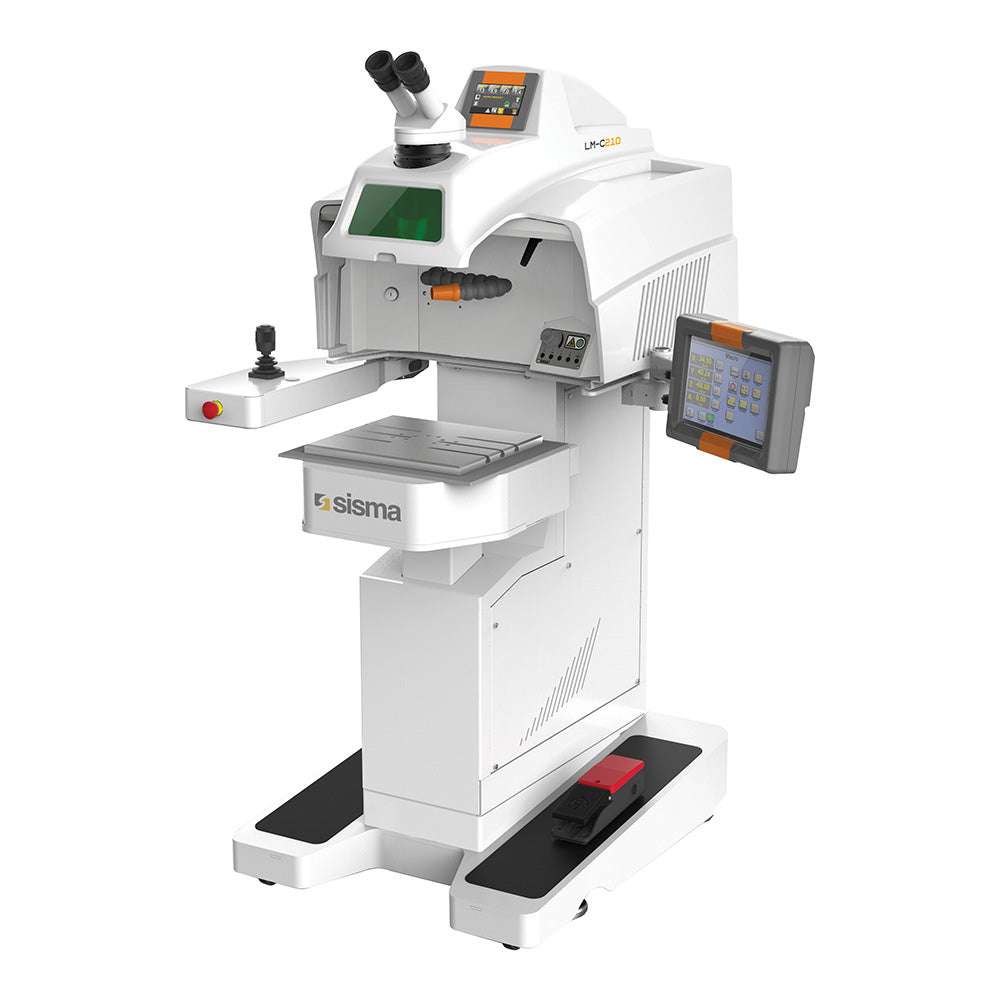

Sisma LM-C  210 Laser Welder

Sisma LM-C  210 Laser Welder

SKU: 8331853
|
Special Order
Price will appear in cart at checkout
$57,979.95 / Each
Sold out
local_shipping Ships separately by truck and requires a custom shipping charge.

Product Specifications

Brand: Sisma
Cooling: Water & Air
Country of Origin: Italy
Dimension: 44.7" x 31.5" x 57.7"
Electrical: 230V ±10%, 1 Ph, 50/60Hz
Item Length: 27.5"
Item Width: 31.5"
Item Height: 57.7"
Laser Power: 85W
Laser Source Type: Nd: YAG
Max Peak Power: 10.5kW
Max Pulse Energy: 210J
Model: 210
Pulse Duration: 0.3-20ms
Pulse Frequency: 0-50Hz
Warranty Term: 1 Year
Wave Length: 1064nm

Safety, Compliance & Product Documentation

brochure.svg Technical Brochure
View full details

Product Description

These high precision Nd: YAG (Class 4 open) laser welders are designed for small molds, 11.75" x 11.75" (300mm x 300mm) under 55 lbs. Featured characteristics are ease of use, reduced maintenance, and precise movement along the X, Y, and Z axes. All versions have Smart Spot technology, which yields a greater depth of field and a stable laser shot starting from the first pulse. Included ECO Mode saves energy by switching off unused components during idle times, thereby reducing power consumption.


The LM-C and LM-CV both allow the motorized working platform to be programmed for automatic, consistent results or controlled via joystick when preferred. The LM-C offers the 10X stereo microscope while the LM-CV features the patented Syncro View System for a fluid and stress-less view of work during welding.

All units are made in Italy. Backed by a one-year manufacturer's warranty. Installation, training, and service provided by Gesswein.

Key Features:

  • Designed for Small Molds
  • Motorized Control of X, Y, and Z Axes
  • Fast Setting of Welding Parameters (via Keyboard)
  • Internet Connection for Remote Service Management and Free Upgrades


Technical Data

LM-C 180

LM-C 210

Item #:

                  833-1850

                  833-1853

Source Type:

Nd: YAG (flash lamp)

Nd: YAG (flash lamp)

Wavelength:

1064 nm

1064 nm

Average Laser Power:

80W

85W

Peak Power:

9kW

10.5kW

Pulse Frequency:

0-50Hz

0-50Hz

Max Pulse Energy:

180J (at 20ms)

210J (at 20ms)

Pulse Duration:

0.3ms - 20ms

0.3ms - 20ms

Laser Spot Diameter:

0.2 - 2mm

0.2 - 2mm

Axis Speed:

0.1mm/s - 15mm/s

0.1mm/s - 15mm/s

X Axis Stroke:

5.9" (150mm)

5.9" (150mm)

Y Axis Stroke:

5.9" (150mm)

5.9" (150mm)

Z Axis Stroke:

6.9" (175mm)

6.9" (175mm)

Cooling:

Water & Air

Water & Air

Max Load Weight:

55lbs. (25kg)

55lbs. (25kg)

Max Mold Size (LxWxH):

11.8" x 11.8" x 10.6" (300 x 300 x 270mm)

11.8" x 11.8" x 10.6" (300 x 300 x 270mm)

Power Supply:

230V±10%, 1 Ph,  50/60Hz

230V±10%, 1 Ph, 50/60Hz

Dimensions (LxWxH):


LM-C:
44.7" x 31.5" x 57.7" (1136 x 801 x 1465mm)


LM-C:
44.7" x 31.5" x 57.7" (1136 x 801 x 1465mm)

Weight:

441 lbs. (200kg)

441 lbs. (200kg)


Established in 1961, Sisma is a worldwide recognized name for the design and production of extremely high precision laser machinery. Suiting the needs of diverse industries; jewelry, machining, prototyping, dental, and medical, Sisma’s expansive line of customizable laser solutions are synonymous with quality and superiority. Innovative by vocation, Sisma combines technologically advanced machines with unique patents. When coupled with a world class service and support network, optimal efficiency and utilization of their products are guaranteed.
