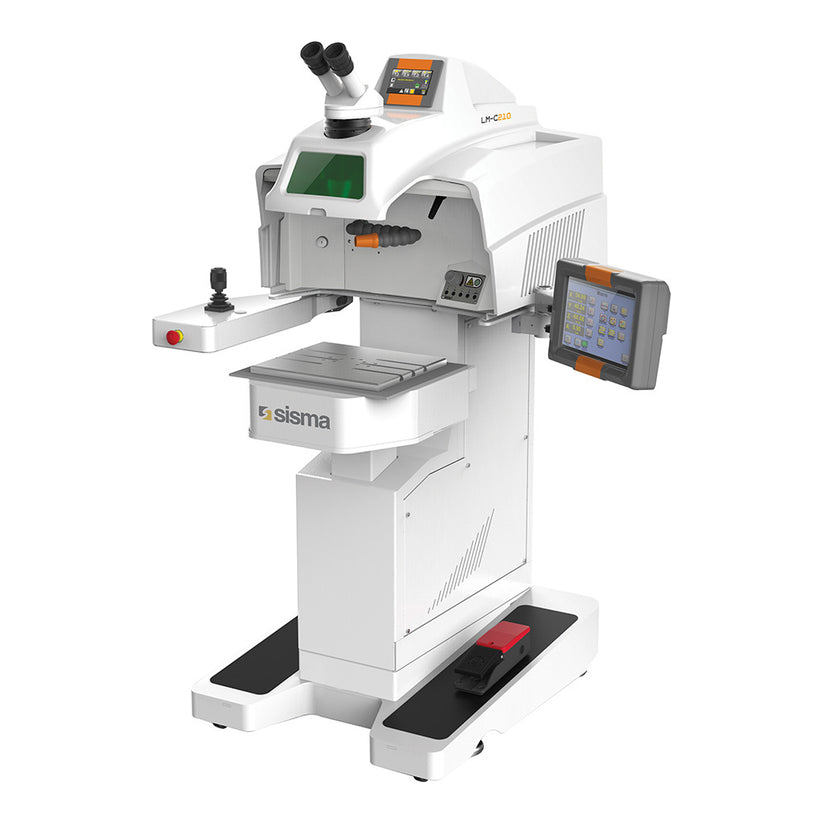

Sisma LM-C 230 YAG Laser Welder
Sisma LM-C 230 YAG Laser Welder
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Product Description
These high precision Nd:YAG (Class 4 open) laser welders are designed for small molds, 11.75" x 11.75" (300mm x 300mm) under 55 lbs. Featured characteristics are ease of use, reduced maintenance, and precise movement along the X, Y, and Z axes. All versions have Smart Spot technology, which yields a greater depth of field and a stable laser shot starting from the first pulse. Included ECO Mode saves energy by switching off unused components during idle times, thereby reducing power consumption.
The LM-C and LM-CT both allow the motorized working platform to be programmed for automatic, consistent results or controlled via joystick when preferred. The LM-C offers the 10X stereo microscope while the LM-CT features the patented Syncro View System for a fluid and stress-less view of work during welding.
- Designed for Small Molds
- Motorized Control of X, Y, and Z Axes
- Fast Setting of Welding Parameters (via Keyboard)
- Internet Connection for Remote Service Management and Free Upgrades
- Source Type: Nd:YAG (flash lamp)
- Wavelength: 1064 nm
- Average Laser Power: 85W
- Peak Power: 9kW
- Pulse Frequency: 0-50Hz
- Pulse Energy: 230J (at 20ms)
- Spot Diameter: 0.5 - 2mm
- Welding Speed: 0.1mm/s - 15mm/s
- X-Axis Travel: 5.9" (150mm)
- Y-Axis Travel: 5.9" (150mm)
- Z-Axis Travel: 6.9" (175mm)
- Cooling: Water & Air
- Weight: 55lbs. (25kg)
- Working Chamber Dimensions: 11.8" x 11.8" x 10.6" (300 x 300 x 270mm)
- Power Supply: 230V±10%, 1 Ph, 50/60Hz
- LM-C Overall Dimensions: 44.7" x 31.5" x 57.7" (1136 x 801 x 1465mm)
