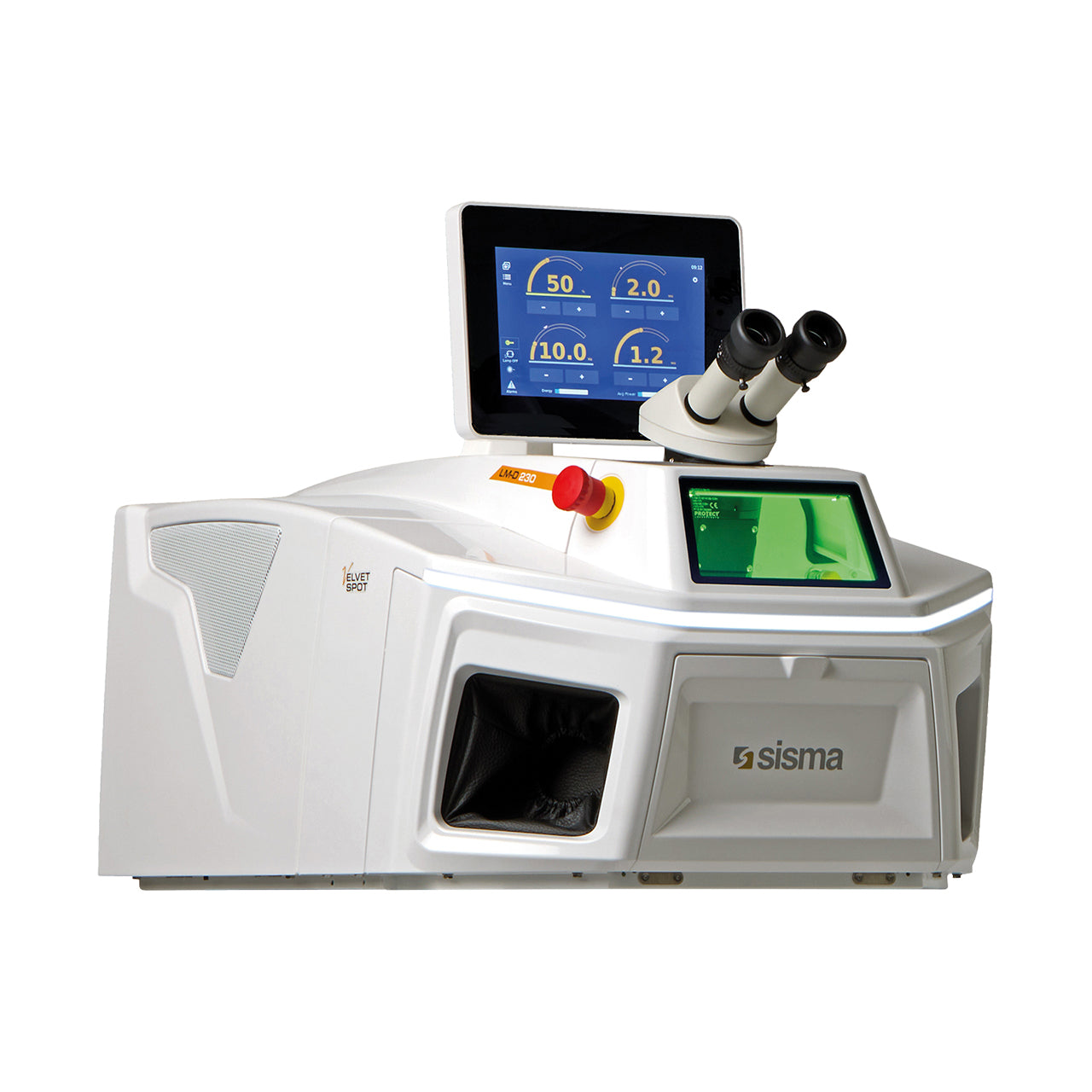

Sisma LM-D 230 Laser Welder
Sisma LM-D 230 Laser Welder
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Product Description
Desktop laser welding system equipped with a wide front door, arm port access, a Lecia stereo 10X microscope with optical protection, and a 10.1" HD touchscreen display. Laser welder comes with a water-air cooling system, both air and argon connections, a filter for processing vapor and reclaiming precious metals as well as a protective cloth. Average power 85 W, max pulse energy of 230 Joules (calculated at 25 ms), peak power 9 kW. Warranty 24 months or 20 million shots on the lamp, 36 months on the balance of the machine. All consumables are not included in the guarantee.
Key Features of the LM-D 230 Laser Welder:
* Smart Spot technology maintains stable energy output delivering identical welds from the first pulse to the last
* Spot diameter 0.2-2 mm
* Pulse duration 0.5-25 ms
* Leica Stereo 10X microscope with optical protection (optional 16X and 25X lenses are also available)
* Touchscreen 10.1” HD
* LED bar for optical indication of the machine operating status
* Adjustable white LED light allows easy modifications to improve clarity or reduce glare
* Quick setting of welding parameters by means of the multifunctional mouse - can save up to 250 for future use
* USB Connection / Ethernet / TeamViewer included to simplify and allow remote diagnostic capability
The laser welder comes complete with:
- A water-air cooling system
- Both air and argon connections
- A filter for dust recovery
- A protective cloth
