Sisma LM-DT 260 Flex Laser Welder
Sisma LM-DT 260 Flex Laser Welder
In Stock, 1 left!
New
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Product Description

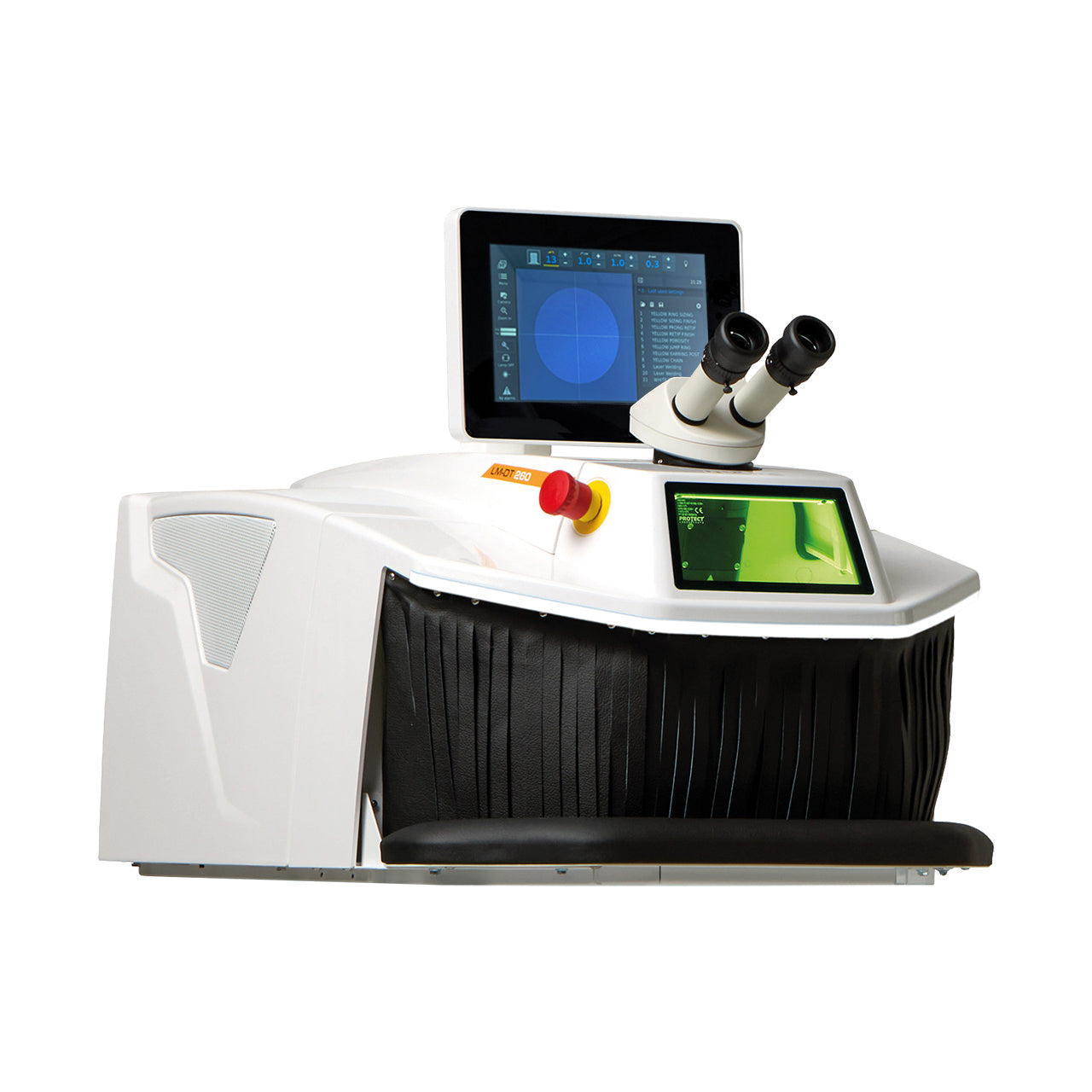

Desktop laser welding system equipped with a wide, flexible entry point, Lecia stereo 10X microscope with optical protection, 10.1" HD touchscreen display and is argon ready. Laser welder comes with a water-air cooling system, both air and argon connections, a filter for processing vapor and reclaiming precious metals as well as a protective cloth. Average power 95W, max pulse energy of 260 Joules, peak power 10.5 kW. Warranty 24 months or 20 million shots on the lamp, 36 months on the balance of the machine. All consumables are not included in the guarantee.
Key Features of the LM-DT 260 Flex Laser Welder:
- Easy access to the working chamber
- Smart Spot technology maintains stable energy output
delivering identical welds from the first pulse to the last
- Spot diameter 0.2-2 mm
- Pulse duration 0.5-25 ms
- Leica Stereo 10X microscope with optical protection
(optional 16X and 25X lenses are also available)
- Touchscreen 10.1” HD
- Integrated high resolution coaxial camera with patented
Syncro View system displays on the screen, exactly what you see through the
scope
- LED bar for optical indication of the machine operating
status
- Adjustable white LED light allows easy modifications to
improve clarity or reduce glare
- Quick setting of welding parameters by means of the
multifunctional mouse - can save up to 250 for future use
- USB Connection / Ethernet / TeamViewer included to
simplify and allow remote diagnostic capability
The laser welder comes complete with:
- A
water-air cooling system
- Both
air and argon connections
- A filter for dust recovery
- A protective cloth.
Why Jewelers Choose Sisma
Founded in Italy in 1961, Sisma is a global leader in high-precision laser machinery. Sisma Welders are trusted by jewelers and manufacturers worldwide thanks to their precision, reliability, and innovation. With decades of expertise and a focus on the jewelry sector, Sisma continues to pioneer laser technology with dozens of international patents. Today, Sisma machines are used around the world, setting the standard for precision laser welding.
