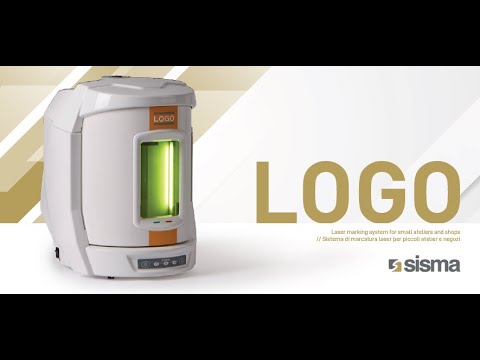

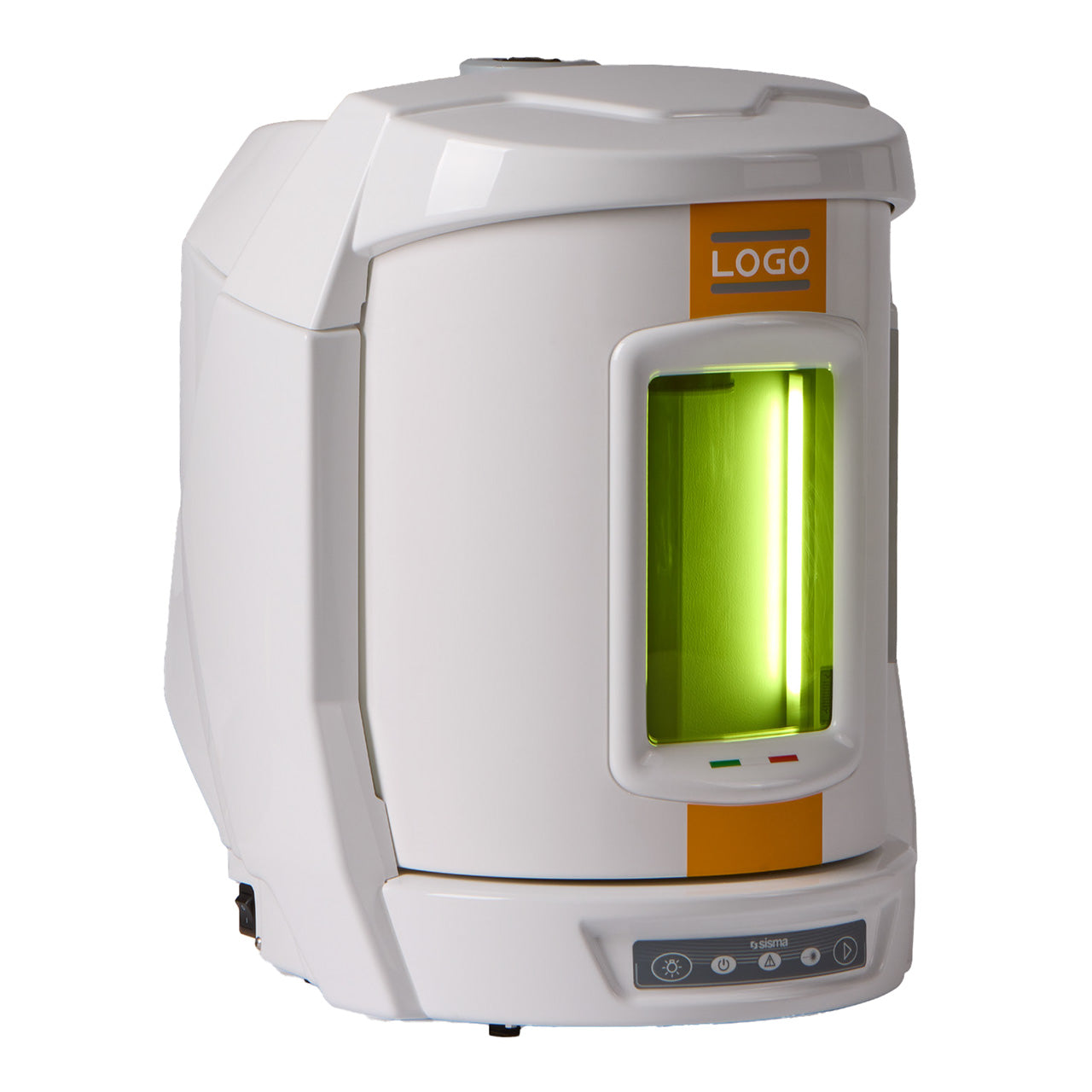

Sisma LOGO Laser Engraver
Sisma LOGO Laser Engraver
Product Specifications
Product Specifications
Product Description
A compact, easy to use, all in one, Class1 laser marking system for retailers and professionals alike. Simplicity in proprietary software facilitates turnkey success! Suitable for most metals, precious and non-precious. LOGO can perform marking, engraving, satin finishing, photoetching and cutting. Included Sisma software is compatible with Windows. Working Chamber Dimensions: (100mm x 100mm x 100mm - approx. 4"x4"x4"). Overall dimensions: 19"W x 17.5" D x 24" H.
Key Features:
• Available as a class 1 closed configuration.
• Easy-to-use software, developed by Sisma, with presets for gold, silver, platinum and other alloys.
• Includes sliding door, for maximum working space and minimal overall dimensions.
• F100 focusing lens offers a 70 x 70mm engravable area.
• Suitable for inside/outside ring/bangle engraving, flat engraving, and some giftware on most metal and plastic materials.
• Choose between conventional marking, satin finishing, blackening, ablation, paint stripping and light engraving.
• Manual Z axis, as a cost savings solution, via rotary on top of the machine.
• Ability to connect to a fume/particulate extraction system.
• 2 Year Warranty (Extended options available)
Specifications:
Average Power: 20W
Source Type: Ytterbium
Wavelength: 1064 nm
Peak Power: 20 kW
Max. Pulse Energy: 0.8 mJ
Pulse Duration: 4 ns
Cooling System: Air
PC Connectivity: RJ45 Ethernet Cable
Power Supply: 100-240V, 150W, 50/60 Hz, 1Ph,
Weight: 96 lbs. (43.5kg)
Our service professionals are ready to give you the support you need. Whether it’s choosing the right laser, providing training on your new laser, or servicing your current Sisma laser, we’ve got you covered.
Established in 1961, Sisma is a worldwide recognized name for the design and production of extremely high precision laser machinery. Suiting the needs of diverse industries; jewelry, machining, prototyping, dental, and medical, Sisma’s expansive line of customizable laser solutions are synonymous with quality and superiority. Innovative by vocation, Sisma combines an independent and cutting-edge design and production organization with a wealth of highly specialized human resources, thus guaranteeing top product quality as well as thorough and prompt assistance throughout the world.
Sisma's philosophy, aimed at satisfying the specific needs of customers, is the result of an inborn strategic imperative that contributes to affirming the role of Sisma as a maker of excellence in the world of industrial mechanics.
At Sisma, their extensive experience and technical know-how blends with productive efficiency and innovative spirit which promptly answers to the ever-changing marketplace. The power to create special, customized machines is but another jewel in Sisma's crown of excellence. Look no further...Sisma is the machine of choice for the above-mentioned markets all over the world!
All after sales and support handled by Gesswein in Bridgeport, Connecticut.
Invest in tomorrow's technology today. Sisma, with Gesswein, combining over 150 years of excellence and performance; ready to work for you. Machines are proudly manufactured in Italy.
