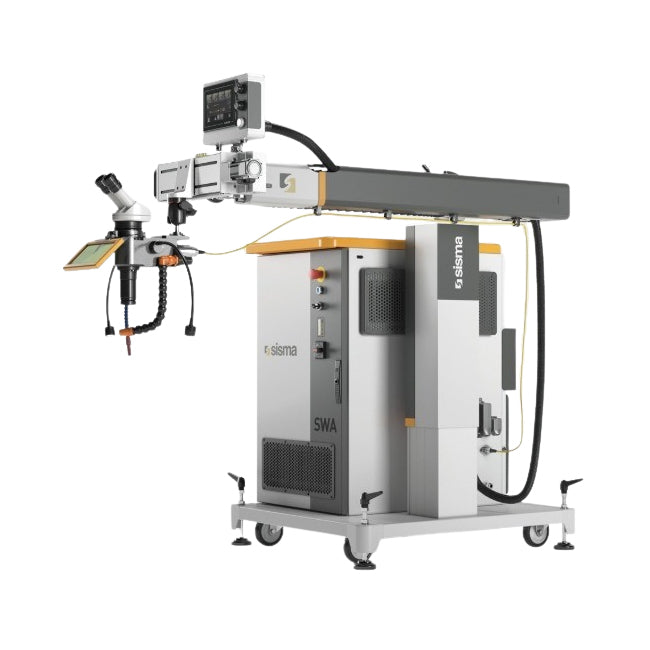

Sisma SWA 450 Fiber Laser Welder
Sisma SWA 450 Fiber Laser Welder
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Product Description
Expand your mold repair capabilities with the SWA 450F, a powerful motorized laser welding system designed specifically for the industrial tool and die market. This open-arm solution handles large, heavy workpieces that do not fit inside standard benchtop cabinets, giving you the reach and flexibility needed for demanding repair and modification work. The motorized 3-axis movement allows high-precision welding on complex geometries without ever moving the workpiece — saving time, reducing handling risks, and improving accuracy on intricate details.
Key Benefits
- Ideal for oversized molds and dies common in tool & die shops
- Motorized X-Y-Z axes allow precise positioning via joystick control
- Large working envelope for maximum flexibility
- Advanced fiber laser technology for clean, strong welds with minimal heat input
Technical Specifications
| Specification | Details |
|---|---|
| Model | SWA 450F |
| Laser Type | Fiber |
| Weight | 716.5 lbs (325 kg) |
| Average Power | 450 W |
| Peak Power | 4.5 kW |
| Max Pulse Energy | 45 J |
| Pulse Duration | 0.1 – 10 ms / CW |
| Laser Spot Diameter | 0.1 – 2 mm |
| Focal Length | F120 mm |
| Microscope | 10x Stereo Microscope |
| Control | Color Touch-Screen Display with memory for up to 250 welding programs |
| Motorized Axes | X-axis: 11.8" (300 mm) Y-axis: 5.9" (150 mm) Z-axis: 19.7" (500 mm) |
| Axis Speed | 0.1 – 30 mm/s |
| Cooling | Air Cooling |
| Connectivity | Internet connection for remote control & service USB data import/export |
| Weight | 629 lbs (325 kg) |
Why Manufacturers Choose Sisma
Founded in Italy in 1961, Sisma is a global leader in high-precision laser machinery for industrial and manufacturing applications. Trusted by manufacturers worldwide, Sisma laser welders are known for their accuracy, process stability, and long-term reliability in demanding production environments. With decades of engineering expertise and proprietary patented technologies, Sisma systems support laser welding applications across industrial manufacturing, tooling and moldmaking, and precision fabrication environments.
