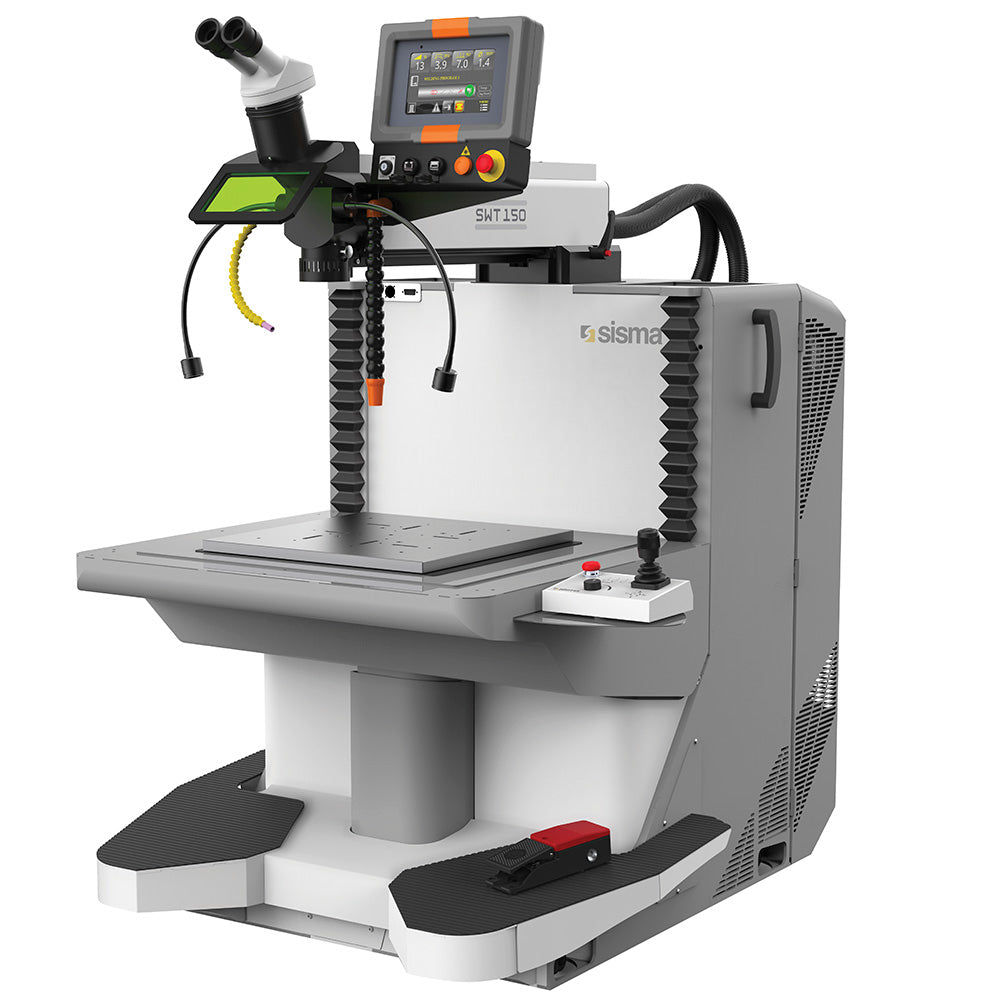

Sisma SWT 150 Laser Welder (Open)
Sisma SWT 150 Laser Welder (Open)
Ships separately by truck and requires a custom shipping charge.
Product Specifications
Product Specifications
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Brochure
Product Description

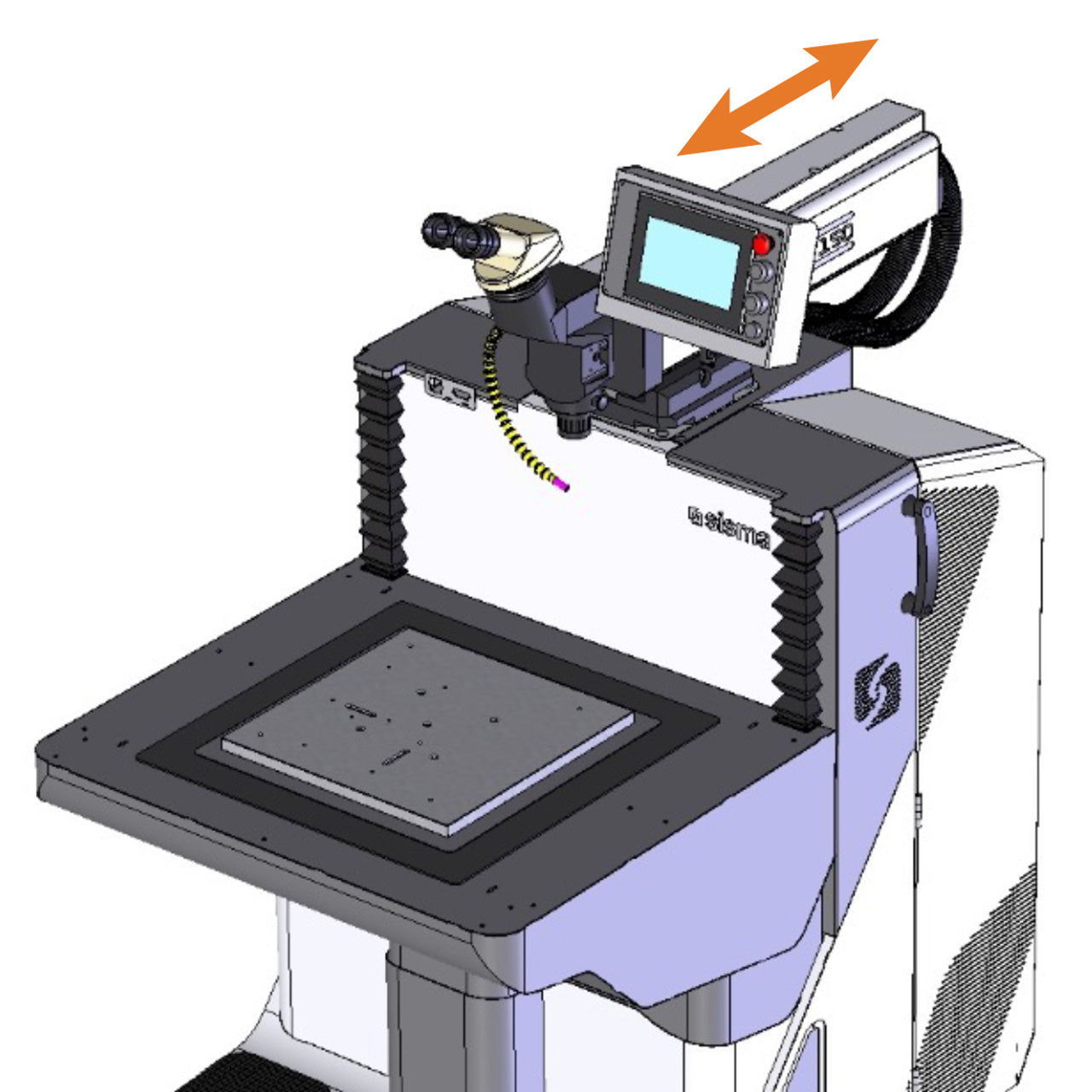

The SWT laser welder is available in 2 configurations: Class 1 (closed) or Class 4 (open). Choose what works best for your shop! The SWT is specifically designed for the maintenance of medium to small sized molds up to 15.75" square (400mm). The robust design and sturdy working platform gives the operator outstanding comfort and minimal vibration. Controlled via joystick, the working platform moves up or down on the Z-axis with a range of 12.5" (320mm). The X and Y-axis movements are 11.75" and 7.75" respectively (300 x 200mm).
The ergonomic design of the SWT Class 1 (closed) is ideal for prolonged use. Soft armrests, adjustable doors, and adjustable footboard create a comfortable working environment. The stable working platform, on both Class 1 and Class 4 models, minimizes any vibrations, even at the full load capacity of 264 lbs. (120kg).
Control all the welding parameters with the touch of the control screen or via joystick. The SWT features a multitude of programs and settings to help you get the job done quickly and accurately. Program features include Laser Pulse Shaping, Measuring, Overlaps, Line Paths, Fill Paths, Radius Paths, Oblique Paths and more! The memory will store up to 250 welding parameters.
Made in Italy. Backed by a 1-year manufacturer’s warranty. Installation, training, and service provided by Gesswein Company.
Key Features:
- Available Open or Closed Configuration
- Medium to Small Size Molds
- Sturdy, Integrated Platform Minimizes Vibrations
- Ergonomic Design for Maximum User Comfort
- Programmable Path Settings –Overlap, Line, Radius, Oblique, Fill, Rotating Spindle and More

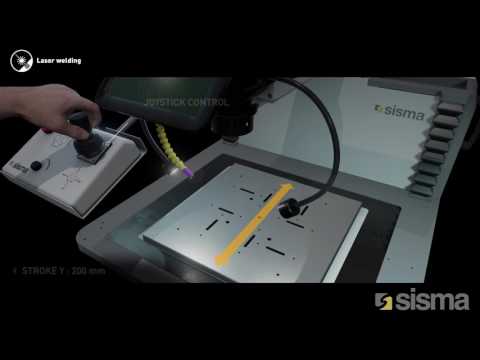

- Motorized Control of X, Y, and Z Axes (via Joystick)
- Internet Connection for Remote Service Management and Free Upgrades
Model |
|
SWT 150 |
Item # Class 1 |
|
833-1745 |
Item # Class 4 |
|
833-1725 |
Source Type |
|
Nd: YAG (flash lamp) |
Wavelength |
|
1064 nm |
Average Laser Power |
|
150W |
Max Peak Power |
|
10.5kW |
Max Pulse Energy |
|
75J |
Pulse Frequency |
|
0 - 50 Hz |
Pulse Duration |
|
0.3 ms - 25 ms |
Laser Spot Diameter |
|
0.3mm - 2mm |
Axis Speed |
|
0.1mm/s - 25 mm/s |
X Axis Stroke |
|
11.8" (300mm) |
Y Axis Stroke |
|
7.9" (200mm) |
Z Axis Stroke |
|
12.6" (320mm) |
Cooling |
|
Water & Air |
Max Load Weight |
|
264 lbs. (120kg) |

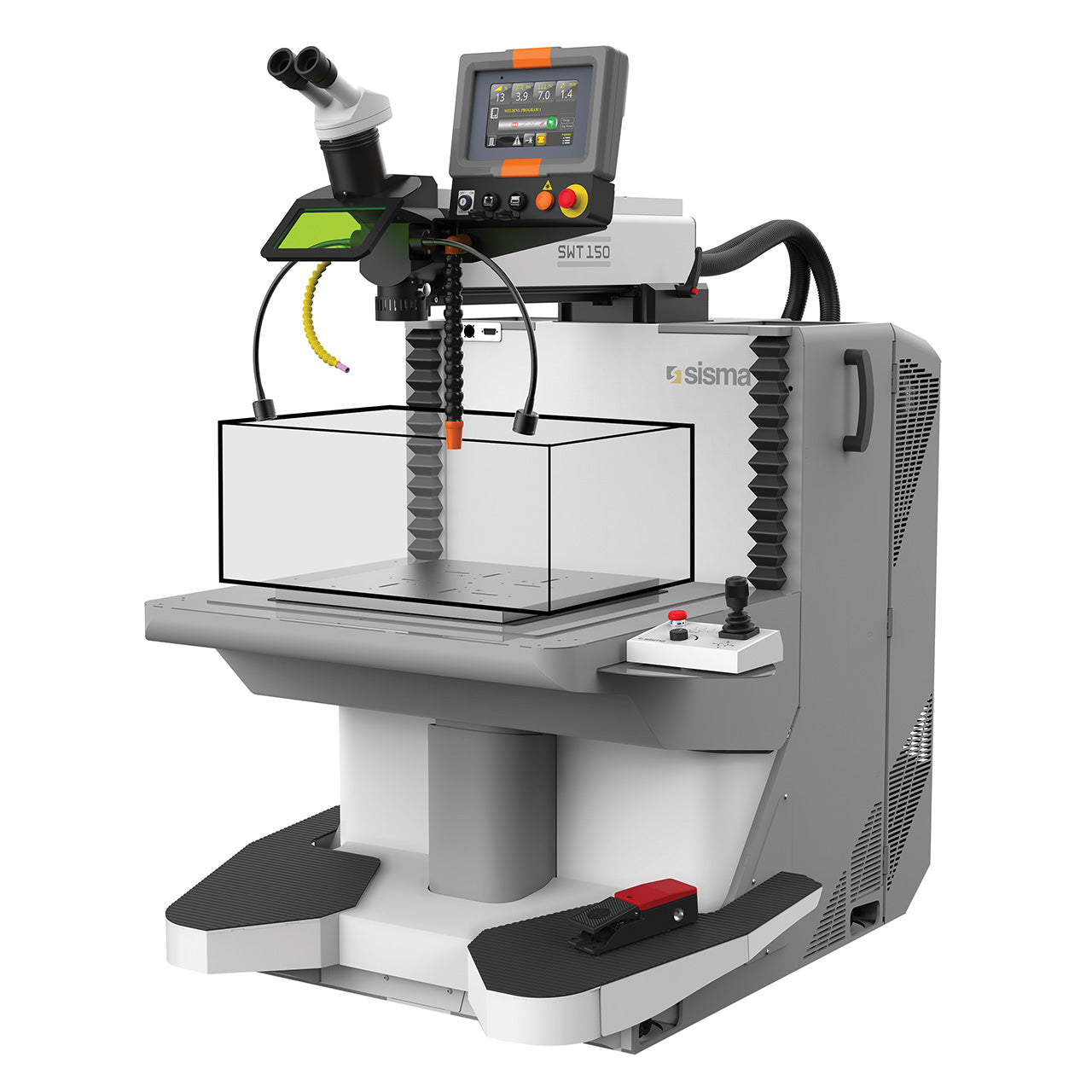

Max Mold Size |
|
15.7" x 15.7" x 12.6" (400mm x 400mm x 320mm) |
Power Supply |
|
400V±10%, 3Ph, 50/60 Hz |
Dimensions (L x W x H) |
|
33" x 48" x 60" (850 x 1200 x 1500mm) |
Weight |
|
1,235 lbs. (560kg) |
