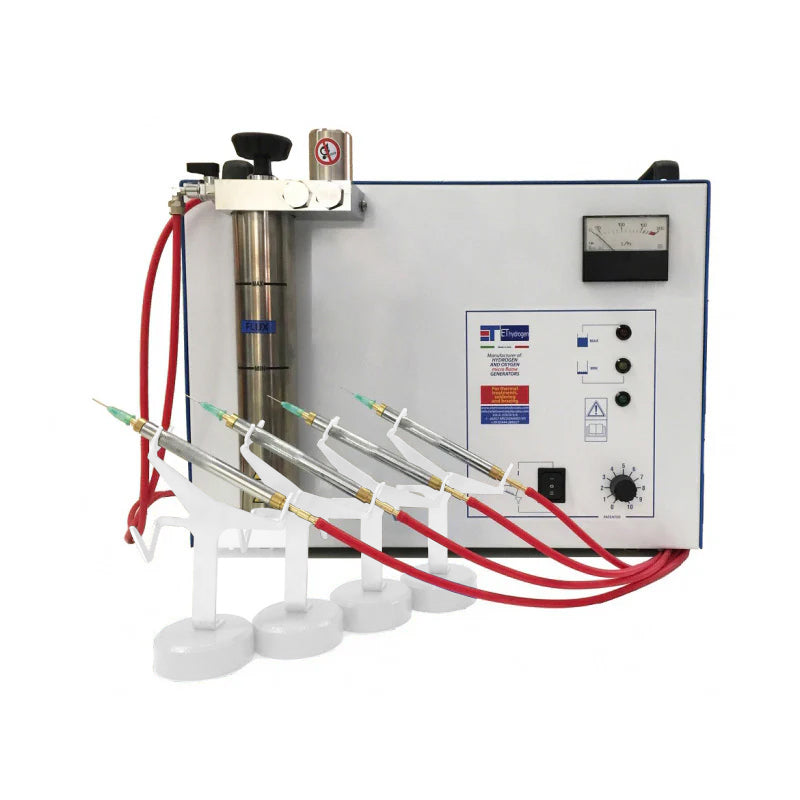

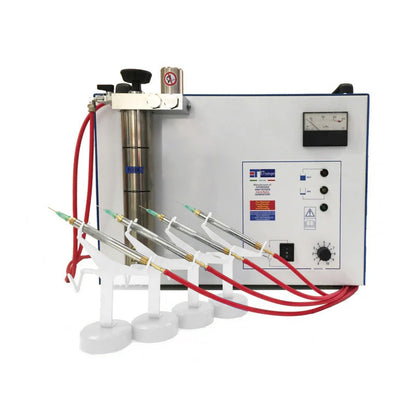

Todescato Hydrogen L160 Four Torch Welding System
Todescato Hydrogen L160 Four Torch Welding System
SKU: 8304620
|
Special Order
New
Price will appear in cart at checkout
Regular price
$5,470.00
/ Each
Unit price
per
Product Specifications
Product Specifications
Brand:
Elettronica Todescato
Country of Origin:
Italy
Electrical:
115V
Item Length:
46.5cm
Item Width:
33.5cm
Item Height:
41.5cm
Model:
L160
Use:
Melt up to 25 gms
Safety, Compliance & Product Documentation
Safety, Compliance & Product Documentation
Technical Data Sheet
Product Description
The Todescato L160 is the top-of-line model in the Todescato range. Dual outlets support up to four torch stations at once, and at 160 L/hr it's built for high-volume production. Same operating principle as the L45 and L80 (KOH electrolyte and deionized water in the tank, methanol flux in the booster) scaled up for multi-operator use.
Features
- Clean, dry flame with no condensation or sputtering
- Dual outlet system supports up to 4 simultaneous torch stations
- Reaches 3,200°C suitable for platinum, gold, silver, and fine metals
- High output: 160 L/hr oxy-hydrogen gas production
- No gas cylinders or pressurized tanks needed!
- Extremely safe with push-pull ignition with visual status indicators
- Made in Italy, CE approved
Required Chemicals
Both are required to operate the L160.
Electrolyte (cell fluid) — choose one:
- Premixed: OKAI HF-8 (Item 8300833) — use 2.5 bottles for initial fill. Lasts approximately 1 year; top off with deionized water as the level drops.
- Mix your own: Dissolve 1,080g dry KOH in 2.6L deionized water (per Todescato L160 manual specifications).
Flux / Deoxidizer (booster) — choose one:
- Premixed: OKAI HF-9 (Item 8300834) fill booster tank per instruction manual.
- Mix your own: Combine 1 liter Methanol (Item 8300040) with 15–20 grams Boric Acid (Item 830456). This is the Todescato Code 131 formula and is equivalent to HF-9.
- Important Chemical Compatibility Do not use MEK in any Todescato system — MEK is an Aquaflame booster and is not compatible with Todescato hoses. Use only KOH-based electrolyte and methanol-based flux as described above.
| Specification | Details |
|---|---|
| Gas Production | 160 L/hr |
| Max Temperature | 3,200°C (5,792°F) — suitable for platinum |
| Machine Dimensions (W × D × H) | 18.3" x 13.1" x 16.33" |
| Weight | 99.2 lbs |
| Electrical | 115V, 1 Phase, 60 Hz |
| Torch Outlets | up to 4 (dual outlet configuration) |
| Origin | Italy, CE approved |
*Elettronica Todescato S.r.l.- as a good practice standard - recommends replacing the Components in their entirety no later than 3 years from the first testing at our facility (the reference date can be found in the "date" field of the quality control testing sheet provided with each product sold)
